Machine Information

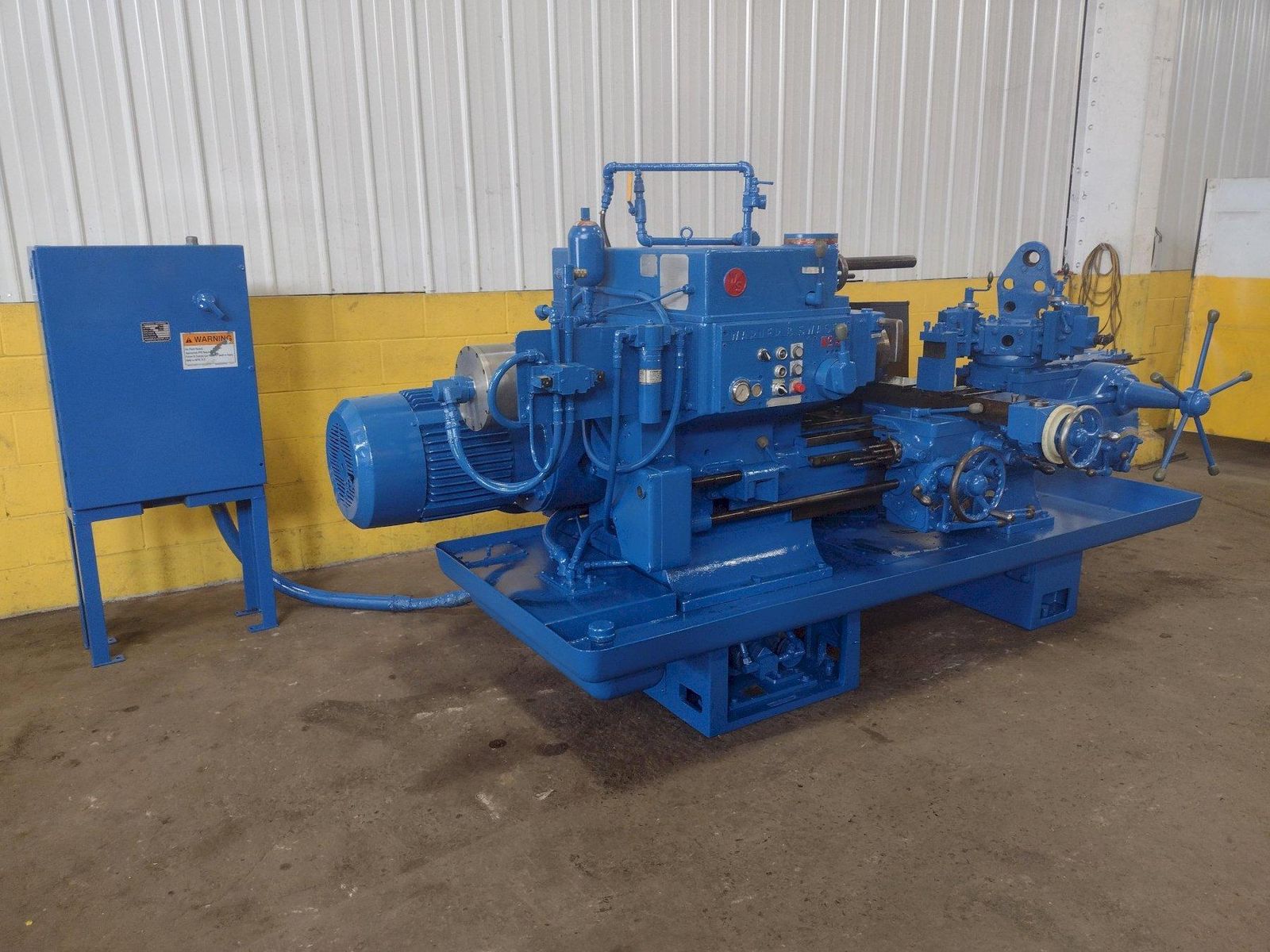

#5 WARNER & SWASEY MODEL #M2250 TURRET LATHE: STOCK #13152

Stock #: 13152

Equipped With

SERIAL ......................... 1928468

MODEL .......................... M2250
SQUARE HEAD .................... YES
SWING OVER WAYS ................ 20"
SWING OVER CROSS SLIDE ......... 10-1/4"
SPINDLE NOSE TO TURRET FACE .... 36"
SPINDLE SPEEDS ................. (24) 25 TO 1556 RPM
LONGITUDINAL AND TURRET FEEDS .. .005 TO .048 IPM
CROSS FEEDS .................... (6) .0045 TO .045 IPM
CROSS SLIDING TURRET FEEDS ..... (6) .005 TO .048 IPM
DIAMETER OF SPINDLE HOLE ....... 2-7/8"
COLLET CHUCK ................... YES
TOOL POST ...................... 4 WAY
COOLANT ........................ YES
SPINDLE DRIVE MOTOR ............ 20 HORSEPOWER
