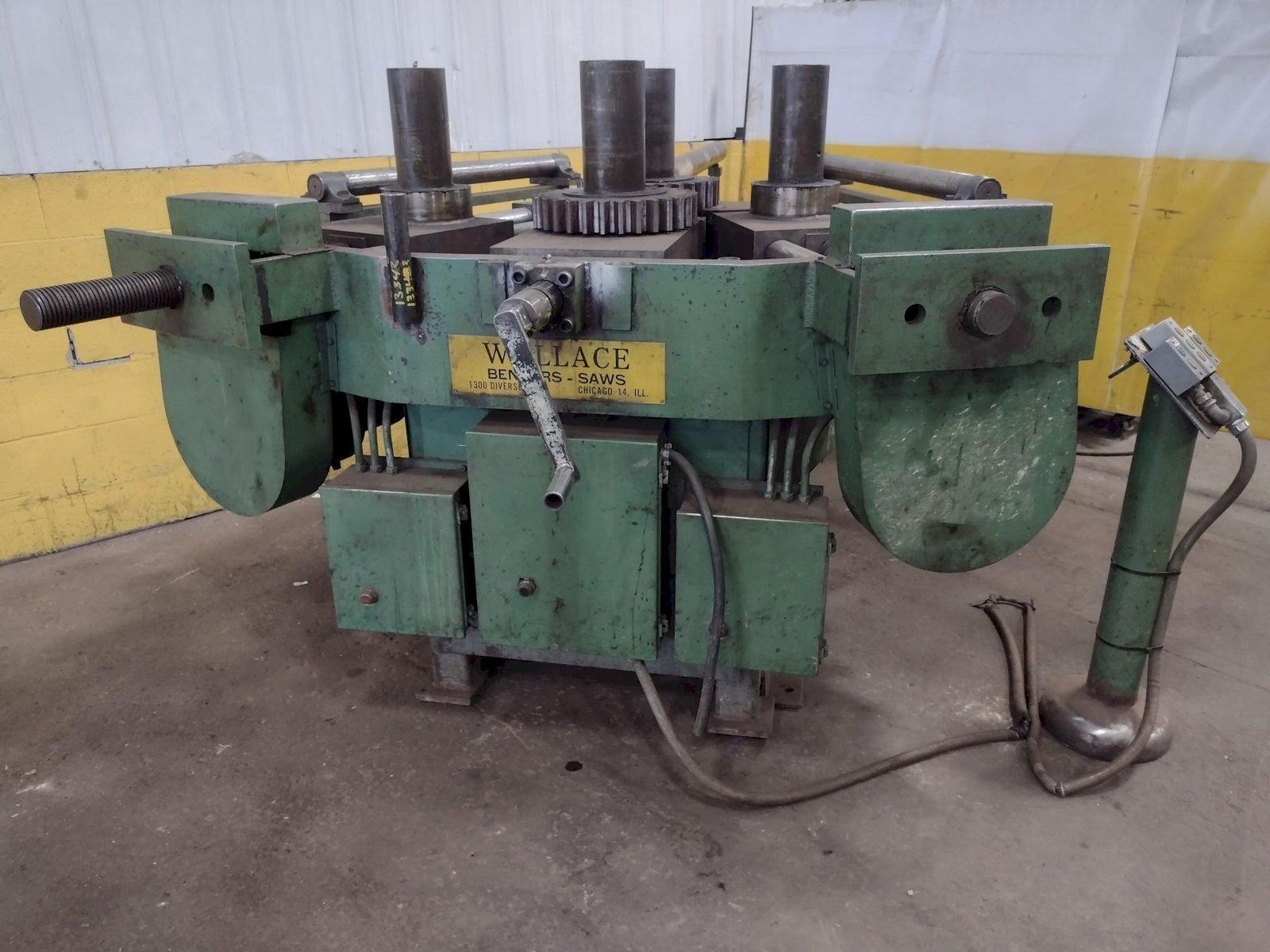

1/2" TO 8" WALLACE MODEL #464 4-ROLL HEAVY DUTY PIPE BENDING ROLL: STOCK #16848

Overview

SERIAL ....................... 1102187

MODEL ........................ 464

BENDING CAPACITY:

ROUND PIPE ................... 4-1/2" x .337" WALL

ROUND PIPE DIAMETER .......... 8" MAX
FLAT BAR ..................... 2" X 18"

ROLL STUB ARBOR DIAMETER ..... 6"
ROLL DIAMETER (MAX) .......... 15"
MAIN BENDING PINCH ROLLS ..... 2
SIDE ADJUSTABLE ROLLS ........ 2
MANUAL ROLL AJUSTMENT ........ YES, SCREW

ROLLING SPEED ................ 7-1/2 RPM (30 FPM)
RIGHT & LEFT HAND DIRECTION .. YES

PUSH BUTTON CONTROLS ......... YES

SIDE ROLLER GUIDES ........... YES

MOTOR (MAIN) ................. 20 HP
SIDE ROLL MOTOR ..............

TOOLING INCLUDED (NEED TO VERIFY)
PIPE DIAMETER:
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
2-1/2"
3" 3-1/2"
4"
6"
8"

SQUARE TUBING:
2" X 6" X 3/16" WALL (3 ROLLS)

Specifications
Weight	11100 pounds

1/2" TO 8" WALLACE MODEL #464 4-ROLL HEAVY DUTY PIPE BENDING ROLL: STOCK #16848

Brand
WALLACE

Type
Rolls, Angle Bending

Stock No.
16848
