SERIAL ........................ 02-064

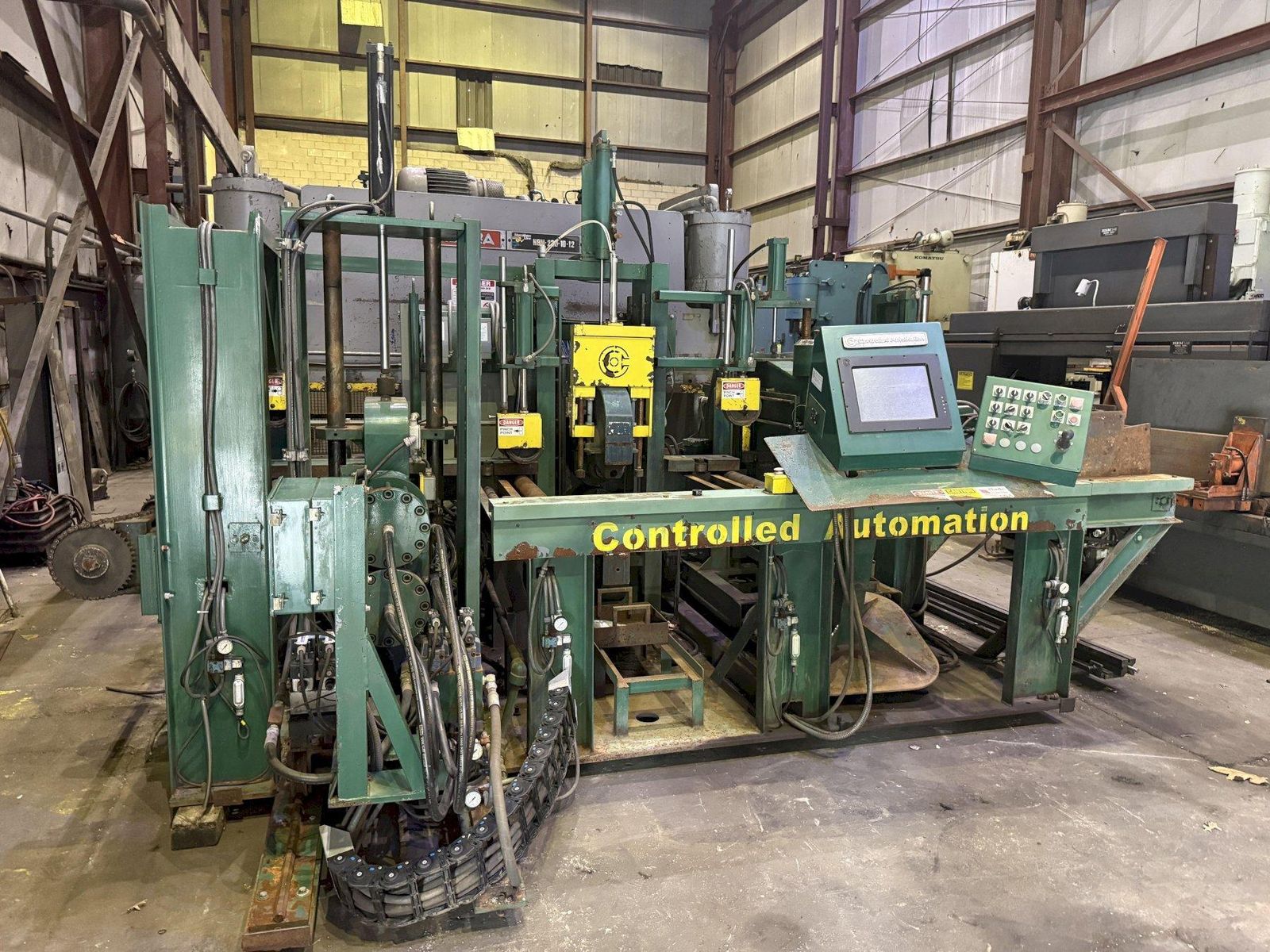

MODEL ......................... BEAMLINE RETRO
YEAR .......................... 2002
TOTAL NUMBER OF PUNCHES ....... 5
WEB PUNCHES ................... 1; 18" Throat
FLANGE PUNCHES ................ 4 (2 per side w/ top & bottom)
FLANGE PUNCHES ................ 2 Hit For Top & Bottom
FLAT WIDTH CAPACITY............ 4" to 36"
MATERIAL WEIGHT ............... 300 lbs/ft Max
FLANGE THICKNESS .............. 1-1/4″ Max (For 1" Hole)
PUNCH CAPACITY ................ 1-9/16″
POSITIONING ACCURACY .......... 1/32″ +/-
PINCH INCH/FEED ROLLS ......... POWERED/HORIZONTAL/VERTICAL
OPERATING SYSTEM .............. WINDOWS XP
EASILY NETWORKED .............. YES
NEW COMPUTER .................. 2018
NEW MOTOR & DRIVES ............ 2018
MATERIAL FLOW ................. R-L OR L-R
PUNCHES TOP & BOTTOM FLANGE ... YES
Fabricators realize that holes and slots being punched are up to 4 times faster than any drilled process as well as more economical. An automated beam punch line provides you with more value than a single-spindle drill by punching holes on all sides and automating material handling for practically the same cost as a single-spindle machine.
Brand
CONTROLLED AUTOMATION
Type
Punches, Beam Lines
Stock No.
15869
 |
419-269-2000 |
Stock #: 15869
SERIAL ........................ 02-064
MODEL ......................... BEAMLINE RETRO
YEAR .......................... 2002
TOTAL NUMBER OF PUNCHES ....... 5
WEB PUNCHES ................... 1; 18" Throat
FLANGE PUNCHES ................ 4 (2 per side w/ top & bottom)
FLANGE PUNCHES ................ 2 Hit For Top & Bottom
FLAT WIDTH CAPACITY............ 4" to 36"
MATERIAL WEIGHT ............... 300 lbs/ft Max
FLANGE THICKNESS .............. 1-1/4″ Max (For 1" Hole)
PUNCH CAPACITY ................ 1-9/16″
POSITIONING ACCURACY .......... 1/32″ +/-
PINCH INCH/FEED ROLLS ......... POWERED/HORIZONTAL/VERTICAL
OPERATING SYSTEM .............. WINDOWS XP
EASILY NETWORKED .............. YES
NEW COMPUTER .................. 2018
NEW MOTOR & DRIVES ............ 2018
MATERIAL FLOW ................. R-L OR L-R
PUNCHES TOP & BOTTOM FLANGE ... YES
Fabricators realize that holes and slots being punched are up to 4 times faster than any drilled process as well as more economical. An automated beam punch line provides you with more value than a single-spindle drill by punching holes on all sides and automating material handling for practically the same cost as a single-spindle machine.
