Machine Information

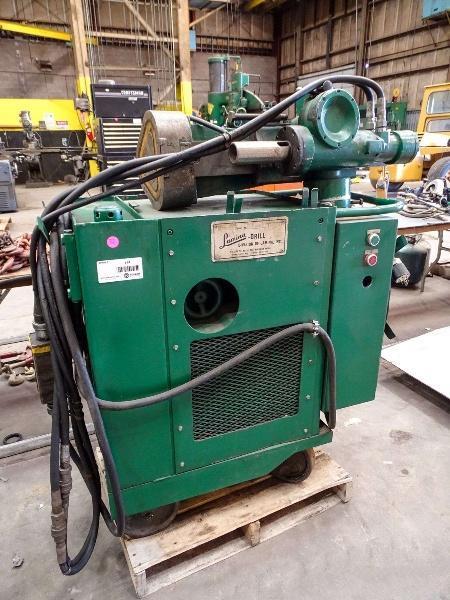

#5 MT LAMINA PORTABLE MAGNETIC HYDRAULIC DRILL WITH LAMINA POWER UNIT: STOCK #14850

Stock #: 14850

Equipped With

SERIAL ...................... P1248
HEAD SERIAL ................. D200R
DRILLING CAPACITY ........... 2"
STEP DRILLING CAPACITY ...... 4"
TAPPING CAPACITY ............ 6" MAXIMUM
SPINDLE SPEEDS (VARIABLE) ... 154 RPM
AUTOMATIC POWER FEED ........ .005 IPR
STROKE OF HEAD .............. 18"
TAPER IN SPINDLE ............ #5 MT
TORQUE ...................... 3397 IN LBS
MAGNETIC CAPACITY ........... 6000 LBS
DRILL HEAD .................. 8.30 HORSEPOWER

Buy Machines

#5 MT LAMINA PORTABLE MAGNETIC HYDRAULIC DRILL WITH LAMINA POWER UNIT: STOCK #14850

Stock # 14850

Share Machine
Print Details

Machine Specifications

SERIAL ...................... P1248
HEAD SERIAL ................. D200R

DRILLING CAPACITY ........... 2"
STEP DRILLING CAPACITY ...... 4"
TAPPING CAPACITY ............ 6" MAXIMUM
SPINDLE SPEEDS (VARIABLE) ... 154 RPM
AUTOMATIC POWER FEED ........ .005 IPR
STROKE OF HEAD .............. 18"
TAPER IN SPINDLE ............ #5 MT
TORQUE ...................... 3397 IN LBS
MAGNETIC CAPACITY ........... 6000 LBS
DRILL HEAD .................. 8.30 HORSEPOWER
