Machine Information

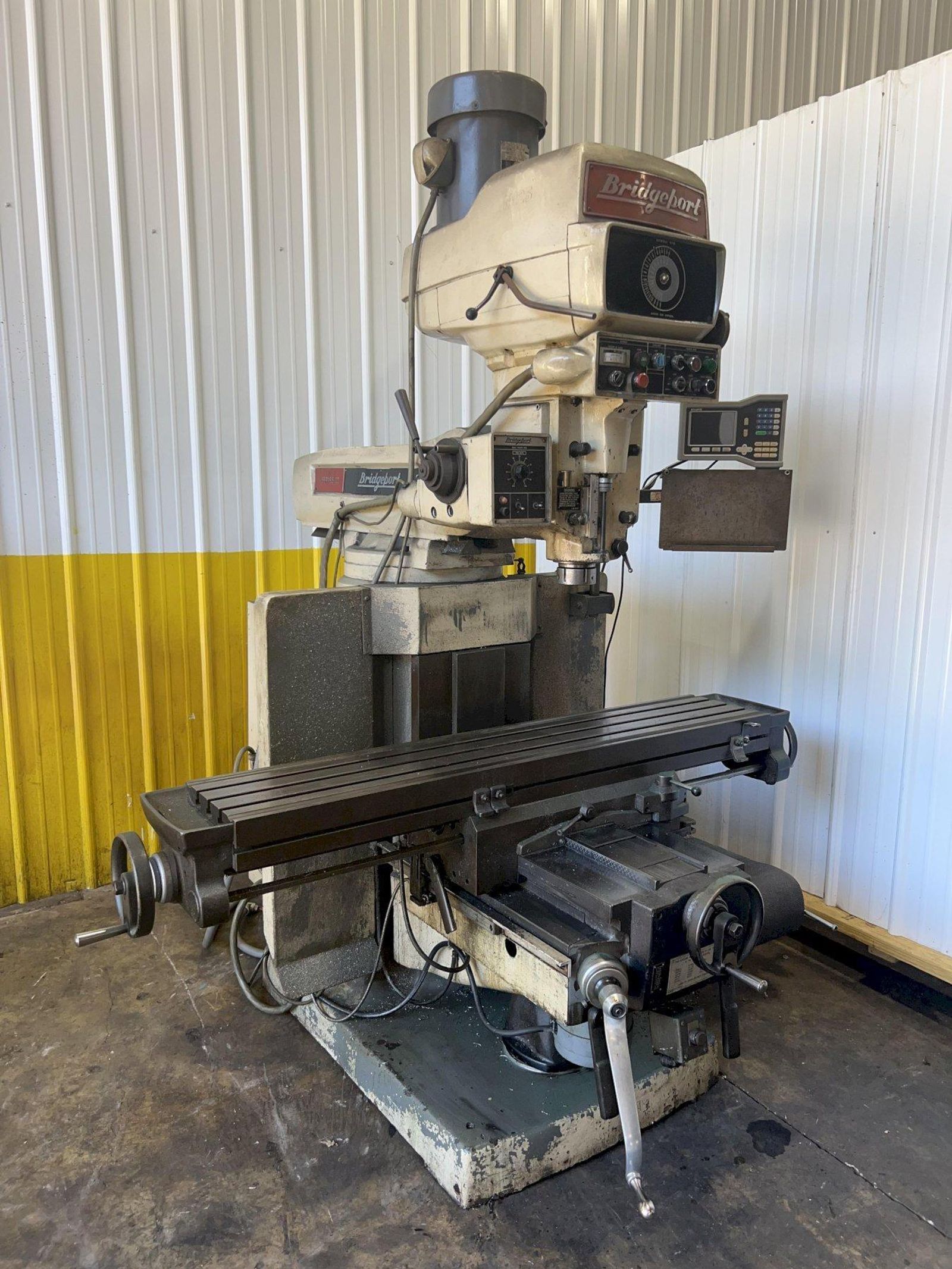

4 HP BRIDGEPORT SERIES II VERTICAL KNEE MILL: STOCK 17094

Stock #: 17094

Equipped With

SERIAL ............................. 7098
SERIES ............................. II
AREA OF TABLE ...................... 58" X 11"
SPINDLE SPEEDS ..................... 50 TO 3500 RPM (VARIABLE)
POWER LONGITUDINAL FEED ............ 3/4 TO 24 IPM
POWER CROSS FEED ................... 3/4 TO 24 IPM
LONGITUDINAL TRAVEL ................ 30"
CROSS TRAVEL ....................... 15"
VERTICAL TRAVEL OF KNEE ............ 16"
QUILL TRAVEL ....................... 5"
POWER QUILL TRAVEL ................. YES
2 AXIS DIGITAL REDOUTS ............. ACU RITE
HORIZONTAL TRAVEL OF RAM ON BASE ... 16"
DEPTH OF THROAT .................... 2" MINIMUM / 25" MAXIMUM
SPINDLE TO TOP OF TABLE ............ 10" MINIMUM / 24" MAXIMUM
TAPER IN SPINDLE ................... #40 QUICK CHANGE
SPINDLE MOTOR ...................... 4 HORSEPOWER

4 HP BRIDGEPORT SERIES II VERTICAL KNEE MILL: STOCK 17094

Stock # 17094

Request a Quote

Share Machine

Print Details

Make an Offer




























Download Images

View All Images

Machine Specifications

SERIAL ............................. 7098

SERIES ............................. II

AREA OF TABLE ...................... 58" X 11"

SPINDLE SPEEDS ..................... 50 TO 3500 RPM (VARIABLE)

POWER LONGITUDINAL FEED ............ 3/4 TO 24 IPM

POWER CROSS FEED ................... 3/4 TO 24 IPM

LONGITUDINAL TRAVEL ................ 30"

CROSS TRAVEL ....................... 15"

VERTICAL TRAVEL OF KNEE ............ 16"

QUILL TRAVEL ....................... 5"

POWER QUILL TRAVEL ................. YES

2 AXIS DIGITAL REDOUTS ............. ACU RITE

HORIZONTAL TRAVEL OF RAM ON BASE ... 16"

DEPTH OF THROAT .................... 2" MINIMUM / 25" MAXIMUM

SPINDLE TO TOP OF TABLE ............ 10" MINIMUM / 24" MAXIMUM

TAPER IN SPINDLE ................... #40 QUICK CHANGE

SPINDLE MOTOR ...................... 4 HORSEPOWER
