SERIAL ........................ 1440-79
MODEL ......................... 5
| Specifications | ||
|---|---|---|
| Dimensions | 125"W x 64"D x 58"H | |
| Weight | 7150 pounds | |

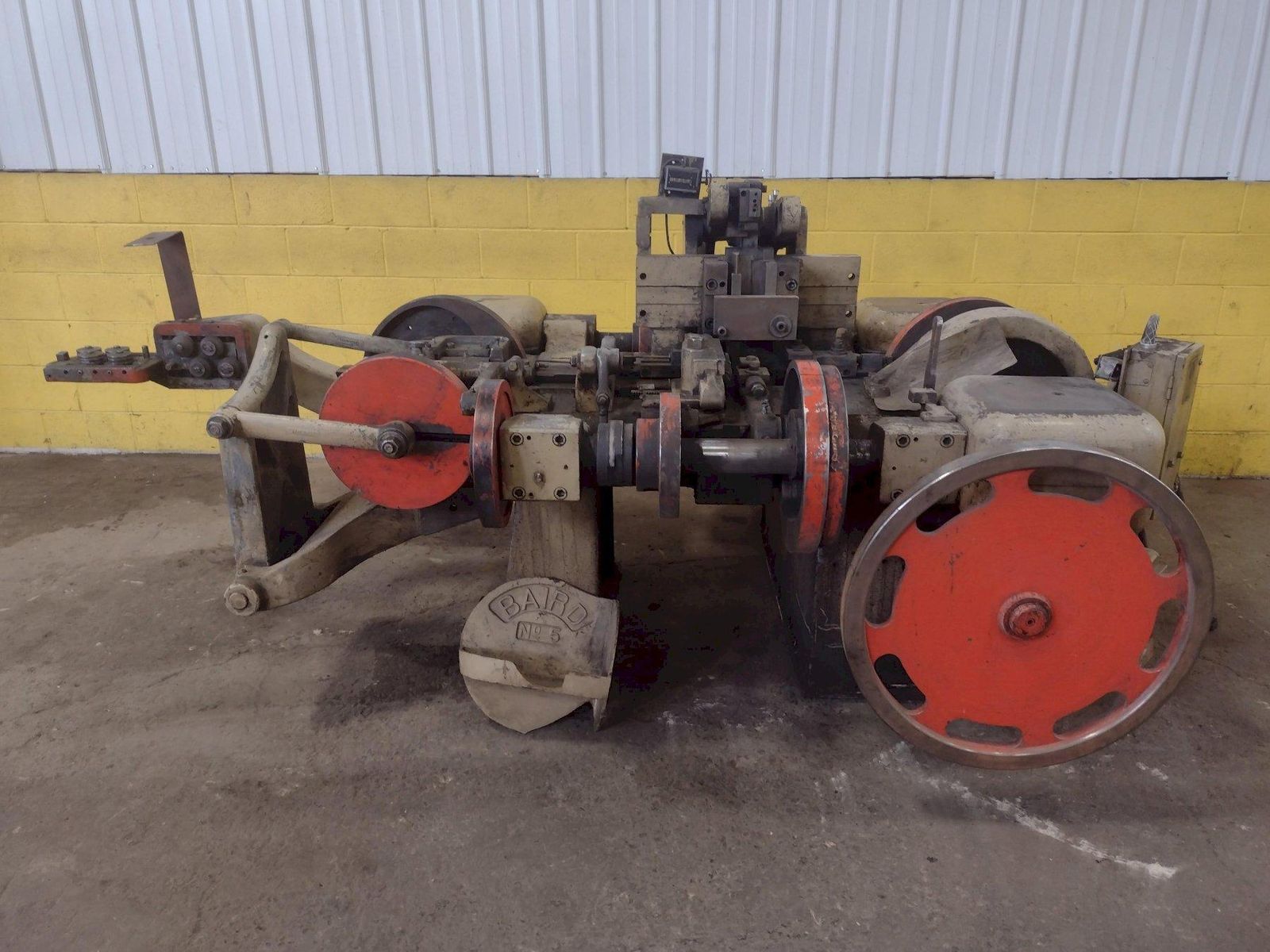

Brand
U.S. BAIRD
Type
Wire Forming (and Four Slides)
Stock No.
15593
 |
419-269-2000 |
Stock #: 15593
SERIAL ........................ 1440-79
MODEL ......................... 5
WIRE DIAMETER ................. 5/16" MILD STEELSTRIP WIDTH ................... 1-3/8"FEED LENGTH, W/ SLIDE STOPS ... 15"FEED LENGTH, NO SLIDE STOPS ... 16-1/2"PIECES PER MINUTE ............. 37 TO 112BED OPENING ................... 9-1/2 x 6-1/2FRONT CAM STROKE .............. 2"BACK CAM STROKE ............... 1-3/4"SIDE CAMS STROKE .............. 3"VARIABLE SPEED MOTOR .......... 5 HP ACSingle GibbingPress AttachmentClosed GearsSplit CamsMechanical ClutchKing Post and Stripper
