Machine Information

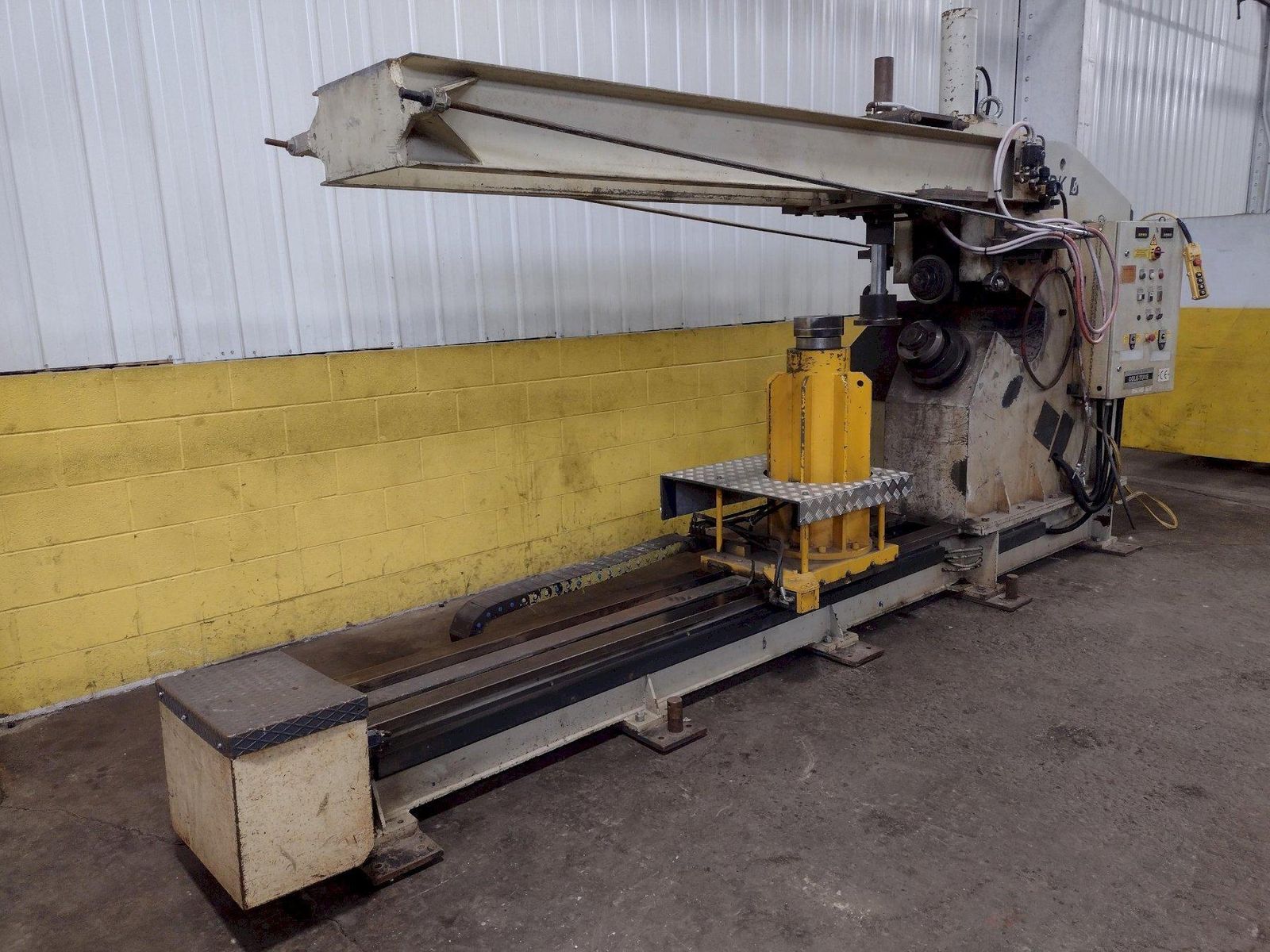

5/16" X 177" COLE-TUVE MODEL #SDK-8 COMBINATION FLANGER & CIRCLE SHEAR MACHINE: STOCK #17855

Stock #: 17855

Equipped With

SERIAL ......................... 110151
YEAR NEW ....................... 2010
MODEL .......................... SDK-8
CAPACITY (MILD STEEL) .......... 5/16" MILD STEEL
CAPACITY (STAINLESS STEEL) ..... 3/16"
PLATE DIAMETER ................. 2-3/8" MIN TO 177" MAX
FLANGING LENGTH ................ 5.91'" @ RADIUS OF 100
FLANGING LENGTH ................ 7.48" @ RADIUS OF 25
FLANGING RADIUS ................ 3.94" MAX
PLATE ROTATION SPEED ........... 1.15 TO 2.25 F/SEC
ROTATION DIRECTION ............. FORWARD & REVERSE
ADJUSTMENT OF FLANGE ROLL ...... HYDRAULIC
ROLLS INDEPENDANTL POWERED ..... YES, HYDRAULIC MOTORS
ROLLS POSITION READOUTS ........ YES, DIGITAL
POWERED BOTTOM PLATE CARRIER ... YES
PNEUMATIC CENTER HOLD DOWN ..... YES
ELECTRICAL CONTROLS ............ YES
MAIN DRIVE MOTOR ............... 14.5 HP

Buy Machines

5/16" X 177" COLE-TUVE MODEL #SDK-8 COMBINATION FLANGER & CIRCLE SHEAR MACHINE: STOCK #17855

Stock # 17855

Share Machine
Print Details

Machine Specifications

SERIAL ......................... 110151
YEAR NEW ....................... 2010
MODEL .......................... SDK-8
CAPACITY (MILD STEEL) .......... 5/16" MILD STEEL
CAPACITY (STAINLESS STEEL) ..... 3/16"
PLATE DIAMETER ................. 2-3/8" MIN TO 177" MAX
FLANGING LENGTH ................ 5.91'" @ RADIUS OF 100
FLANGING LENGTH ................ 7.48" @ RADIUS OF 25
FLANGING RADIUS ................ 3.94" MAX
PLATE ROTATION SPEED ........... 1.15 TO 2.25 F/SEC
ROTATION DIRECTION ............. FORWARD & REVERSE
ADJUSTMENT OF FLANGE ROLL ...... HYDRAULIC
ROLLS INDEPENDANTL POWERED ..... YES, HYDRAULIC MOTORS
ROLLS POSITION READOUTS ........ YES, DIGITAL
POWERED BOTTOM PLATE CARRIER ... YES
PNEUMATIC CENTER HOLD DOWN ..... YES
ELECTRICAL CONTROLS ............ YES
MAIN DRIVE MOTOR ............... 14.5 HP

Specifications
Dimensions 182" X 50" X 107" HIGH
Weight 9800 pounds
