Machine Information

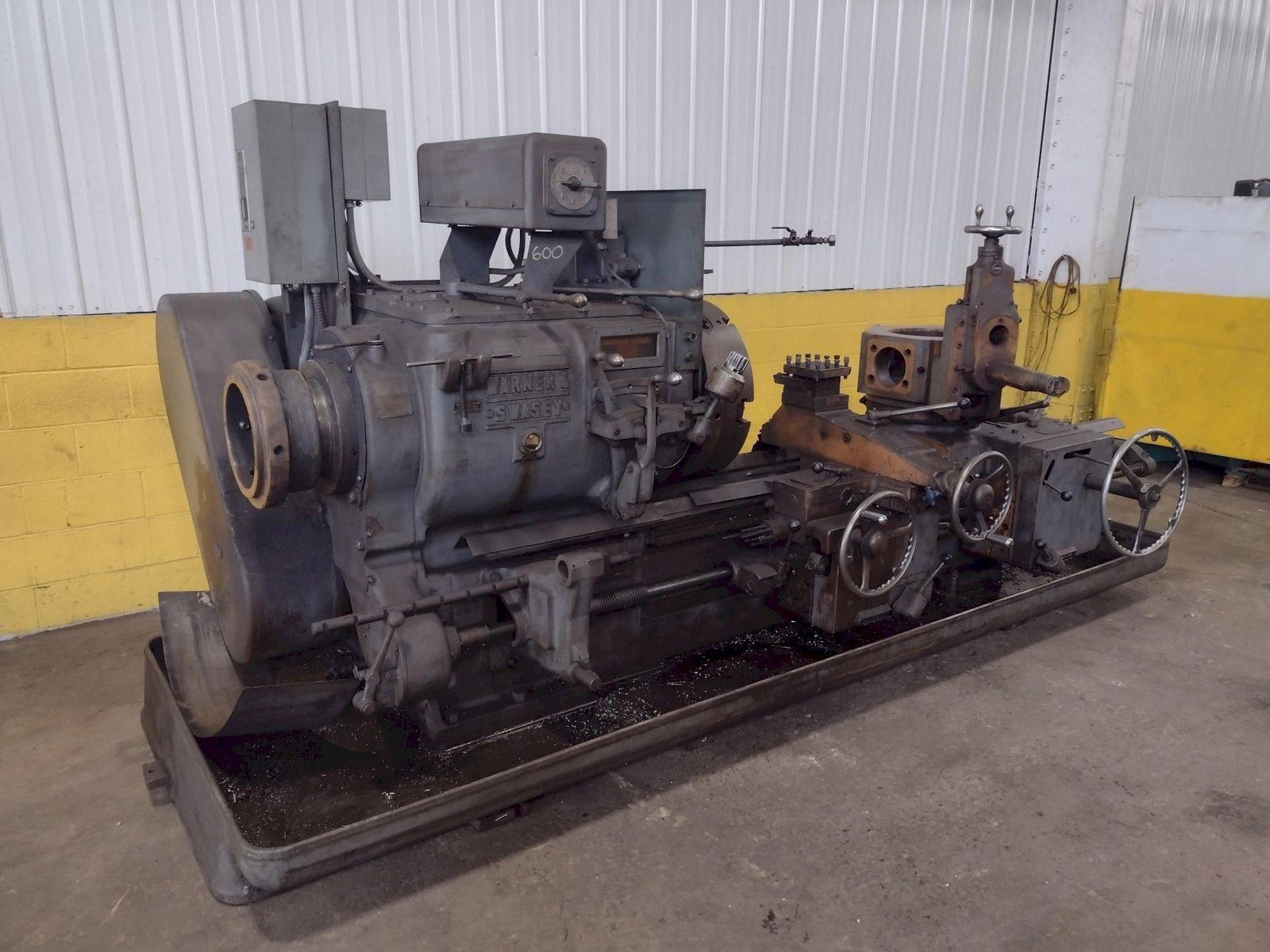

#4A WARNER & SWASEY TURRET LATHE: STOCK 15147

Stock #: 15147

Equipped With

SERIAL ............................. 636616W
MODEL .............................. M-1500 4A
SWING OVER WAYS .................... 29-1/2"
SWING OVER CARRIAGE ................ 22-7/16"
DISTANCE SPINDLE TO TURRET FACE .... 68-3/8"
SPINDLE SPEEDS ..................... (12) 8 TO 212 RPM
TURRET FEEDS ....................... (16) .006 TO .167 IPR
LONGITUDINAL FEEDS ................. (16) .005 TO .167 IPR
CROSS FEEDS ........................ (16) .003 TO .103 IPR
CROSS TRAVEL ....................... 17"
POWER CHUCK WRENCH ................. YES
DIAMETER OF SPINDLE HOLE ........... 8-1/2"
CHIP PAN WITH COOLANT .............. YES
RAPID TRAVERSE ..................... YES
MOTOR .............................. 25 HP

Buy Machines

#4A WARNER & SWASEY TURRET LATHE: STOCK 15147

Stock # 15147

Share Machine
Print Details

Machine Specifications

SERIAL ............................. 636616W
MODEL .............................. M-1500 4A

SWING OVER WAYS .................... 29-1/2"
SWING OVER CARRIAGE ................ 22-7/16"
DISTANCE SPINDLE TO TURRET FACE .... 68-3/8"
SPINDLE SPEEDS ..................... (12) 8 TO 212 RPM
TURRET FEEDS ....................... (16) .006 TO .167 IPR
LONGITUDINAL FEEDS ................. (16) .005 TO .167 IPR
CROSS FEEDS ........................ (16) .003 TO .103 IPR
CROSS TRAVEL ....................... 17"
POWER CHUCK WRENCH ................. YES
DIAMETER OF SPINDLE HOLE ........... 8-1/2"
CHIP PAN WITH COOLANT .............. YES
RAPID TRAVERSE ..................... YES
MOTOR .............................. 25 HP
