Machine Information

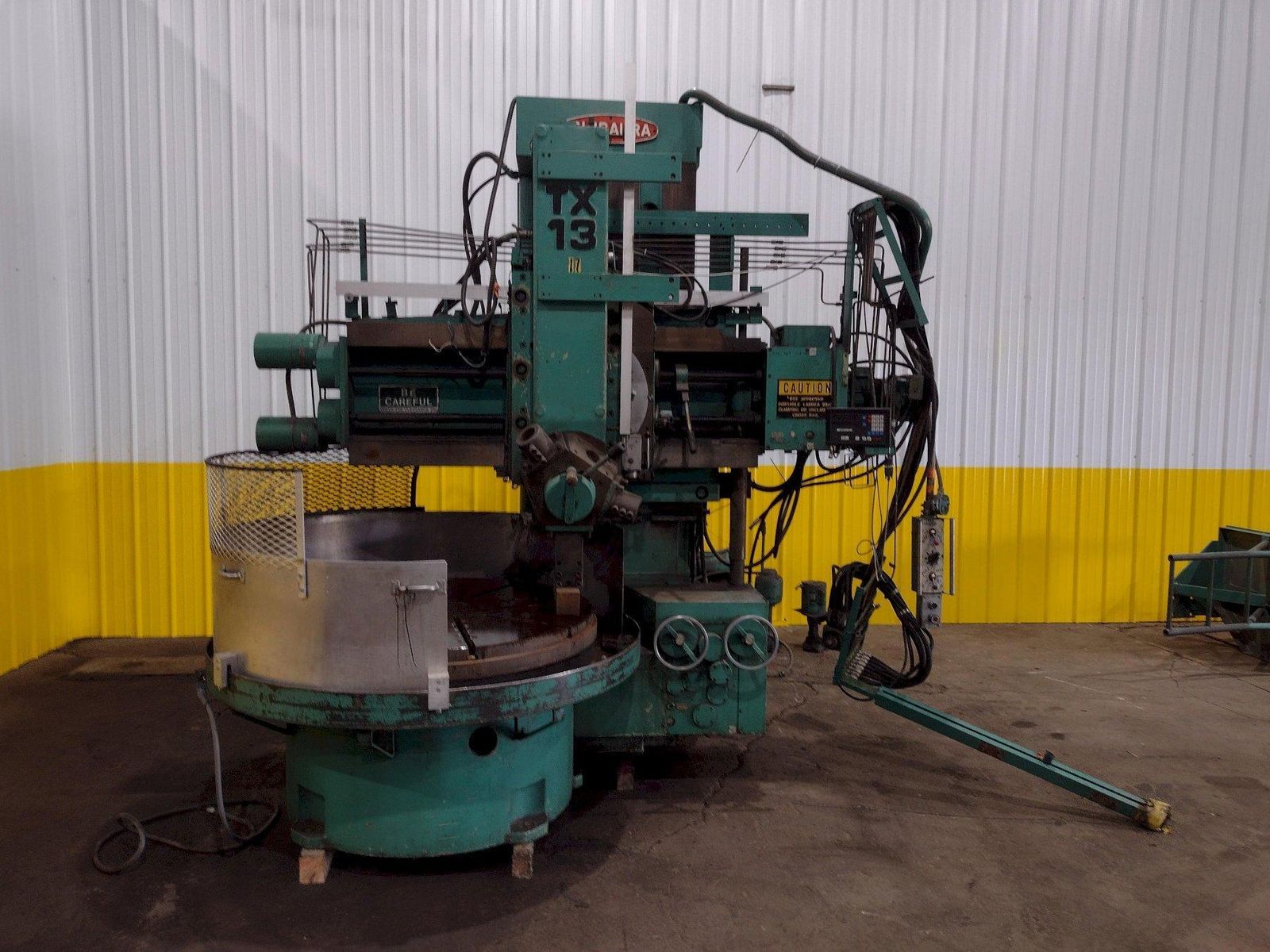

49" TOSHIBA SHIBAURA MODEL #TX13 VERTICAL TURRET LATHE - VTL: STOCK #18769

Stock #: 18769

Equipped With

Serial ................... 320220
Model .................... TX-13
Table Diameter ........... 49.2"
Maximum Swing ............ 63"
Maximum Turning Height ... 41.3"
Travel of Head on Rail ... 3.9" to 31.5" Horizontal
Travel of Turret Ram ..... 29.5" Vertical
Swivel Angle Rail Head ... +/- 30 Degrees
Travel of Cross Rail ..... 23.6" Vertical
Table Load Capacity ...... 11,000 Lbs. Max
Table Torque ............. 11,600 Ft./Lbs. Max
Table Speeds ............. (12) 4.5 to 200 RPM
Feed Rates ............... (12) .003 to .140 Inch/Rev.
Rail Head Rapid .......... 125 IPM
Speed of Cross Rail ...... 16.1 IPM
Turret Positions ......... 5
Pendant Control .......... Yes
Digital Readouts ......... Yes
Main Motor ............... 30 HP
