Machine Information

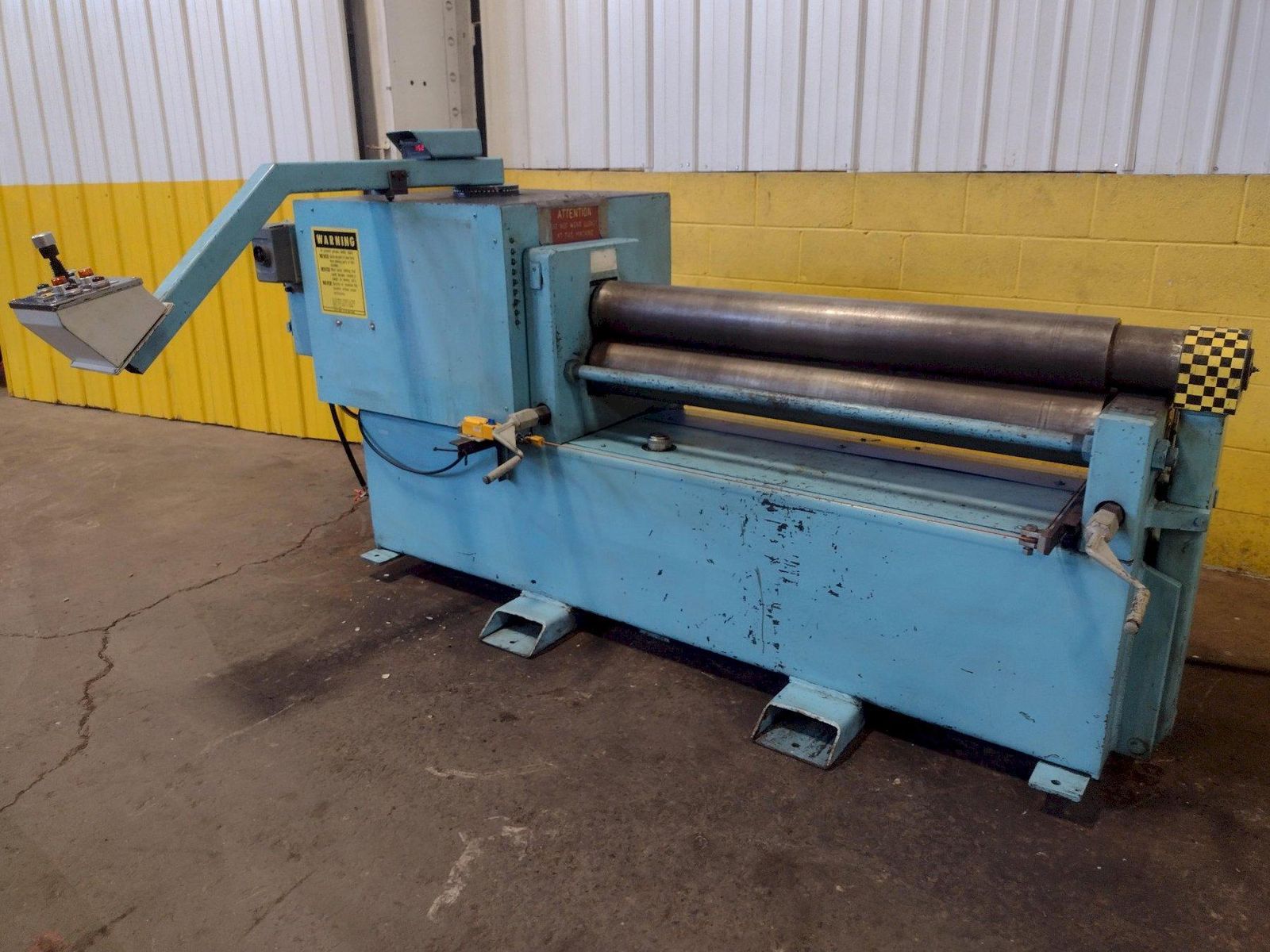

48" x 1/4" MONTGOMERY MODEL #4825-H HYDRAULIC PLATE BENDING ROLLS: STOCK #17203

Stock #: 17203

Equipped With

SERIAL ................. 0425413
MODEL .................. 4825-H
CAPACITY ............... 1/4"
LENGTH OF ROLLS ........ 50"
DIAMETER OF ROLLS ...... 6"
FORMING DIAMETER ....... 8.5" MINIMUM
ROLLING SPEED .......... 4.67 RPM
FORWARD & REVERSE ...... YES
PASSLINE ............... 30"
POWER ADJUSTMENT ROLL .. YES
PENDANT CONTROLS ....... YES
E-STOP BUTTON .......... YES
MOTOR .................. 7.5 HP

Buy Machines

48" x 1/4" MONTGOMERY MODEL #4825-H HYDRAULIC PLATE BENDING ROLLS: STOCK #17203

Stock # 17203

Request a Quote
Share Machine
Print Details
Make an Offer
Download Images
View All Images

Machine Specifications

SERIAL ................. 0425413
MODEL .................. 4825-H
CAPACITY ............... 1/4"
LENGTH OF ROLLS ........ 50"
DIAMETER OF ROLLS ...... 6"
FORMING DIAMETER ....... 8.5" MINIMUM
ROLLING SPEED .......... 4.67 RPM
FORWARD & REVERSE ...... YES
PASSLINE ............... 30"
POWER ADJUSTMENT ROLL .. YES
PENDANT CONTROLS ....... YES
E-STOP BUTTON .......... YES
MOTOR .................. 7.5 HP

Videos
Specifications
Dimensions 106 X 38 X 50" HIGH
Weight 4500 pounds
