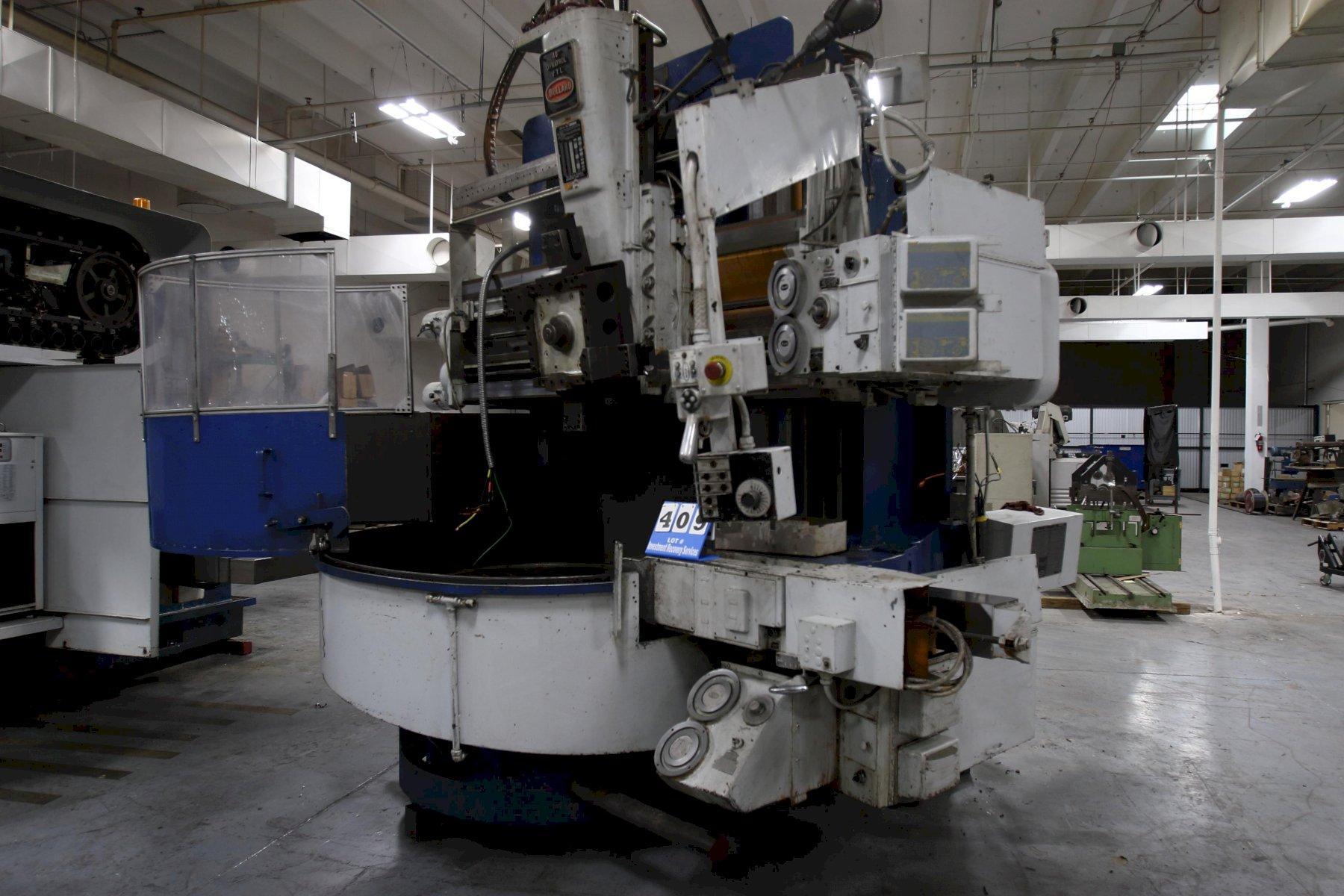

46" BULLARD DYNATROL VERTICAL TURRET LATHE: STOCK 12034

Stock #: 12034

Equipped With


SERIAL ........................... 31847
MODEL ............................ 46" DYNATROL
YEAR ............................. 1965
TABLE DIAMETER ................... 46" 4-JAW CHUCK
MAXIMUM SWING .................... 49" W/SIDE HEAD IN WORKING POSITION
MAXIMUM SWING .................... 58" W/SIDE HEAD BELOW TABLE TOP
HEIGHT UNDER RAIL ................ 40"
RAIL ADJUSTMENT .................. 30"
TABLE SPEEDS ..................... (20) 6.83 TO 250 RPM
FEEDS: ........................... .001" TO .250" PER/REV
VERTICAL TRAVEL OF TURRET ........ 26" VERTICAL
TURRET TRAVEL ON RAIL ............ RIGHT 31" & LEFT 34-1/2"
TURRET SWIVEL .................... 30 DEGREES, RIGHT OR LEFT
SIDE HEAD TRAVELS ................ 38-3/4" VERTICAL & 23-3/4" HORIZONTAL
5-POSITION TURRET HEAD ON RAIL ... YES
EQUIPPED WITH TDA (THREAD CUTTING, DRUM SCORING, ANGLE TURNING)
4-POSITION TOOL POST ON SIDE HEAD. YES
RAPID TRAVERSE ALL DIRECTIONS .... YES
AUTOMATIC LUBRICATION ............ YES
MOTOR ............................ 10 HORSEPOWER

Buy Machines

46" BULLARD DYNATROL VERTICAL TURRET LATHE: STOCK 12034

Stock # 12034

Share Machine
Print Details
Download Images

Machine Specifications


SERIAL ........................... 31847
MODEL ............................ 46" DYNATROL
YEAR ............................. 1965
TABLE DIAMETER ................... 46" 4-JAW CHUCK
MAXIMUM SWING .................... 49" W/SIDE HEAD IN WORKING POSITION
MAXIMUM SWING .................... 58" W/SIDE HEAD BELOW TABLE TOP
HEIGHT UNDER RAIL ................ 40"
RAIL ADJUSTMENT .................. 30"
TABLE SPEEDS ..................... (20) 6.83 TO 250 RPM
FEEDS: ........................... .001" TO .250" PER/REV
VERTICAL TRAVEL OF TURRET ........ 26" VERTICAL
TURRET TRAVEL ON RAIL ............ RIGHT 31" & LEFT 34-1/2"
TURRET SWIVEL .................... 30 DEGREES, RIGHT OR LEFT
SIDE HEAD TRAVELS ................ 38-3/4" VERTICAL & 23-3/4" HORIZONTAL
5-POSITION TURRET HEAD ON RAIL ... YES
EQUIPPED WITH TDA (THREAD CUTTING, DRUM SCORING, ANGLE TURNING)
4-POSITION TOOL POST ON SIDE HEAD. YES
RAPID TRAVERSE ALL DIRECTIONS .... YES
AUTOMATIC LUBRICATION ............ YES
MOTOR ............................ 10 HORSEPOWER

Specifications
Table Dia 46 inches
Swing 58 inches
Work Ht-U/R 40 inches
Power 10 horsepower
RPM 250
CNC Control no
Weight 42000 pounds
