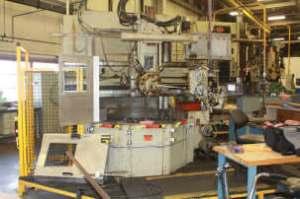

46" BULLARD DYNATROL VERTICAL TURRET LATHE: STOCK #10171

Stock #: 10171

Equipped With

SERIAL ..................................... 32249
Swing With Side Head Above Table ........... 49"
Swing With Side Head Below Table ........... 58"
Height Under Cross Rail .................... 40"
Vertical Travel of Cross Rail .............. 30"
Max Height Under Turret Face ............... 50 3/8"
Vertical Travel of Turret Head ............. 26"
Horizontal Travel of Turret Head ........... 65 ½"
Turret Head Tool-Post Holes ................ 2 3/4"
Max Height Top of Side Head Ram to Table ... 36 1/4"
Vertical Travel of Side Head ............... 38 3/4"
Horizontal Travel of Side Head ............. 23 3/4"
Built in 4-Jaw chuck Table ................. 46" Dia
SPEEDS ..................................... (20) 5.1-187 RPM
(16) FEEDS MECHANICALLY GEARED ............. .0006"-.125" IPR
HEADS:
5-SIDED HAND INDEXING SWIVELING (30E) TURRET HEAD
4-SIDED HAND INDEXING SIDE HEAD
EQUIPPED WITH:
50HP Main Drive
5HP Rail Elevation Motor
Automatic Lubrication - Bijur
Unified "Pistol Grip" Remote Control for each Head
Mechanically Geared Feed Boxes with Rapid Traverse
Handwheels for Turret and Sidehead Feed Brackets
Scan-O-Matic Hydraulic Tracer on Turret Head
Anilam "Miniwizard" DRO on Turret Head
Hardened & Ground Ways on Cross Rail, Column, Turret Swivel

Buy Machines

46" BULLARD DYNATROL VERTICAL TURRET LATHE: STOCK #10171

Stock # 10171

Share Machine
Print Details
Download Images

Machine Specifications

SERIAL ..................................... 32249
Swing With Side Head Above Table ........... 49"
Swing With Side Head Below Table ........... 58"
Height Under Cross Rail .................... 40"
Vertical Travel of Cross Rail .............. 30"
Max Height Under Turret Face ............... 50 3/8"
Vertical Travel of Turret Head ............. 26"
Horizontal Travel of Turret Head ........... 65 ½"
Turret Head Tool-Post Holes ................ 2 3/4"
Max Height Top of Side Head Ram to Table ... 36 1/4"
Vertical Travel of Side Head ............... 38 3/4"
Horizontal Travel of Side Head ............. 23 3/4"
Built in 4-Jaw chuck Table ................. 46" Dia
SPEEDS ..................................... (20) 5.1-187 RPM
(16) FEEDS MECHANICALLY GEARED ............. .0006"-.125" IPR
HEADS:
5-SIDED HAND INDEXING SWIVELING (30E) TURRET HEAD
4-SIDED HAND INDEXING SIDE HEAD
EQUIPPED WITH:
50HP Main Drive
5HP Rail Elevation Motor
Automatic Lubrication - Bijur
Unified "Pistol Grip" Remote Control for each Head
Mechanically Geared Feed Boxes with Rapid Traverse
Handwheels for Turret and Sidehead Feed Brackets
Scan-O-Matic Hydraulic Tracer on Turret Head
Anilam "Miniwizard" DRO on Turret Head
Hardened & Ground Ways on Cross Rail, Column, Turret Swivel

Specifications
Swing 58 inches
