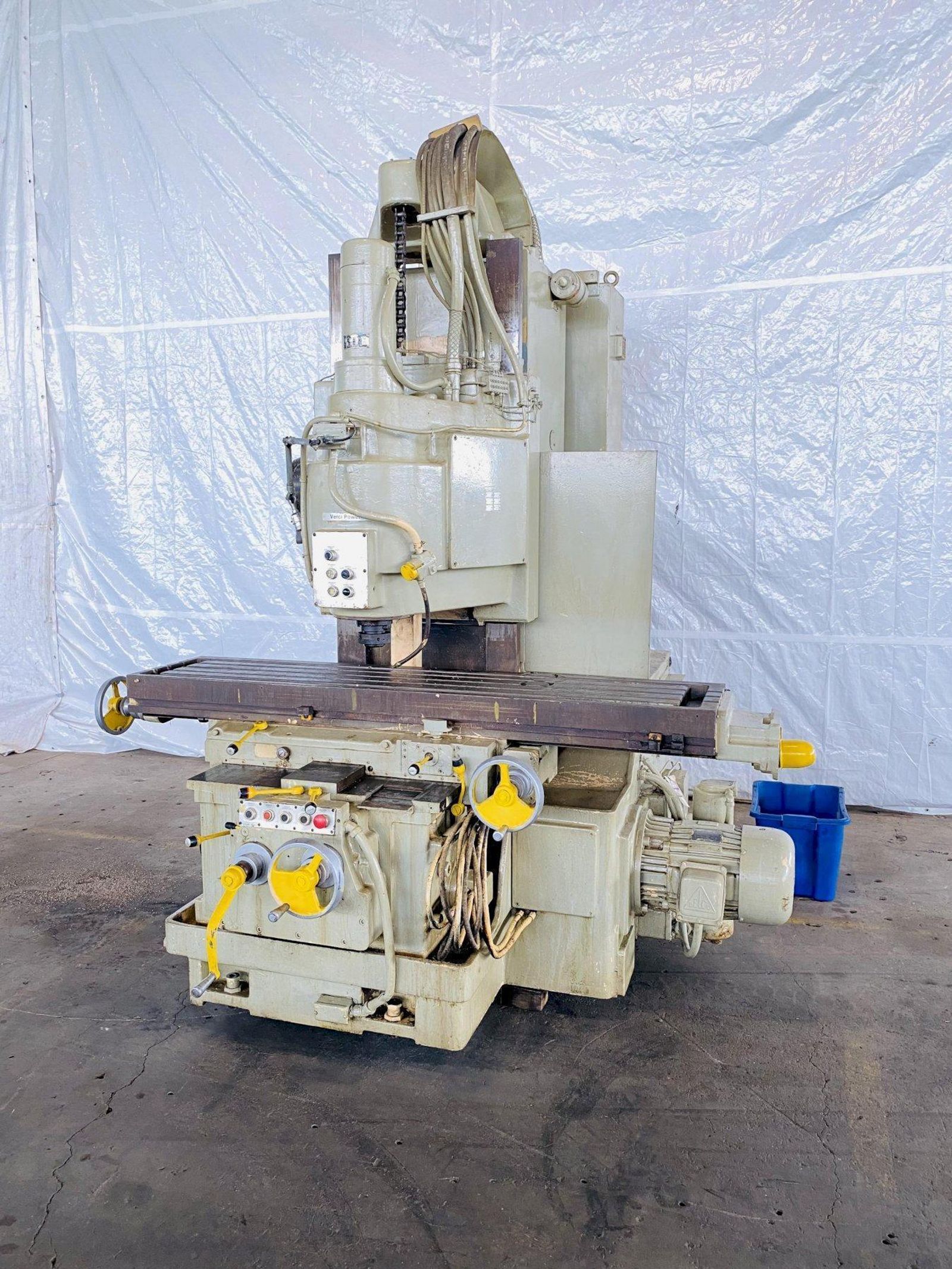

420-18 CINCINNATI VERCIPOWER VERTICAL MILL: STOCK 14810

Stock #: 14810

Equipped With

SERIAL ................................. 31104V77-0001
MODEL .................................. 420-18
AREA OF TABLE .......................... 80" X 18"
SPINDLE SPEEDS ......................... (24) 16 TO 1600 RPM
LONGITUDINAL & CROSS FEEDS ............. (32) 3/8 TO 90 IPM
VERTICAL KNEE FEEDS .................... (32) 3/32 TO 22 IPM
VERTICAL HEAD FEEDS .................... (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL .................... 42"
CROSS TRAVEL ........................... 16"
VERTICAL KNEE TRAVEL ................... 16"
VERTICAL HEAD TRAVEL ................... 7"
TOP OF TABLE TO FACE OF SPINDLE ........ 0" MIN, 22-1/2" MAX
TAPER IN SPINDLE ....................... #50 NS
RAPID TRAVERSE ......................... 150 IPM
DUAL CONTROLS .......................... YES
COOLANT ................................ YES
SPINDLE MOTOR .......................... 20 HORSEPOWER
FEED MOTOR ............................. 5

Buy Machines

420-18 CINCINNATI VERCIPOWER VERTICAL MILL: STOCK 14810

Stock # 14810

Share Machine
Print Details

Machine Specifications

SERIAL ................................. 31104V77-0001
MODEL .................................. 420-18
AREA OF TABLE .......................... 80" X 18"
SPINDLE SPEEDS ......................... (24) 16 TO 1600 RPM
LONGITUDINAL & CROSS FEEDS ............. (32) 3/8 TO 90 IPM
VERTICAL KNEE FEEDS .................... (32) 3/32 TO 22 IPM
VERTICAL HEAD FEEDS .................... (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL .................... 42"
CROSS TRAVEL ........................... 16"
VERTICAL KNEE TRAVEL ................... 16"
VERTICAL HEAD TRAVEL ................... 7"
TOP OF TABLE TO FACE OF SPINDLE ........ 0" MIN, 22-1/2" MAX
TAPER IN SPINDLE ....................... #50 NS
RAPID TRAVERSE ......................... 150 IPM
DUAL CONTROLS .......................... YES
COOLANT ................................ YES
SPINDLE MOTOR .......................... 20 HORSEPOWER
FEED MOTOR ............................. 5
