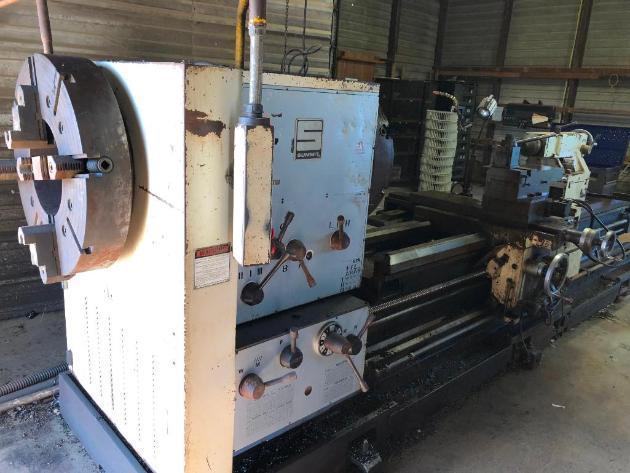

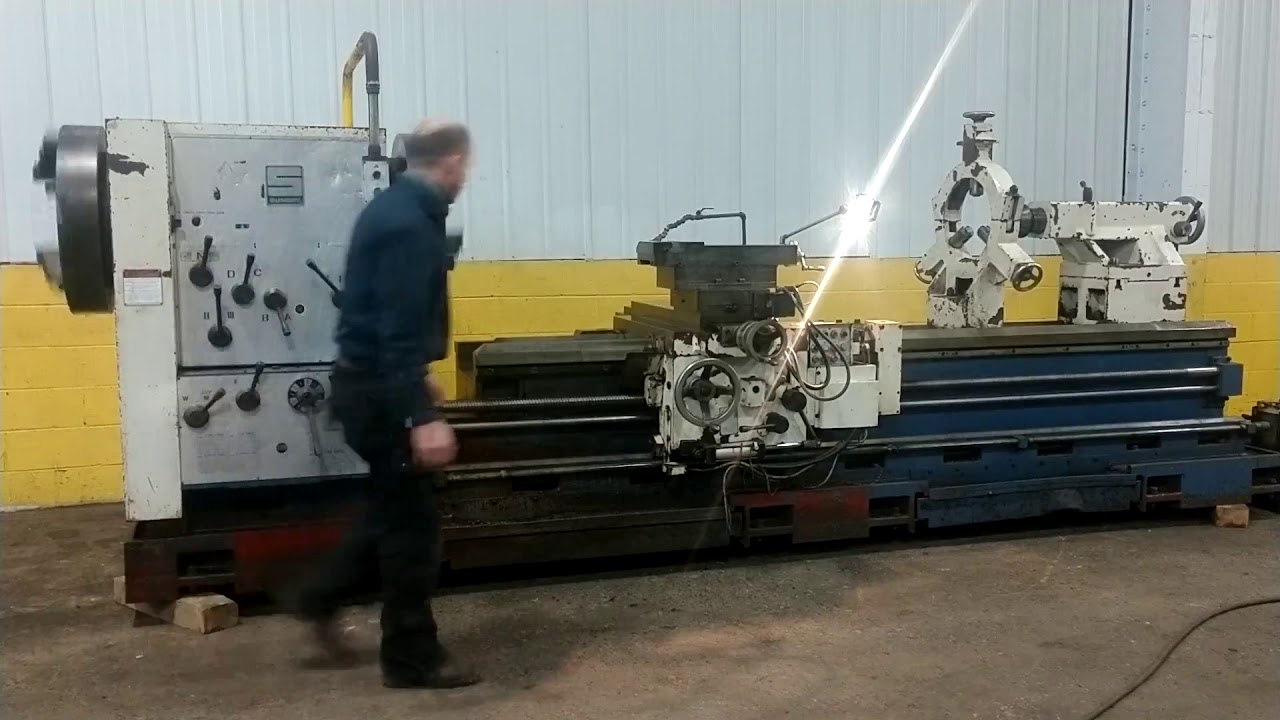

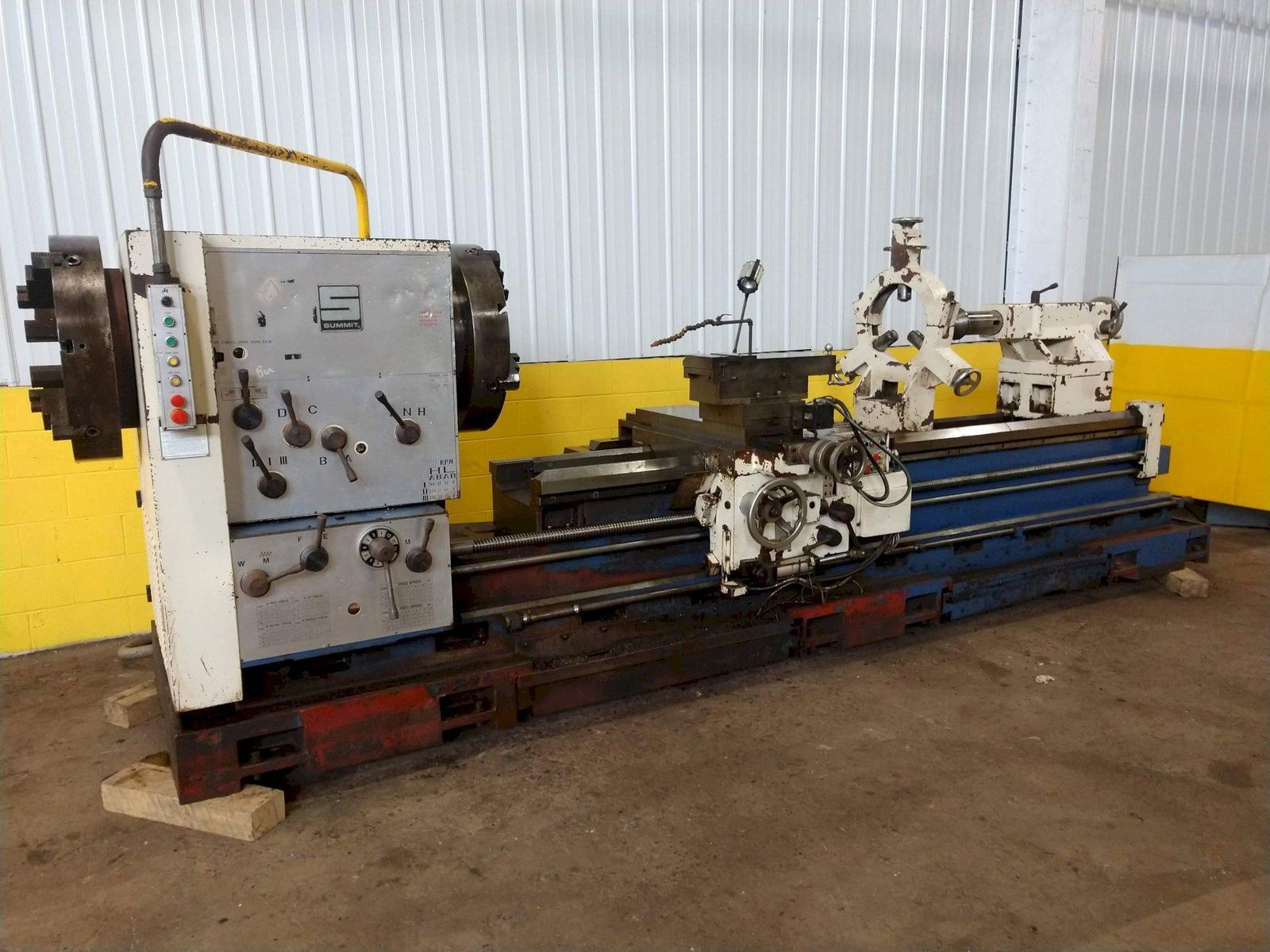

42" X 120" SUMMIT 12" HOLLOW SPINDLE MODEL 42-12X120 ENGINE LATHE: STOCK #12586

Stock #: 12586

Equipped With

SERIAL .................... 11071
NEW ....................... 2011

MODEL ..................... 42-12X120
SWING OVER BED ............ 41.7"
SWING OVER CROSS SLIDE .... 29.5"
SWING IN GAP .............. 63.4"
DISTANCE BETWEEN CENTERS .. 120"
HOLE THRU SPINDLE ......... 12.2"
SPINDLE SPEEDS ............ 4-300 RPM
FRONT & REAR CHUCKS ....... YES
SPINDLE NOSE .............. A2-20
THREADS PER INCH\ ......... ENGLISH (48) 1 TO 15 TPI
METRIC THREADS ............ (48) 2 TO 30 MT
TAIL STOCK QUILL TRAVEL ... 11.8"
DIAMETER TAILSTOCK QUILL .. 4.9"
TAILSTOCK CENTER .......... #6 MT
TAPER ATTACHMENT .......... YES
STEADY REST ............... YES
WIDTH OF BED .............. 22"
MAIN MOTOR ................ 30 HP

DIMENSIONS ................ 218" X 70" X 79" HIGH
WEIGHT .................... 21,000 LBS

Buy Machines

42" X 120" SUMMIT 12" HOLLOW SPINDLE MODEL 42-12X120 ENGINE LATHE: STOCK #12586

Stock # 12586

Share Machine
Print Details

Machine Specifications

SERIAL .................... 11071
NEW ....................... 2011

MODEL ..................... 42-12X120
SWING OVER BED ............ 41.7"
SWING OVER CROSS SLIDE .... 29.5"
SWING IN GAP .............. 63.4"
DISTANCE BETWEEN CENTERS .. 120"
HOLE THRU SPINDLE ......... 12.2"
SPINDLE SPEEDS ............ 4-300 RPM
FRONT & REAR CHUCKS ....... YES
SPINDLE NOSE .............. A2-20
THREADS PER INCH\ ......... ENGLISH (48) 1 TO 15 TPI
METRIC THREADS ............ (48) 2 TO 30 MT
TAIL STOCK QUILL TRAVEL ... 11.8"
DIAMETER TAILSTOCK QUILL .. 4.9"
TAILSTOCK CENTER .......... #6 MT
TAPER ATTACHMENT .......... YES
STEADY REST ............... YES
WIDTH OF BED .............. 22"
MAIN MOTOR ................ 30 HP

DIMENSIONS ................ 218" X 70" X 79" HIGH
WEIGHT .................... 21,000 LBS
