Machine Information

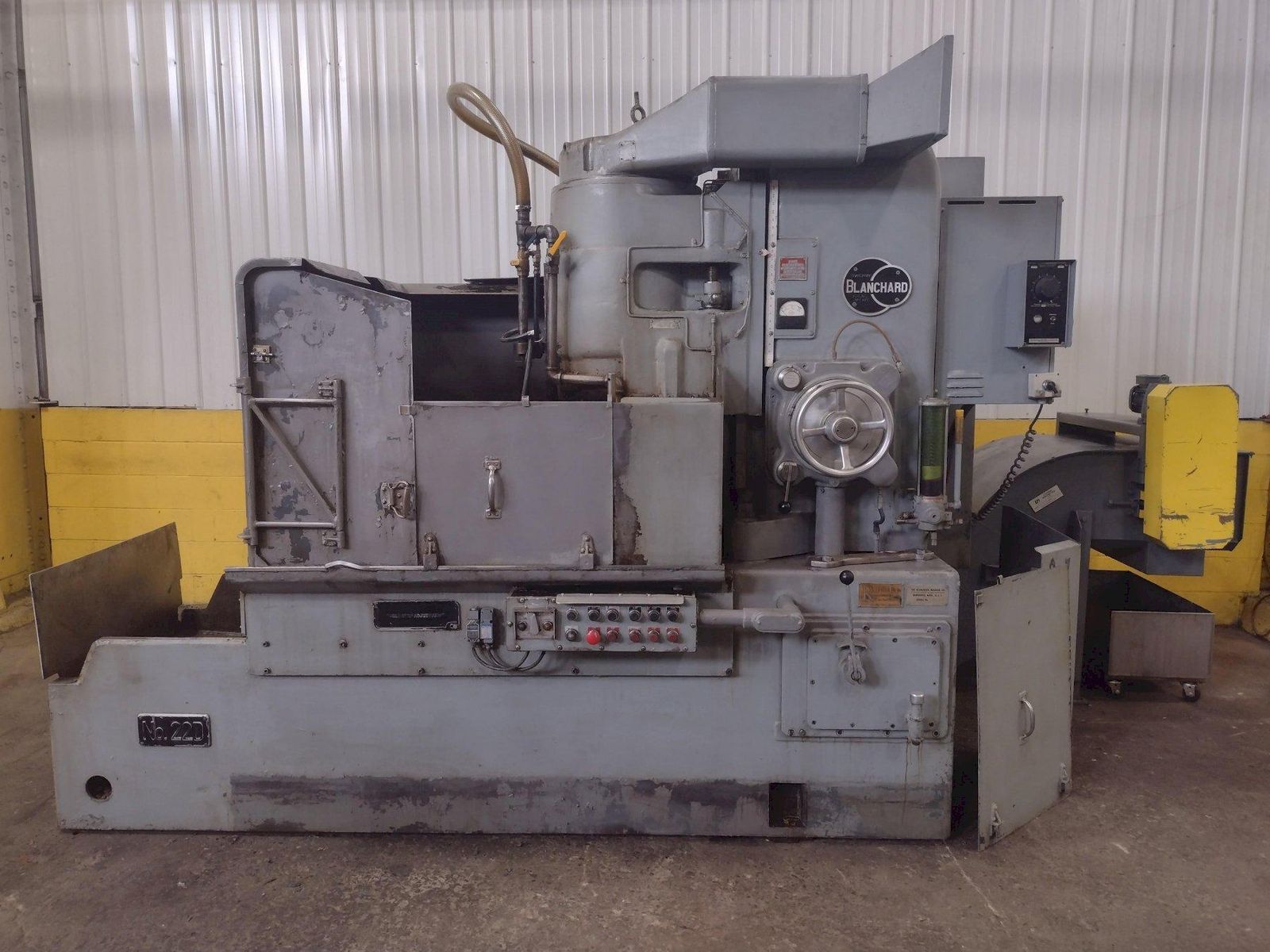

42" BLANCHARD MODEL #22-D-42 ROTARY SURFACE GRINDER: STOCK #15161

Stock #: 15161

Equipped With

SERIAL ........................ 12269
MODEL ......................... 22D-42
DIAMETER OF MAGNETIC CHUCK .... 42"
SWING INSIDE WATER GUARD ...... 48"
MAXIMUM UNDER WHEEL ........... 18"
DIAMETER OF SEGMENTED WHEEL ... 22"
TABLE SPEEDS .................. (6) 6 TO 33 RPM
POWER DOWN FEED ............... .004" TO .080"
POWER ELEVATION ............... YES
POWER TABLE TRAVERSE .......... YES
WWHEEL DRESSER ................ YES
COOLANT SYSTEM ................ YES
CONVEYOR & FILTER SYSTEM ...... YES, LOVONIA MAGNETICS
SPINDLE MOTOR ................. 40 HP

Buy Machines

42" BLANCHARD MODEL #22-D-42 ROTARY SURFACE GRINDER: STOCK #15161

Stock # 15161

Share Machine
Print Details

Machine Specifications

SERIAL ........................ 12269
MODEL ......................... 22D-42
DIAMETER OF MAGNETIC CHUCK .... 42"
SWING INSIDE WATER GUARD ...... 48"
MAXIMUM UNDER WHEEL ........... 18"
DIAMETER OF SEGMENTED WHEEL ... 22"
TABLE SPEEDS .................. (6) 6 TO 33 RPM
POWER DOWN FEED ............... .004" TO .080"
POWER ELEVATION ............... YES
POWER TABLE TRAVERSE .......... YES
WWHEEL DRESSER ................ YES
COOLANT SYSTEM ................ YES
CONVEYOR & FILTER SYSTEM ...... YES, LOVONIA MAGNETICS
SPINDLE MOTOR ................. 40 HP
