Machine Information

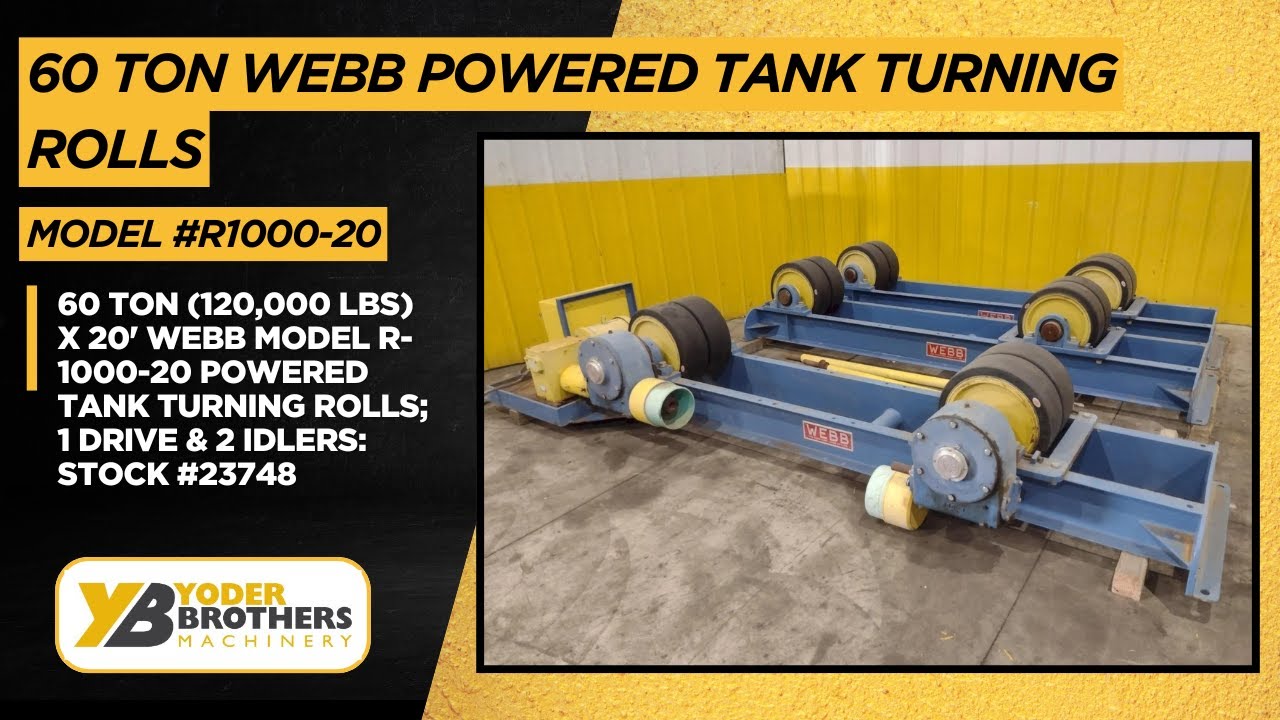

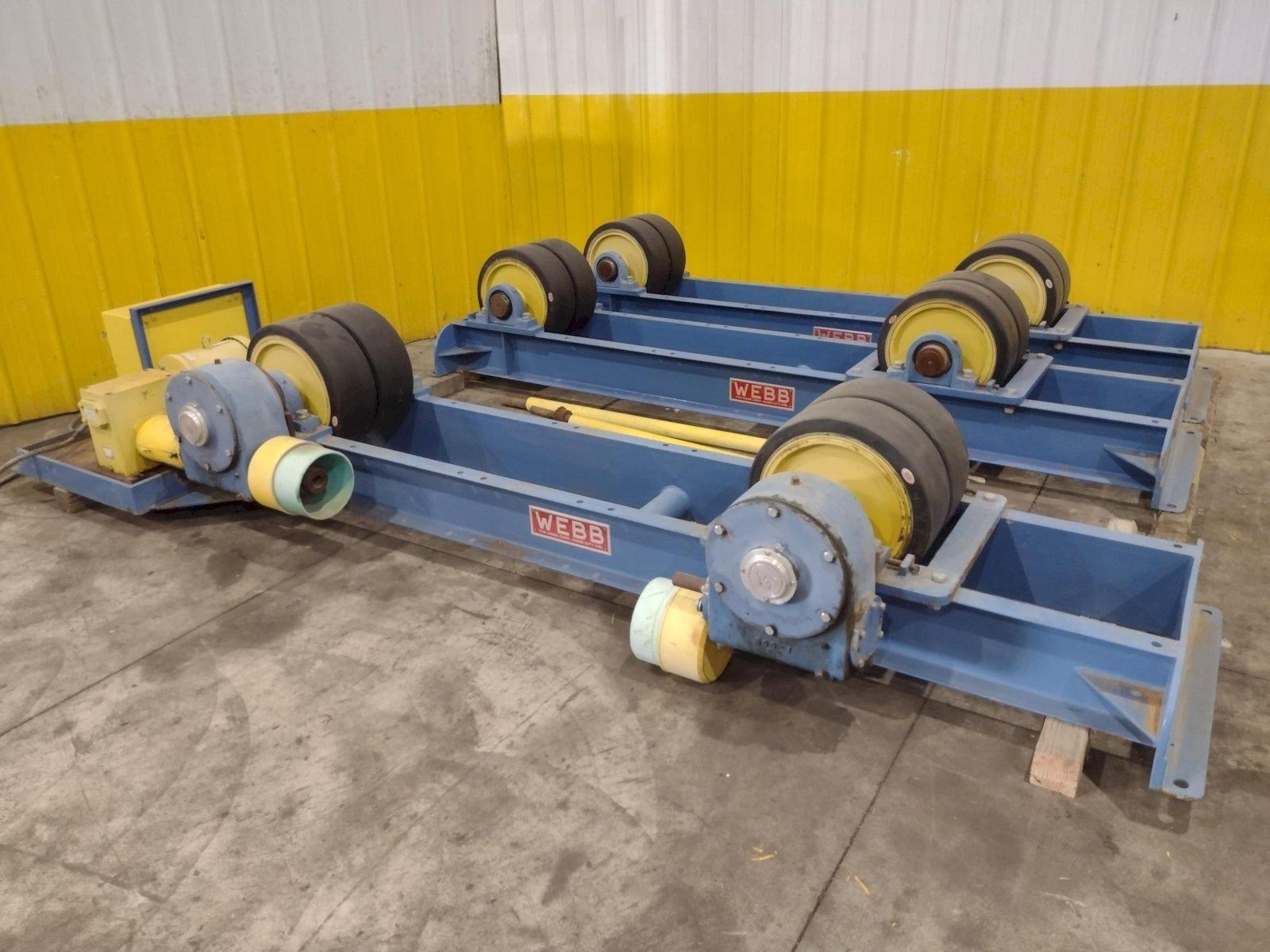

60 TON (120,000 LBS) x 20' WEBB MODEL R-1000-20 POWERED TANK TURNING ROLLS; 1 DRIVE & 2 IDLERS: STOCK #23748

Stock #: 23748

Equipped With

POWER DRIVE ROLL
SERIAL 2016-25
MODEL R1000-PWR
CAPACTY 40,000 LBS X 20'

Idler units (quantity 2)  Model R-1000 –  20,000lb Capacity each- up to 15’ Diameter Size

R-1000 SPECS
Turning Capacity(1 Idler) in Tons 40
Weight Capacity, Each Unit, in Tons 20
Motor Horsepower 3
Speed Range, IPM 7-58
Wheel Face Width 14”
Tires Per Axle 2
Maximum Working Diameter 20’
Minimum Working Diameter 6”
Tire Diameter 18”
Wheel Center Spacing 23 ½”, 41”, 58”, 75”, 92”
Height to Top of Tire 22 ½”

Power Unit Length 150 ½”
Power Unit Width 45”
Power Unit Shipping Weight 2,900lbs


Idler Unit Length 123”
Idler Unit Width 31“
Idler Unit Shipping Weight 1,350bs
