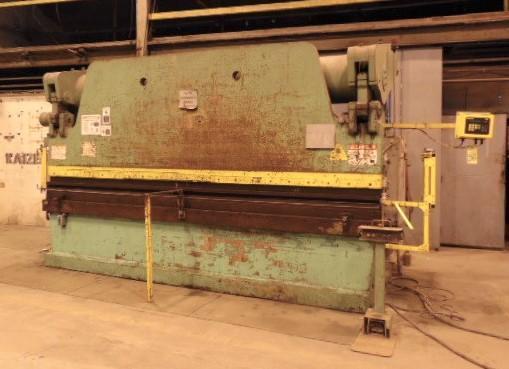

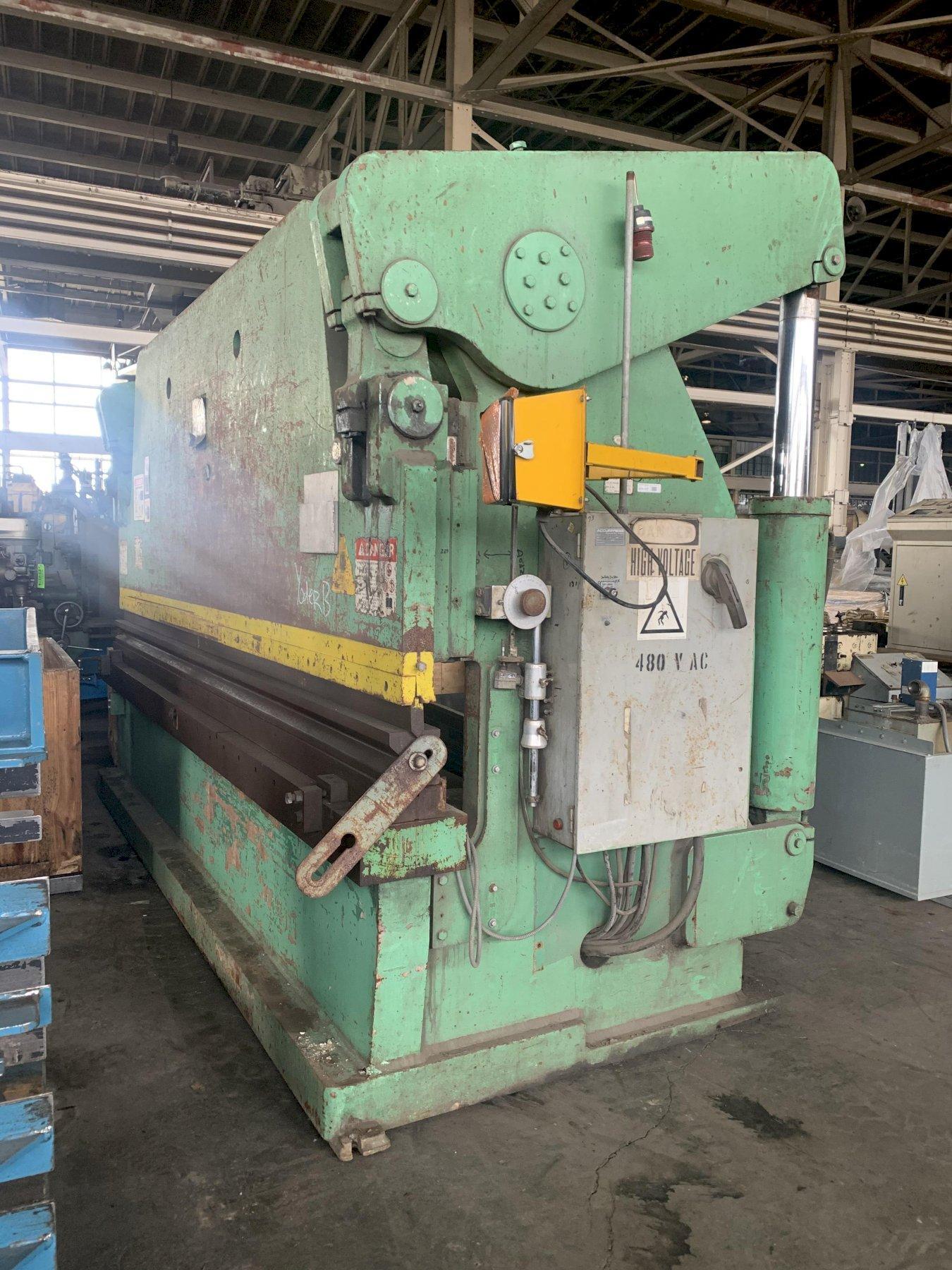

400 TON X 14' ACCURPRESS MODEL 740014 HYDRAULIC PRESS BRAKE: STOCK #12125

Stock #: 12125

Equipped With

SERIAL .......................... 1745
MODEL ........................... 7400-14
CAPACITY ........................ 400 TON
YEAR NEW ........................ 1991
OVERALL LENGTH OF BED ........... 168" (14')
DISTANCE BETWEEN HOUSINGS ....... 150"
STROKE .......................... 10"
MAXIMUM DAYLIGHT ................ 20"
MINIMUM DAYLIGHT ................ 10"
WIDTH OF BED .................... 12"
THROAT .......................... 10"
RAPID ADVANCE SPEED ............. 65 IPM
PRESSING SPEED .................. 18 IPM
RETURN .......................... 112 IPM
FLOOR STANDING .................. NO PIT REQUIRED
SAFETY LIGHT CURTAINS ........... MERLIN
PEDESTAL CONTROL STATION ........ YES
PALM &  FOOT PEDAL CONTROL ...... YES
E-STOP .......................... YES
MAIN MOTOR ...................... 40 HORSEPOWER
