Machine Information

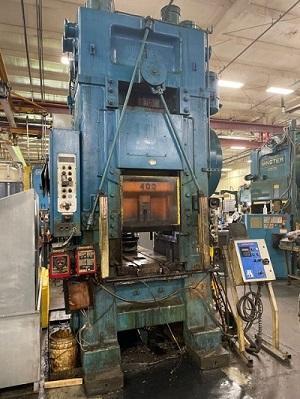

400 TON MINSTER MODEL 90-400 KNUCKLE JOINT PRESS: STOCK #15387

Stock #: 15387

Equipped With

SERIAL ..................... 90-400-25010
MODEL ...................... 90-400
YEAR NEW ................... 1982
CAPACITY ................... 400 TON
STROKE ..................... 2-1/2"
SLIDE ADJUSTMENT ........... 1/2"
BED SIZE ................... 30" L-R X 28" F-B
RAM (SLIDE) SIZE ........... 26" L-R X 18" F-B
BED BOLSTER THICKNESS ...... 4"
SHUT HEIGHT OVER BOLSTER ... 9"
SHUT HEIGHT OVER BED ....... 13"
DISTANCE BETWEEN UPRIGHTS .. 32"
DISTANCE BETWEEN RAM GIBS .. 27-1/2"
SPEED ...................... 20 TO 30 SPM
CONTROLS ................... PA ADVANTAGE
OPERATING MODES ............ INCH/SINGLE/CONTINUOUS
SINGLE BACK GEARED ......... YES
GEAR & PINION  ............. RUNNING IN OIL
AIR CLUTCH ................. MOUNTED ON CRANKSHAFT
AIR COUNTERBALANCE ......... YES
LIGHT CURTAINS ............. YES
AC MOTOR ................... 10 HP

Buy Machines

400 TON MINSTER MODEL 90-400 KNUCKLE JOINT PRESS: STOCK #15387

Stock # 15387

Share Machine
Print Details
Download Images

Machine Specifications

SERIAL ..................... 90-400-25010
MODEL ...................... 90-400
YEAR NEW ................... 1982
CAPACITY ................... 400 TON
STROKE ..................... 2-1/2"
SLIDE ADJUSTMENT ........... 1/2"
BED SIZE ................... 30" L-R X 28" F-B
RAM (SLIDE) SIZE ........... 26" L-R X 18" F-B
BED BOLSTER THICKNESS ...... 4"
SHUT HEIGHT OVER BOLSTER ... 9"
SHUT HEIGHT OVER BED ....... 13"
DISTANCE BETWEEN UPRIGHTS .. 32"
DISTANCE BETWEEN RAM GIBS .. 27-1/2"
SPEED ...................... 20 TO 30 SPM
CONTROLS ................... PA ADVANTAGE
OPERATING MODES ............ INCH/SINGLE/CONTINUOUS
SINGLE BACK GEARED ......... YES
GEAR & PINION  ............. RUNNING IN OIL
AIR CLUTCH ................. MOUNTED ON CRANKSHAFT
AIR COUNTERBALANCE ......... YES
LIGHT CURTAINS ............. YES
AC MOTOR ................... 10 HP
