Overview

SERIAL .......................... A1746

MODEL ........................... DL-4080

SWING ........................... 40"

SWING OVER CROSS ................ 28"

SWING IN GAP .................... 48"

LENGTH OF GAP ................... 16"

CENTERS ......................... 80"

SPINDLE HOLE .................... 5-1/8"

SPINDLE SPEEDS .................. (18) 7.5 TO 1,000 RPM

TAPER OF SPINDLE CENTER ......... MT NO 5

WIDTH OF BED .................... 21-21/32"

RAPID TRAVERSE .................. YES

SPINDLE NOSE .................... D-1-11 CAMLOCK

CHUCK ........................... 24.5"

FEEDS, LONGITUDINAL ............. (64) .002 TO .96 IPR

FEEDS, CROSS ................... (64) .001 TO .48 IRP

THREADS (INCH) .................. (73) 32 1/16 TPI

THREADS (METRIC) ................ (57) 1 TO 256 MM

THREADS (MODULE) ................ (57) .5 TO 128 MM

THRADS (DIAMETERAL) ............. (57) 32-1/8 DP

CROSS SLIDE TRAVEL .............. 20-7/8"

TAILSTOCK QUILL ................. #5 MT

COOLANT MOTOR ................... 1/8 HP

RAPID MOTOR ..................... 1.5 HP

MOTOR ........................... 20 HP

Specifications
Dimensions	180" X 62" X 78" HIGH
Weight	11000 pounds

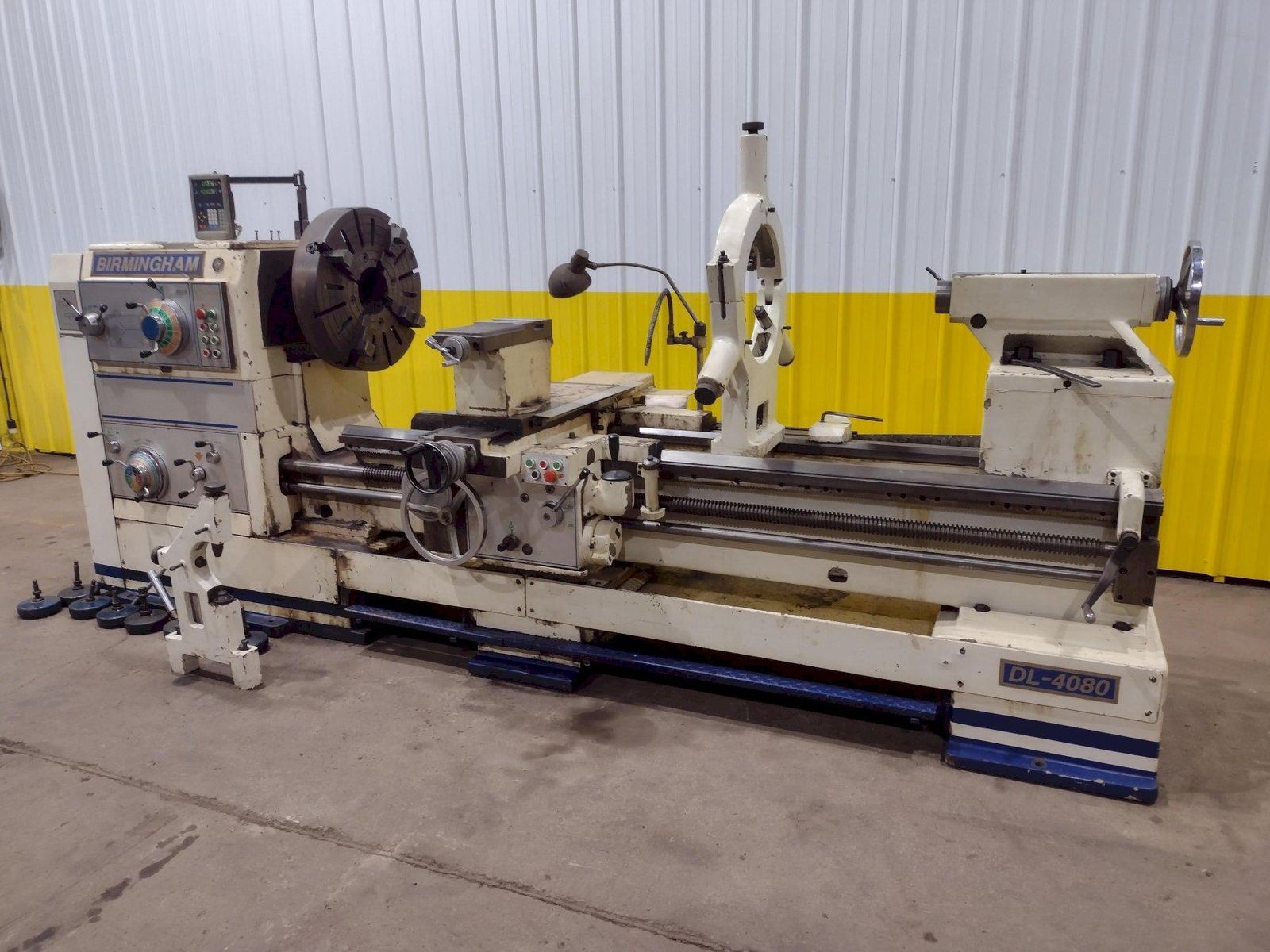

40" x 80" BIRMINGHAM MODEL #DL4080 ENGINE LATHE, 5-1/8" HOLLOW SPINDLE HOLE: STOCK #19321

Brand
BIRMINGHAM

Type
Lathes, Engine

Stock No.
19321

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

40" x 80" BIRMINGHAM MODEL #DL4080 ENGINE LATHE, 5-1/8" HOLLOW SPINDLE HOLE: STOCK #19321

Stock #: 19321

Equipped With

SERIAL .......................... A1746
MODEL ........................... DL-4080
SWING ........................... 40"
SWING OVER CROSS ................ 28"
SWING IN GAP .................... 48"
LENGTH OF GAP ................... 16"
CENTERS ......................... 80"
SPINDLE HOLE .................... 5-1/8"
SPINDLE SPEEDS .................. (18) 7.5 TO 1,000 RPM
TAPER OF SPINDLE CENTER ......... MT NO 5
WIDTH OF BED .................... 21-21/32"
RAPID TRAVERSE .................. YES
SPINDLE NOSE .................... D-1-11 CAMLOCK
CHUCK ........................... 24.5"
FEEDS, LONGITUDINAL ............. (64) .002 TO .96 IPR
FEEDS, CROSS  ................... (64) .001 TO .48 IRP
THREADS (INCH) .................. (73) 32 1/16 TPI
THREADS (METRIC) ................ (57) 1 TO 256 MM
THREADS (MODULE) ................ (57) .5 TO 128 MM
THRADS (DIAMETERAL) ............. (57) 32-1/8 DP
CROSS SLIDE TRAVEL .............. 20-7/8"
TAILSTOCK QUILL ................. #5 MT
COOLANT MOTOR ................... 1/8 HP
RAPID MOTOR ..................... 1.5 HP
MOTOR ........................... 20 HP

Overview

40" x 80" BIRMINGHAM MODEL #DL4080 ENGINE LATHE, 5-1/8" HOLLOW SPINDLE HOLE: STOCK #19321
