Machine Information

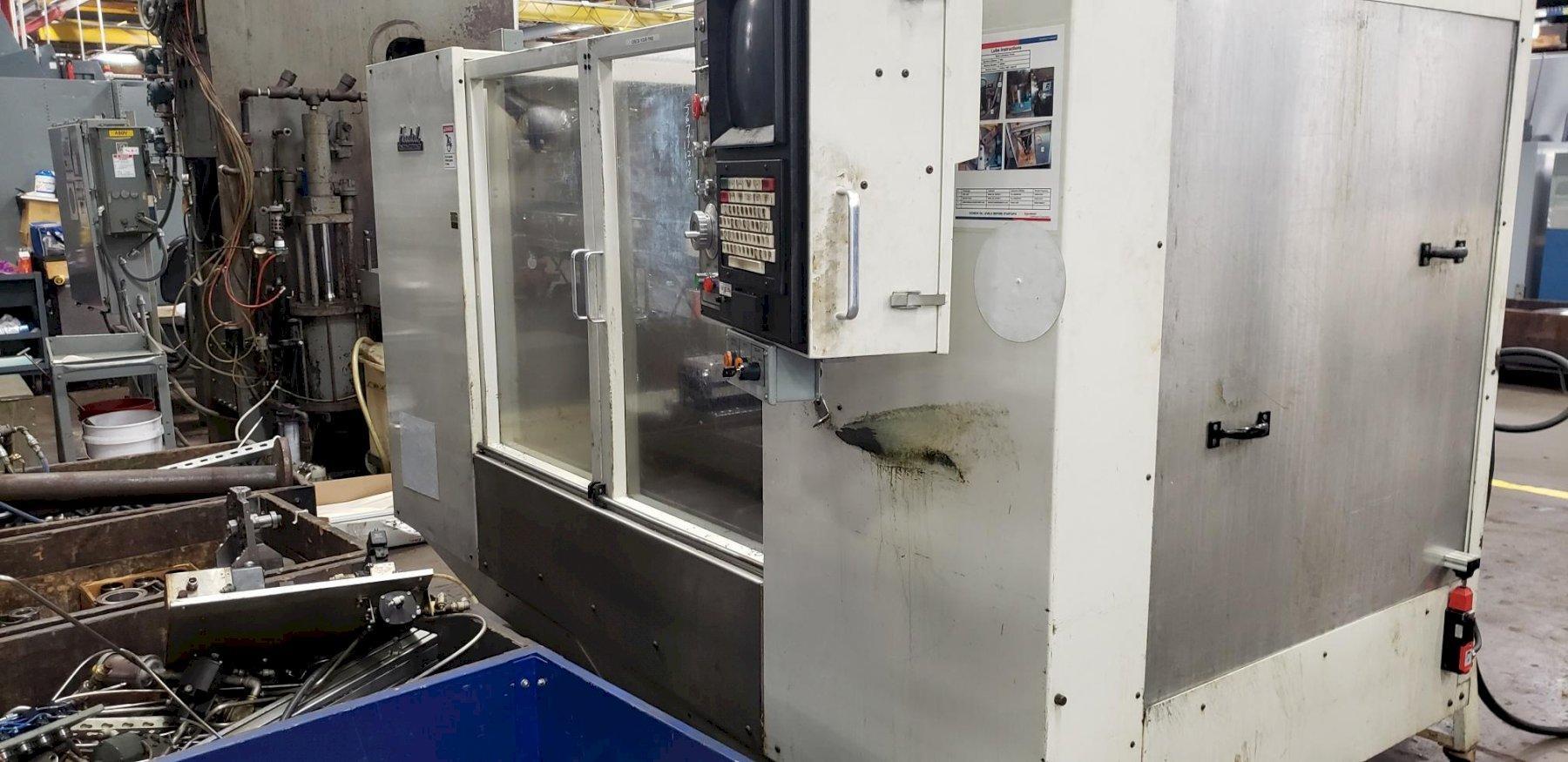

20" x 40" FADAL MODEL #4020 -906-1 CNC VERTICAL MACHINING CENTER VMC, NEW 1996: STOCK 14730

Stock #: 14730

Equipped With

SERIAL ......................... 9612954
MODEL .......................... 906-1 VMC 4020
YEAR NEW ....................... 1996
TABLE SIZE ..................... 40" X 20"
TABLE CAPACITY ................. 1,500 LBS
FLOOR TO TABLE ................. 31"
CUTTING FEED RATES (X,Y,Z) ..... .01-250 IPM
RAPID TRAVEL ................... 700 IPM
X AXIS TRAVEL .................. 40"
Y AXIS TRAVEL .................. 20"
Z AXIS TRAVEL .................. 20"
SPINDLE NOSE TO TABLE .......... 4" MIN, 24" MAX
SPINDLE CENTER TO COLUMN WAYS .. 20"
SPINDLE SPEED .................. 75 TO 10,000 RPM
SPINDLE TAPER .................. CAT 40
CONTROL ........................ FADAL CNC88 HS
TOOL CHANGER ................... 21 STATIONS
COOLANT THRU SPINDLE ........... YES
MOTOR .......................... 15 HORSEPOWER

Buy Machines

20" x 40" FADAL MODEL #4020 -906-1 CNC VERTICAL MACHINING CENTER VMC, NEW 1996: STOCK 14730

Stock # 14730

Share Machine
Print Details

Machine Specifications

SERIAL ......................... 9612954
MODEL .......................... 906-1 VMC 4020
YEAR NEW ....................... 1996
TABLE SIZE ..................... 40" X 20"
TABLE CAPACITY ................. 1,500 LBS
FLOOR TO TABLE ................. 31"
CUTTING FEED RATES (X,Y,Z) ..... .01-250 IPM
RAPID TRAVEL ................... 700 IPM
X AXIS TRAVEL .................. 40"
Y AXIS TRAVEL .................. 20"
Z AXIS TRAVEL .................. 20"
SPINDLE NOSE TO TABLE .......... 4" MIN, 24" MAX
SPINDLE CENTER TO COLUMN WAYS .. 20"
SPINDLE SPEED .................. 75 TO 10,000 RPM
SPINDLE TAPER .................. CAT 40
CONTROL ........................ FADAL CNC88 HS
TOOL CHANGER ................... 21 STATIONS
COOLANT THRU SPINDLE ........... YES
MOTOR .......................... 15 HORSEPOWER
