Machine Information

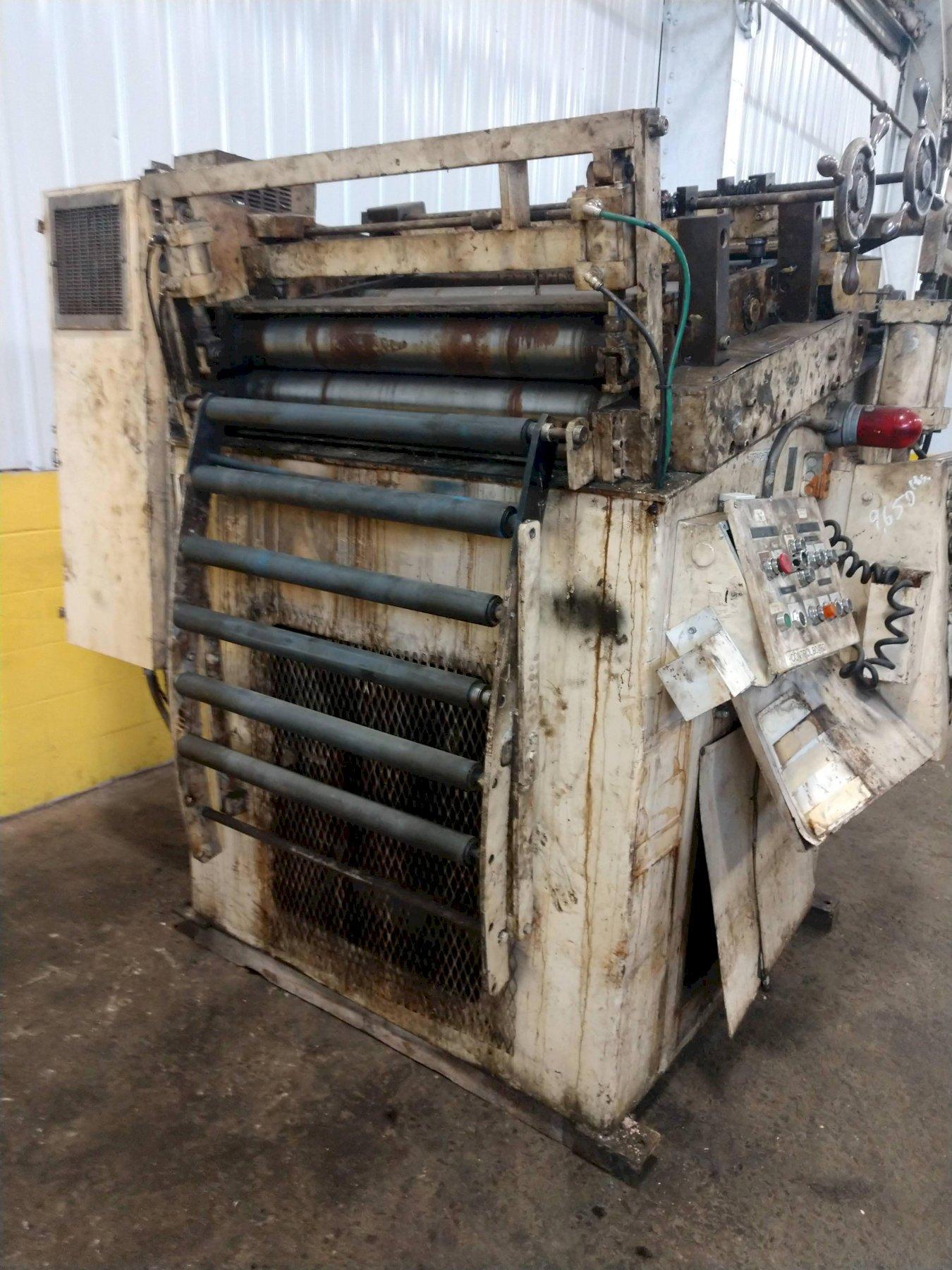

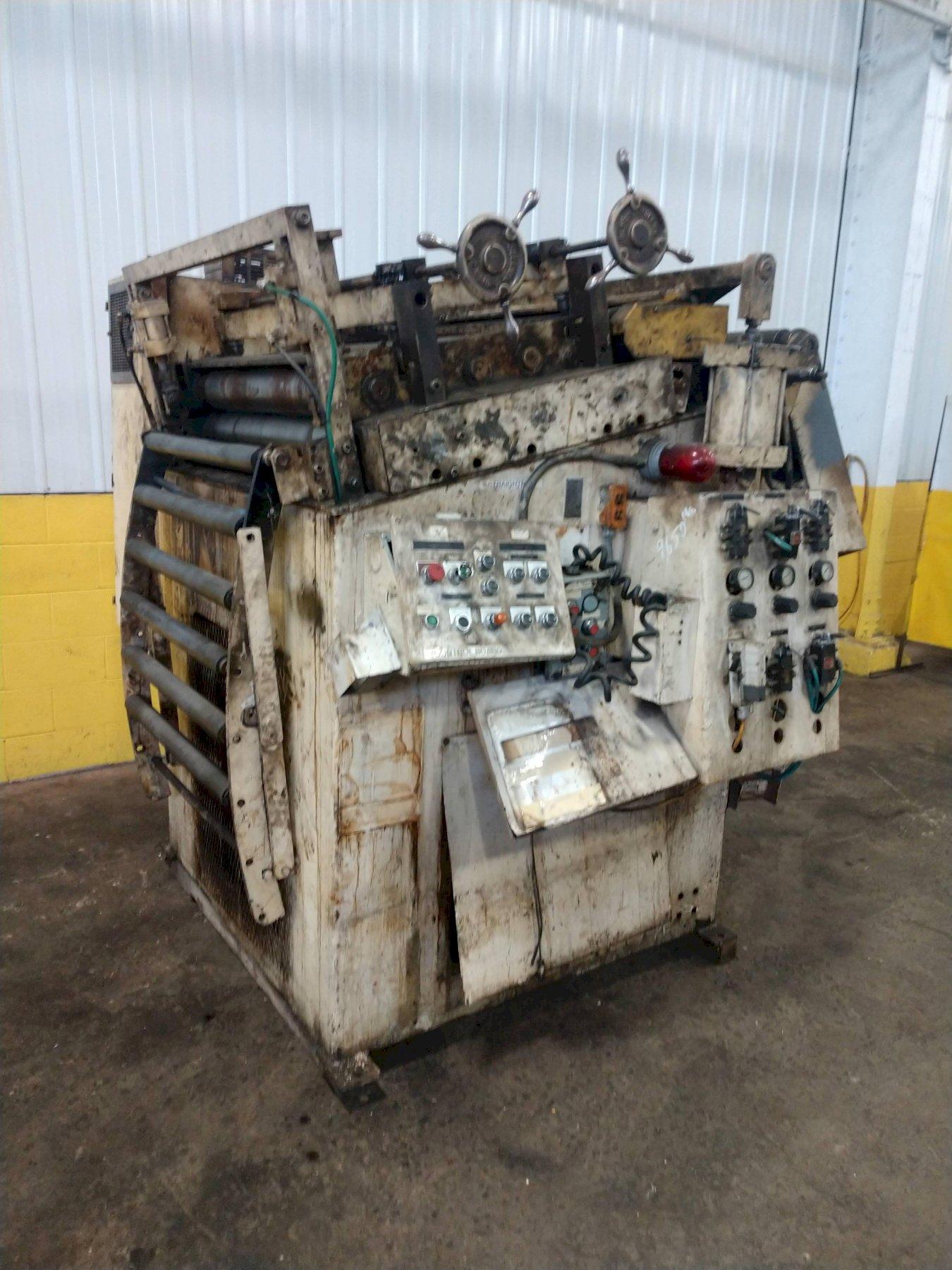

40" WIDE X .190" ROWE MODEL #C9-40 POWERED 5 ROLL COIL STRAIGHTENER : STOCK #13910

Stock #: 13910

Equipped With

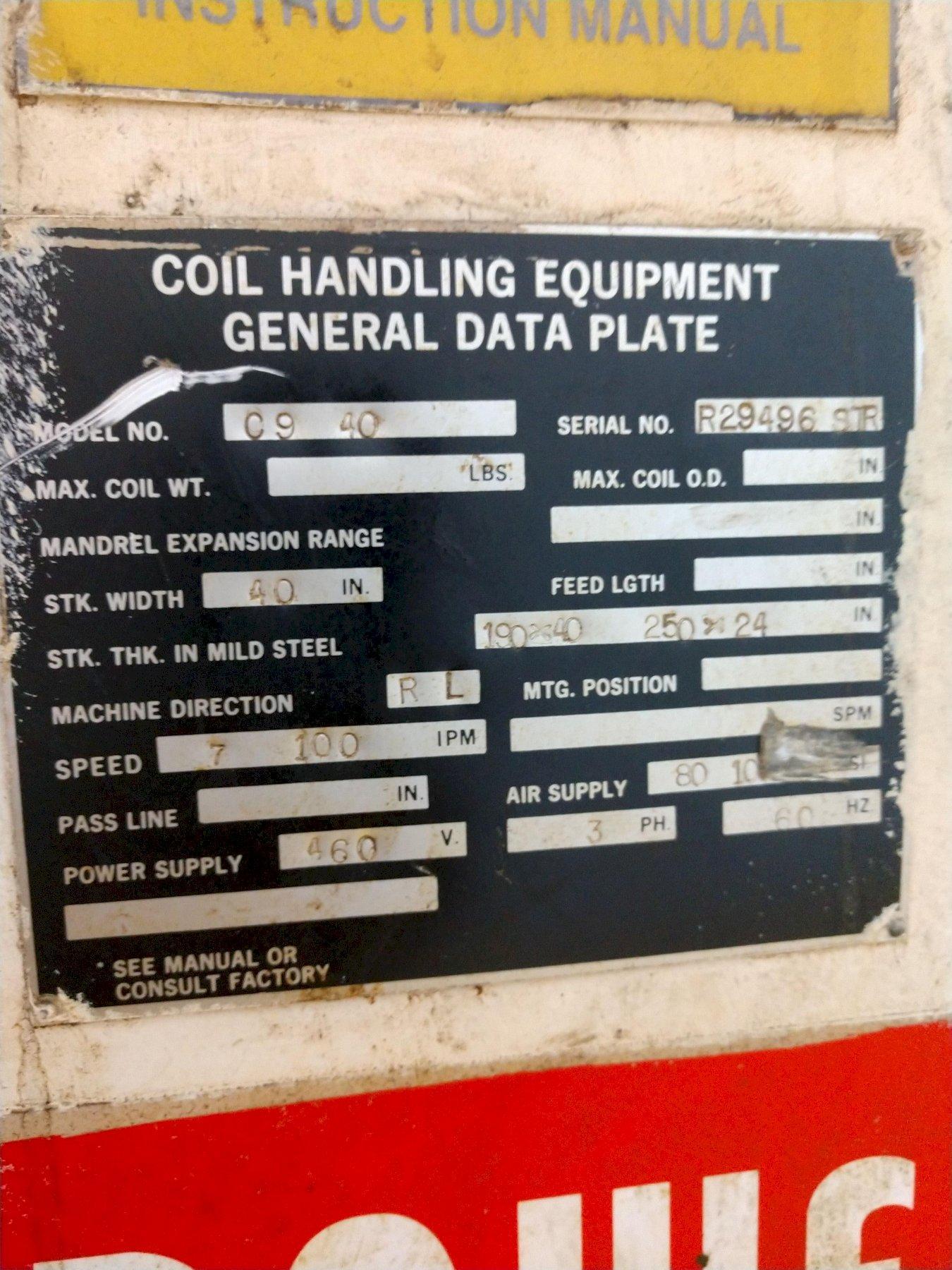

SERIAL ..................................... R29496STR
MODEL ...................................... C9-40
MAX WIDTH CAPACITY ......................... 40"
MAX THICKNESS CAPACITY @ FULL WIDTH ........ .190"
STOCK THICKNESS CAPACITY ................... .190" @ 40" WIDE
STOCK THICKNESS CAPACITY ................... .250" @ 24" WIDE

LITTELL EQUIPMENT & FEATURES:

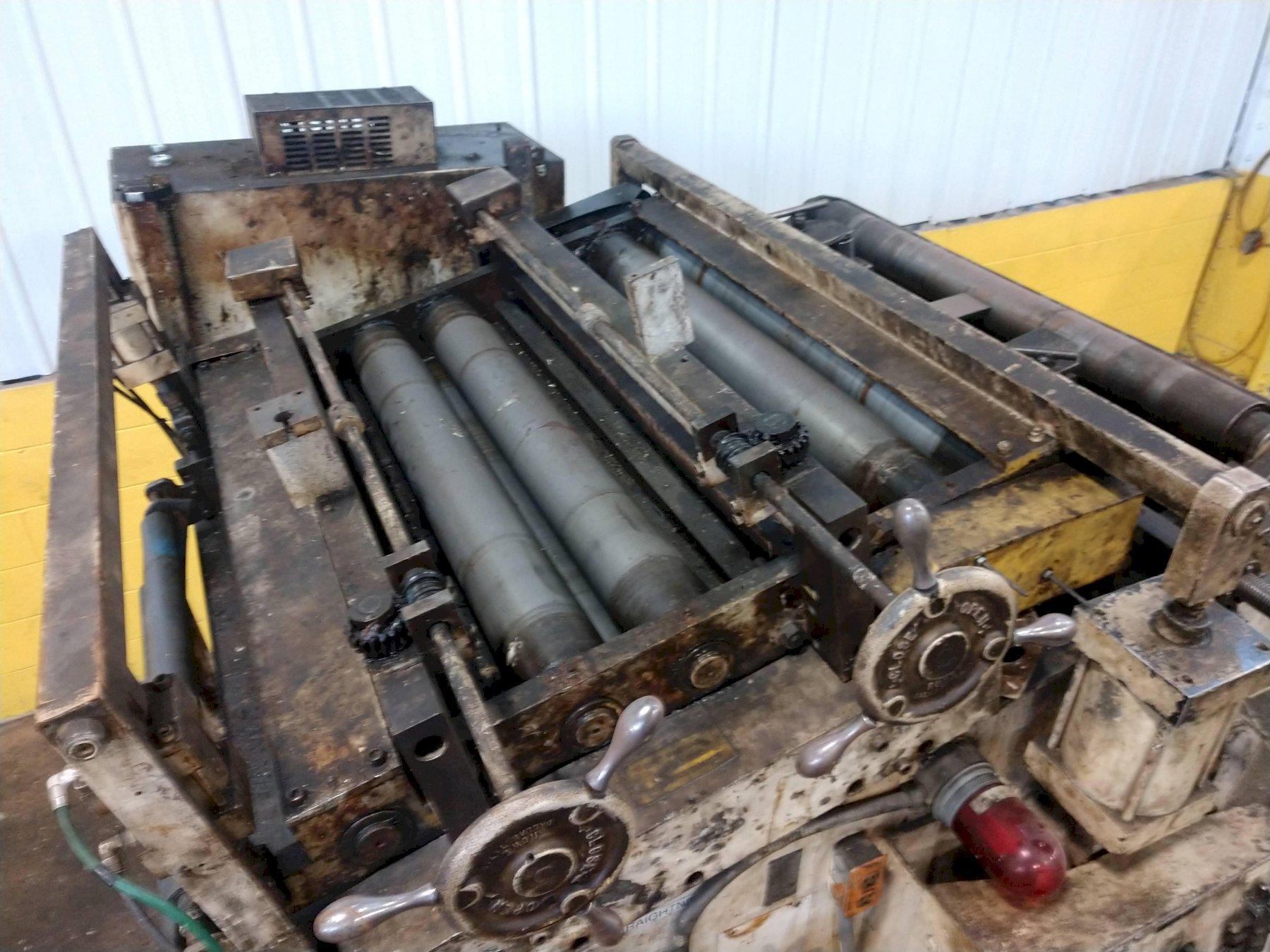

NUMBER OF ROLLS ............................ 5
DIAMETER OF ROLLS .......................... 5"
BANK-TYPE UPPER ROLL ADJ ................... YES
DE-KINKER 4-ROLL BREAKER ASSEMBLY .......... PNEUMATIC ADJ VIA HAND VALVE
EXIT PINCH ROLLS ........................... 5" DIAMETER - PNEUMATIC ADJ VIA HAND VALVE
STOCK PEELER TABLE W/SPADE EXTENSION ....... PNEUMATIC ADJ VIA HAND VALVE
HAND CRANK ENTRY STOCK WIDTH EDGE GUIDES ... YES
INCLINED HEAD .............................. YES
EXIT CASCADE LOOP SUPPORT ROLLERS .......... YES
VARI SPEED DRIVE SYSTEM .................... YES

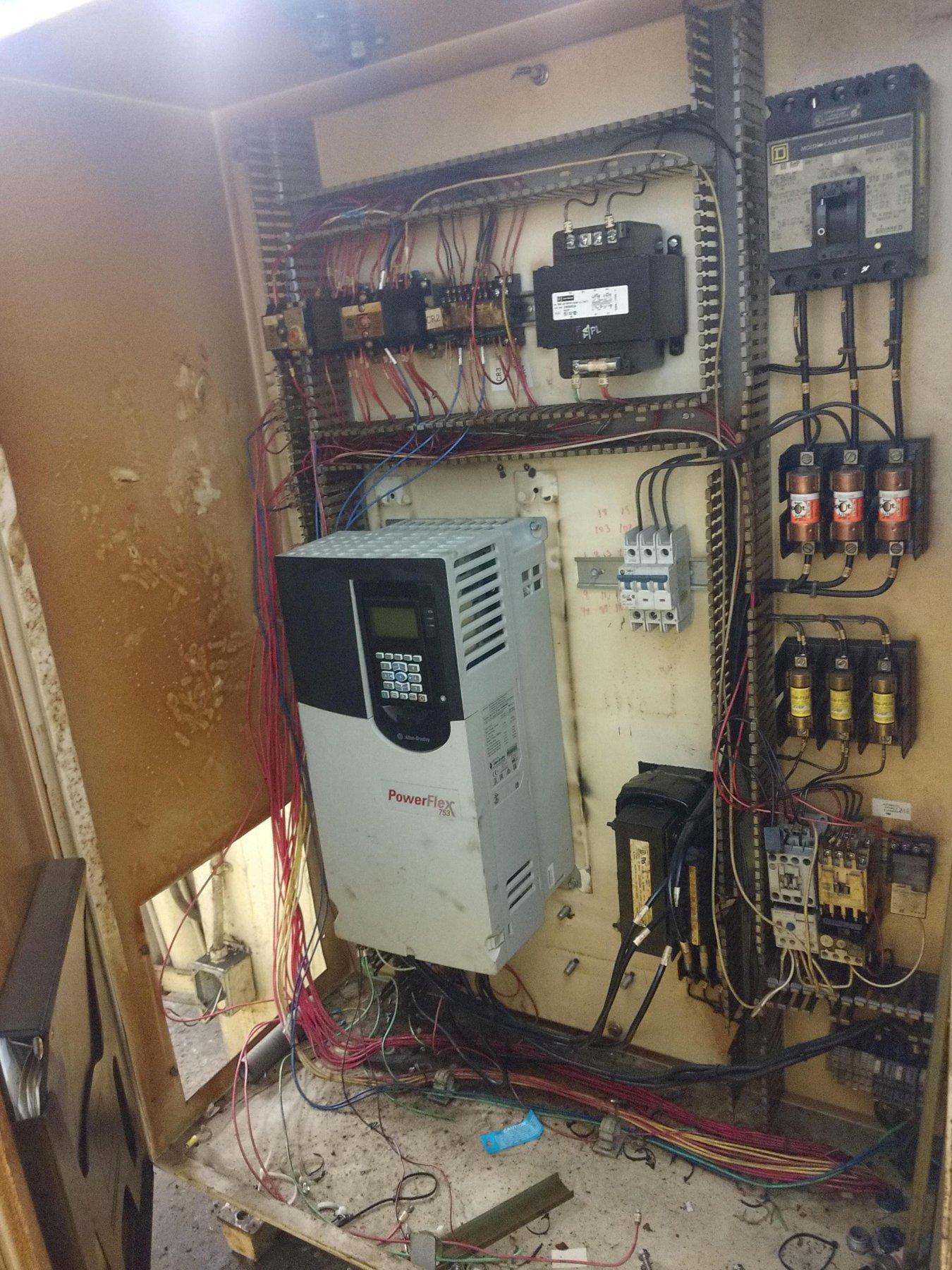

ELECTRICAL ................................. 480V
JOG FORWARD & REVERSE ...................... YES
AUTO/RUN CYCLE ............................. YES
LOOP CONTROL ............................... YES

Buy Machines

40" WIDE X .190" ROWE MODEL #C9-40 POWERED 5 ROLL COIL STRAIGHTENER : STOCK #13910

Stock # 13910

Share Machine
Print Details

Machine Specifications

SERIAL ..................................... R29496STR
MODEL ...................................... C9-40
MAX WIDTH CAPACITY ......................... 40"
MAX THICKNESS CAPACITY @ FULL WIDTH ........ .190"
STOCK THICKNESS CAPACITY ................... .190" @ 40" WIDE
STOCK THICKNESS CAPACITY ................... .250" @ 24" WIDE

LITTELL EQUIPMENT & FEATURES:
NUMBER OF ROLLS ............................ 5
DIAMETER OF ROLLS .......................... 5"
BANK-TYPE UPPER ROLL ADJ ................... YES
DE-KINKER 4-ROLL BREAKER ASSEMBLY .......... PNEUMATIC ADJ VIA HAND VALVE
EXIT PINCH ROLLS ........................... 5" DIAMETER - PNEUMATIC ADJ VIA HAND VALVE
STOCK PEELER TABLE W/SPADE EXTENSION ....... PNEUMATIC ADJ VIA HAND VALVE
HAND CRANK ENTRY STOCK WIDTH EDGE GUIDES ... YES
INCLINED HEAD .............................. YES
EXIT CASCADE LOOP SUPPORT ROLLERS .......... YES
VARI SPEED DRIVE SYSTEM .................... YES
ELECTRICAL ................................. 480V
JOG FORWARD & REVERSE ...................... YES
AUTO/RUN CYCLE ............................. YES
LOOP CONTROL ............................... YES

Specifications
Weight 4650 pounds
