Machine Information

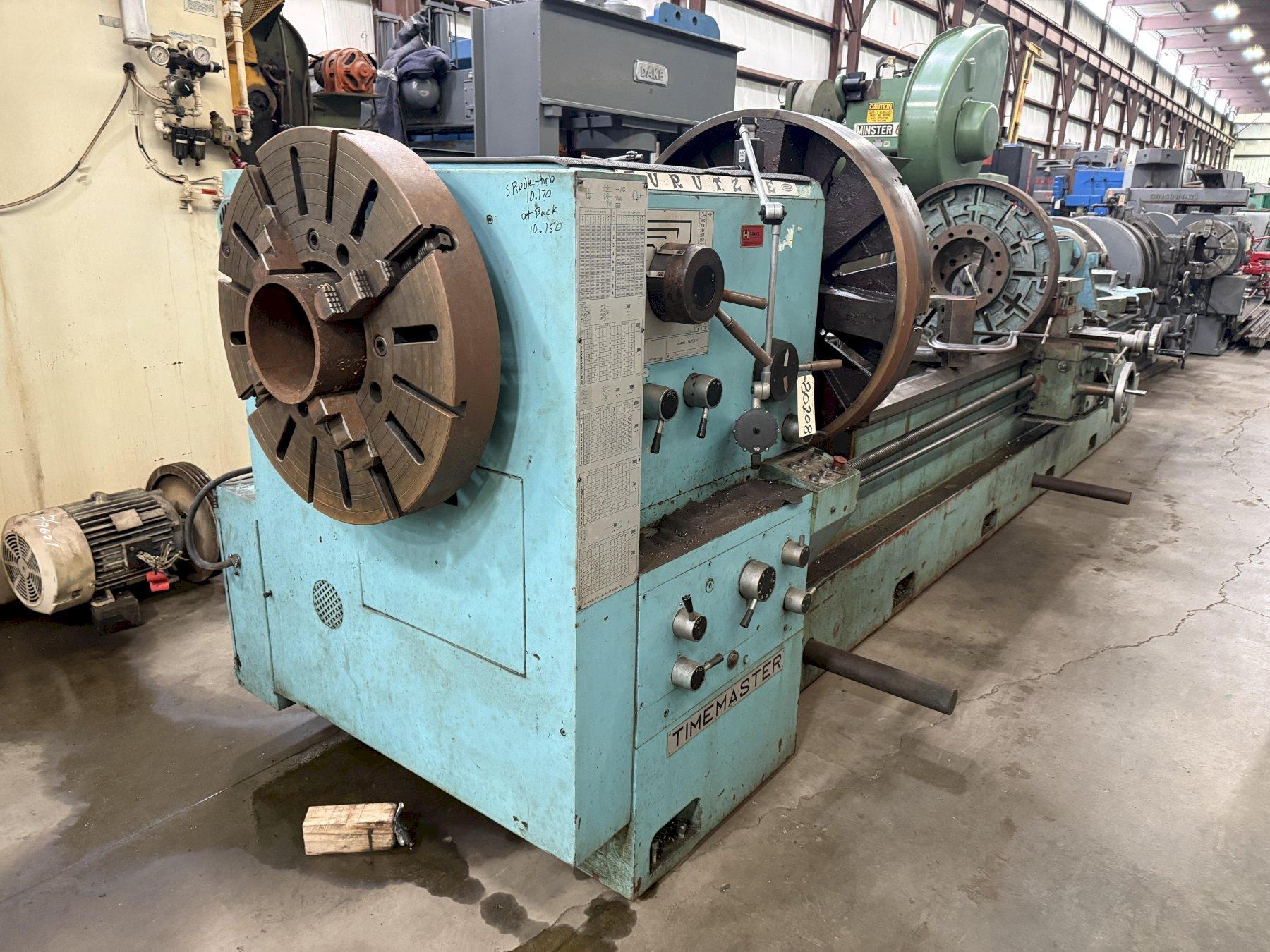

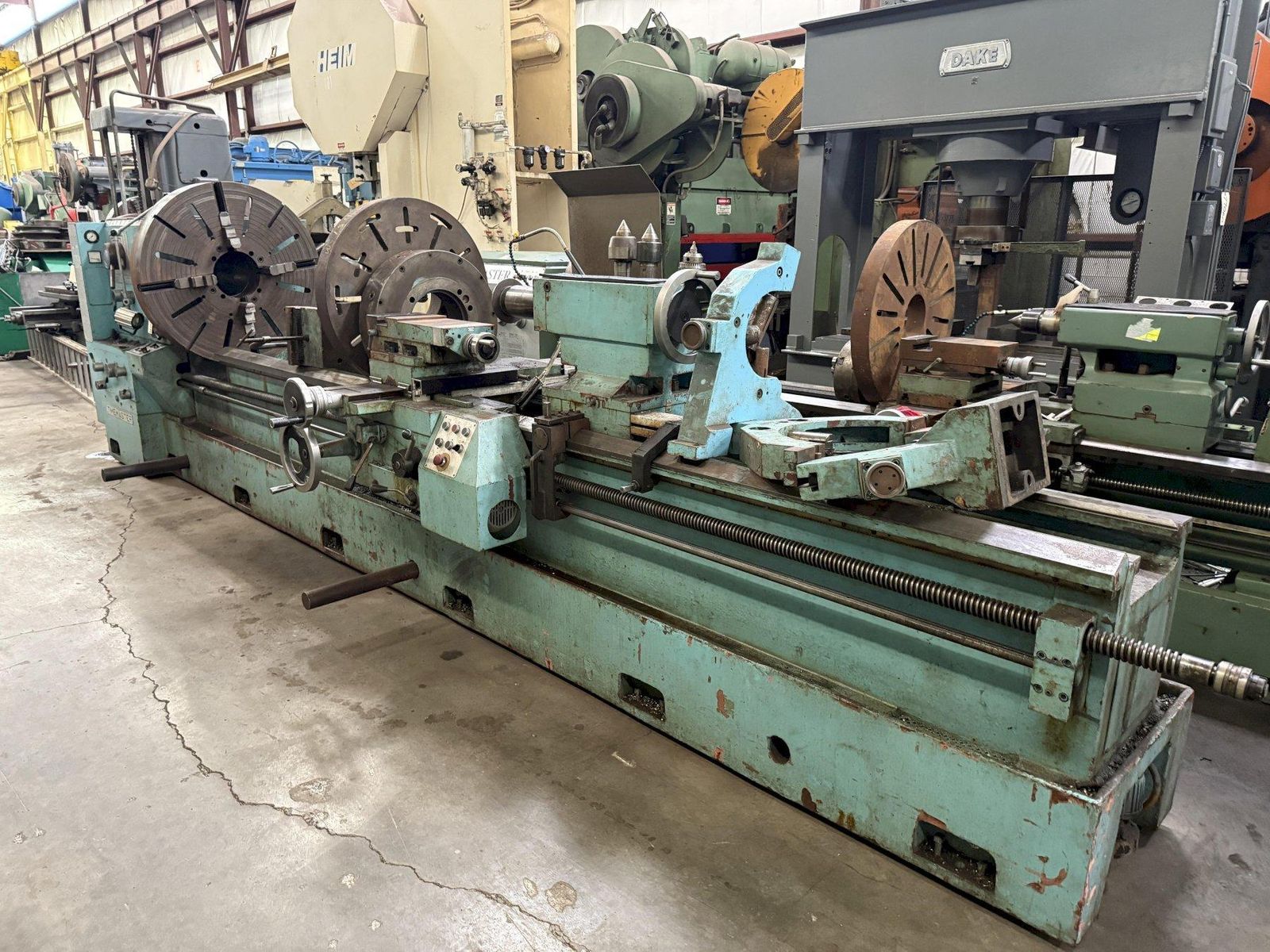

33/40" X 156" TIMEMASTER HOLLOW SPINDLE GAP BED ENGINE LATHE, 10" SPINDLE HOLE : STOCK #23756

Stock #: 23756

Equipped With

SERIAL ......................... 7536

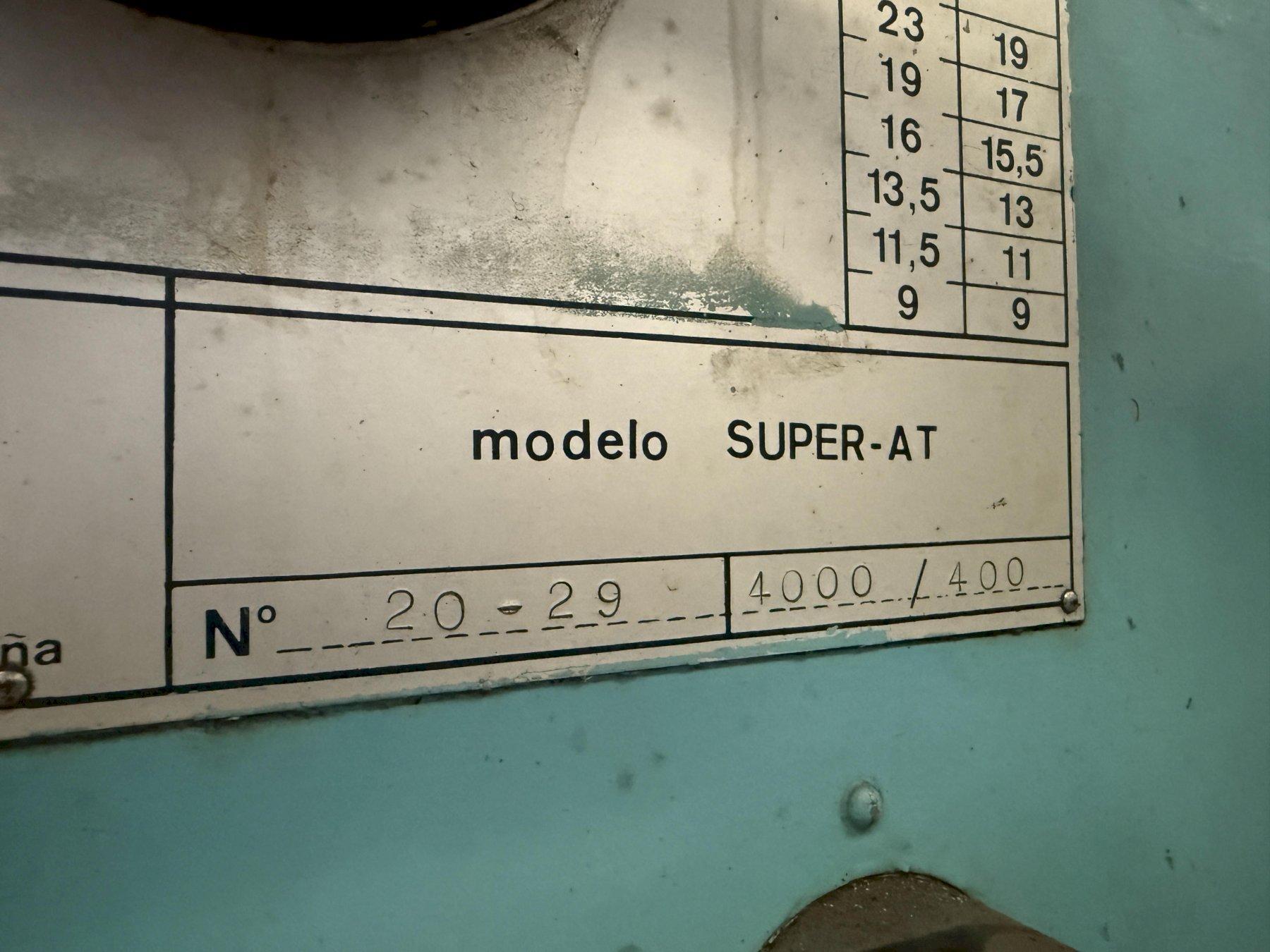

MODEL .......................... TIMEMASTER 20-39
HOLLOW SPINDLE DIAMETER ........ 10" HOLE
SWING OVER WAYS ................ 33"
SWING IN GAP ................... 48"
SWING OVER CROSSLIDE ........... 22"
CENTER DISTANCE ................ 156"

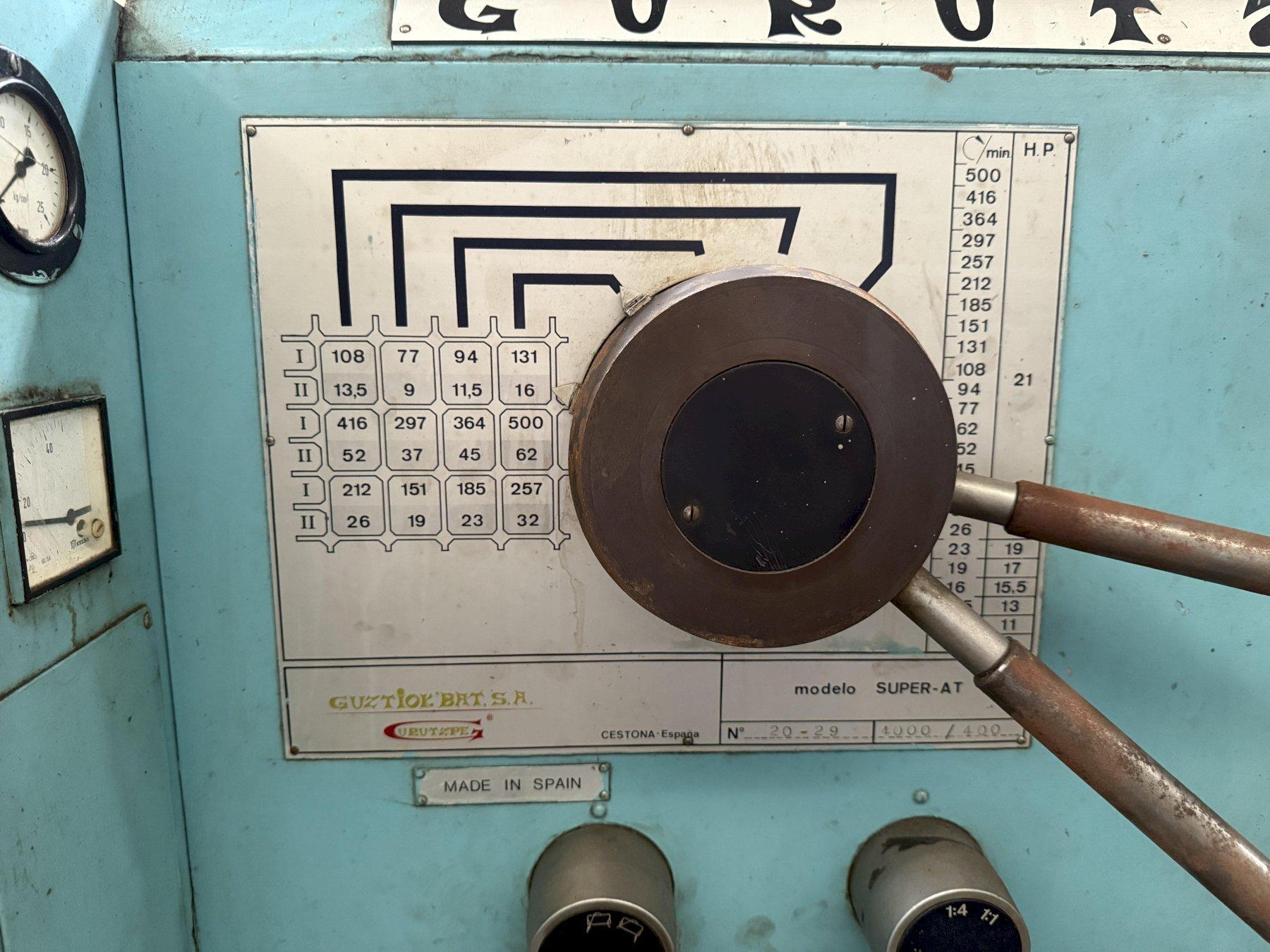

SPINDLE SPEEDS ................. 9 TO 500 RPM
ENGLISH FEEDS .................. .0009 TO .0369 IPR
ENGLISH THREADS ................ 1 TO 56 TPI
METRIC FEEDS ................... .0016 TO .0468 MMPR
METRIC THREADS ................. 1 TO 112 MM PITCH

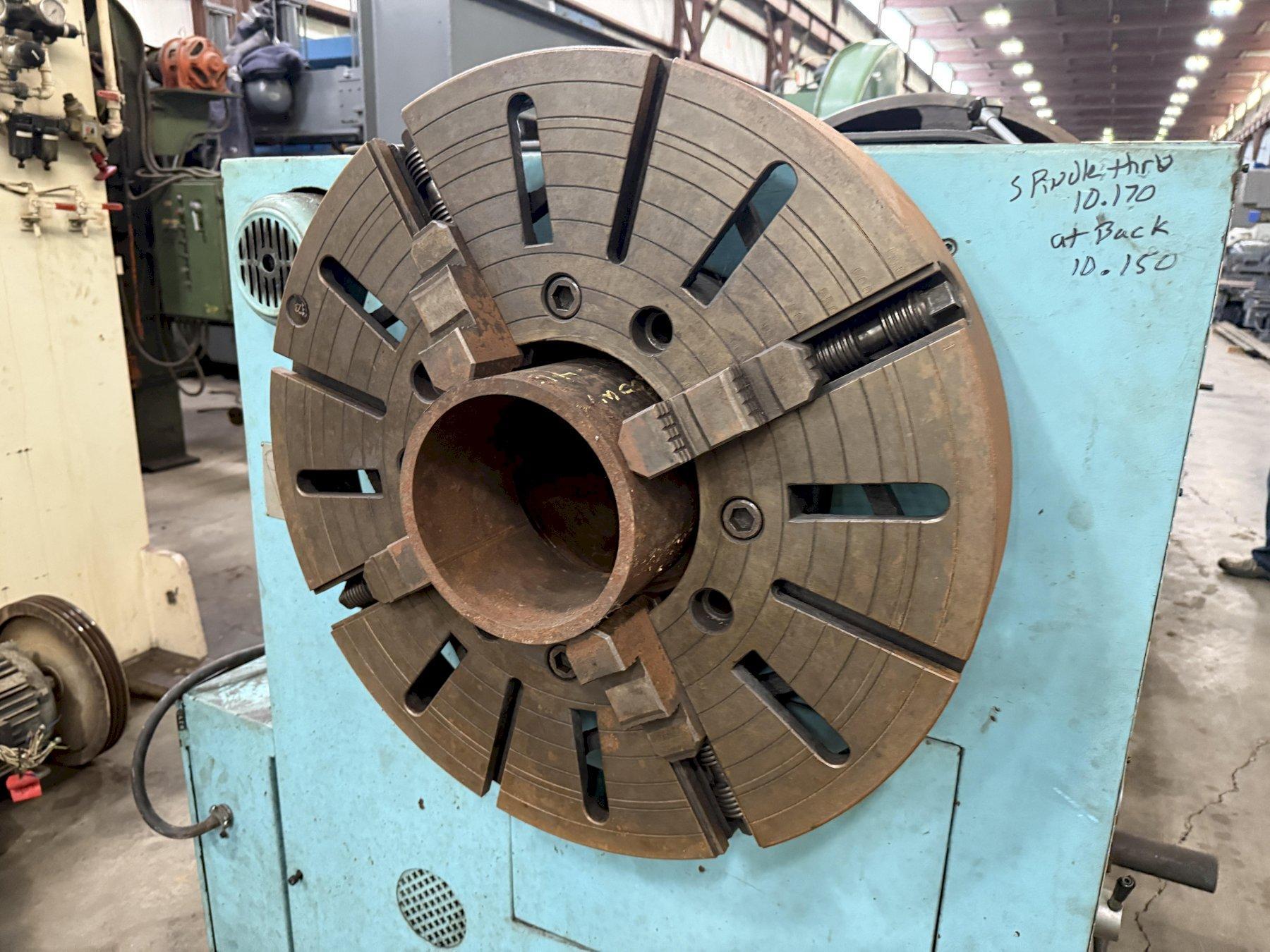

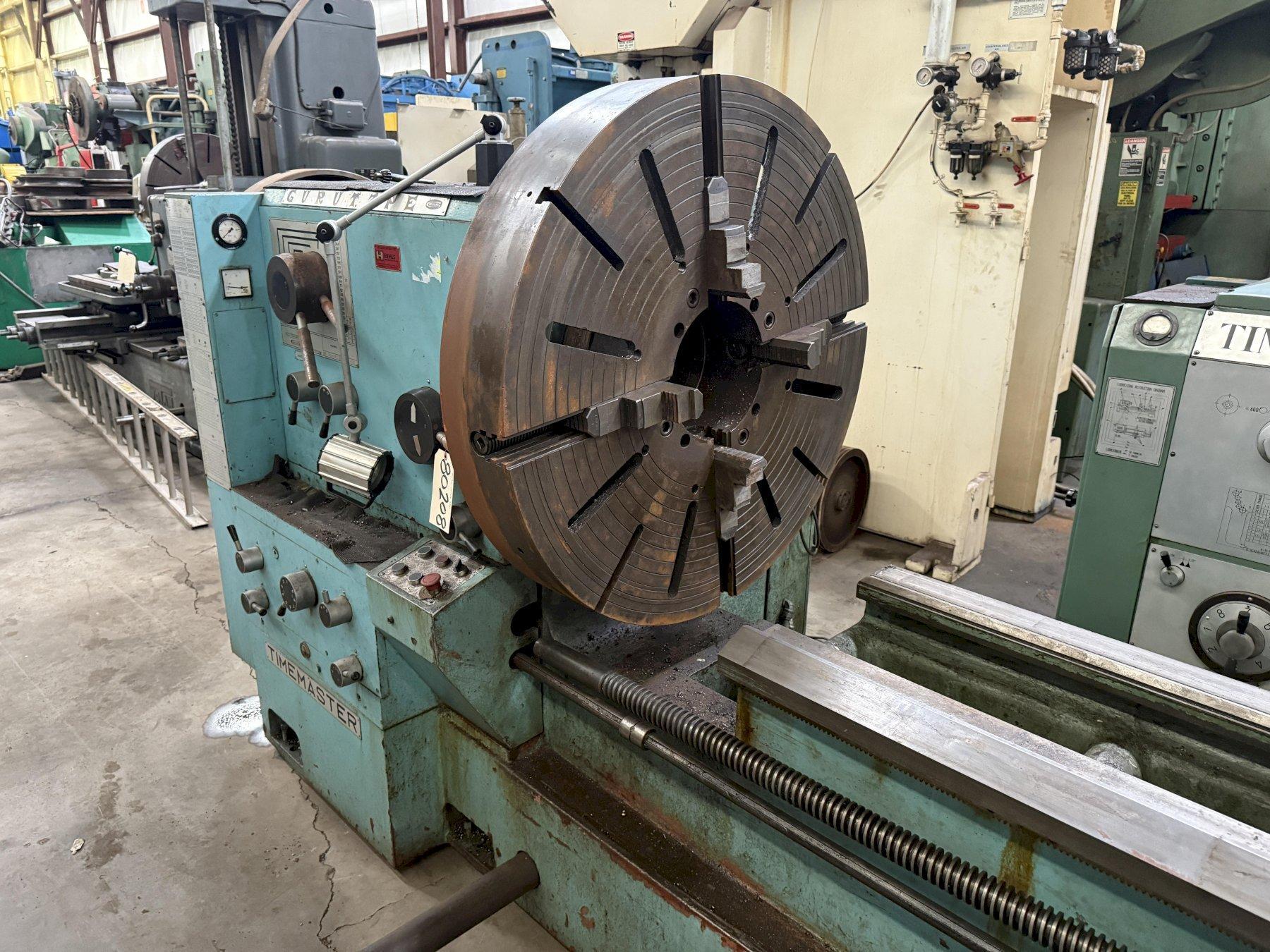

FRONT CHUCK .................... 39-3/4" 4-JAW
REAR CHUCK ..................... 27" 4-JAW
STEADY REST .................... 16" 3 POINT ROLLR
TAPER ATTACHEMENT .............. YES
4-WAY RAPID TRAVERSE ........... YES
COOLANT ........................ YES
DIGITAL READ OUT ............... SONY
MOTOR .......................... 20 HP
