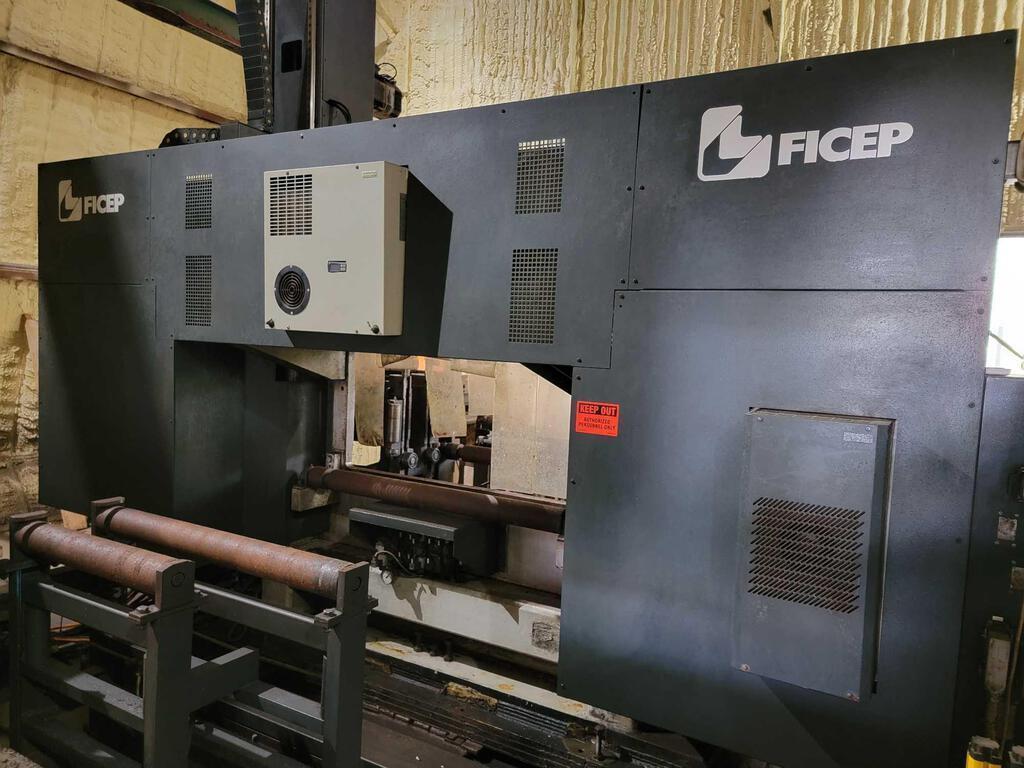

40" FICEP MODEL #1001PZB STRUCTURAL BEAM DRILL & SAW LINE, NEW 2007: STOCK 16591

Stock #: 16591

Equipped With

MODEL 1001DZB
INFEED 65' OF ROLLER TABLE CONVEYOR
OUTFEED 65' OF ROLLER TABLE CONVEYOR
DRILL HEAD ROATES
TOOL CHANGER 5 - HEAD
CAPACITY 40" BEAMS, PLATES, CAHNNEL AND ANGLES
CNC CONTROL


DRILLING CAPACITIES:
DRILL HEADS................. 1
SPINDLES PER DRILL HEAD..... 1
MAXIMUM HOLE DIAMETER....... 2"
SPINDLE ROTATION MOTOR ..... 15 HP
SPINDLE SPEED .............. 180 TO 25OO RPM

SAWING UNIT
MODEL 1045 BH:
SAWING CAPACITY AT 90 DEG (MIN)......... 3-1/8" x 3/8"
SAWING CAPACITY AT 90 DEG (MAX)......... 40" x 17-3/4"
SAWING CAPACITY AT 60 DEG............... 13-3/4" x 13-3/4"
SAWING CAPACITY AT 45 DEG............... 24-3/8" x 17-3/4"
BLADE SIZE (WIDTH X KERF)............... 1.61" x 0.051"
BAND SAW DRIVE MOTOR.................... 7.5 HP
PROGRAMMABLE BLADE SPEED................ 65-328 FPM

I-BEAM:
MIN DEPTH............. 3-1/8"
MAX DEPTH (SAW)....... 40"
MAX DEPTH (DRILL)..... 44"
FLANGE HEIGHT (MIN)... 1-5/8"
FLANGE HEIGHT (MAX)... 17-3/4"

CHANNELS:
MIN DEPTH............. 3-1/8"
MAX DEPTH (SAW)....... 40"
MAX DEPTH (DRILL)..... 44"
FLANGE MIN HEIGHT..... 1-3/4"
FLANGE MAX HEIGHT..... 11-3/4"

ANGLES:
MIN LEG HEIGHT........ 3-1/8" x 3-1/8" x 3/8"
MAX LEG HEIGHT........ 10" x 10" x 1-9/16"

FLATS:
MIN WIDTH............. 4"
MAX WIDTH (SAW)....... 40"
MAX WIDTH (DRILL)..... 44"

SQUARE TUBES:
MIN SIZE.............. 3-1/8" x 3-1/8"
MAX SIZE.............. 17-3/4" x 17-3/4"

RECTANGULAR TUBES:
MIN SIZE.............. 3-1/8" x 1-9/16"
MAX SIZE (SAW)........ 40" x 17-3/4"
MAX SIZE (DRILL)...... 44" x 17-3/4"

ALL BEAMS:
MAX THICKNESS THAT CAN BE DRILLED... 3"
MAX LENGTH TO BE TRANSFERRED........ 60'
MIN LENGTH TO BE TRANSFERRED........ 8'

OTHER SPECIFICATIONS:
SECTION WEIGHT AS STANDARD...... 11,900 LBS
CARRIAGE SPEED.................. 164 FPM
PASSLINE........................ 33-1/2"
