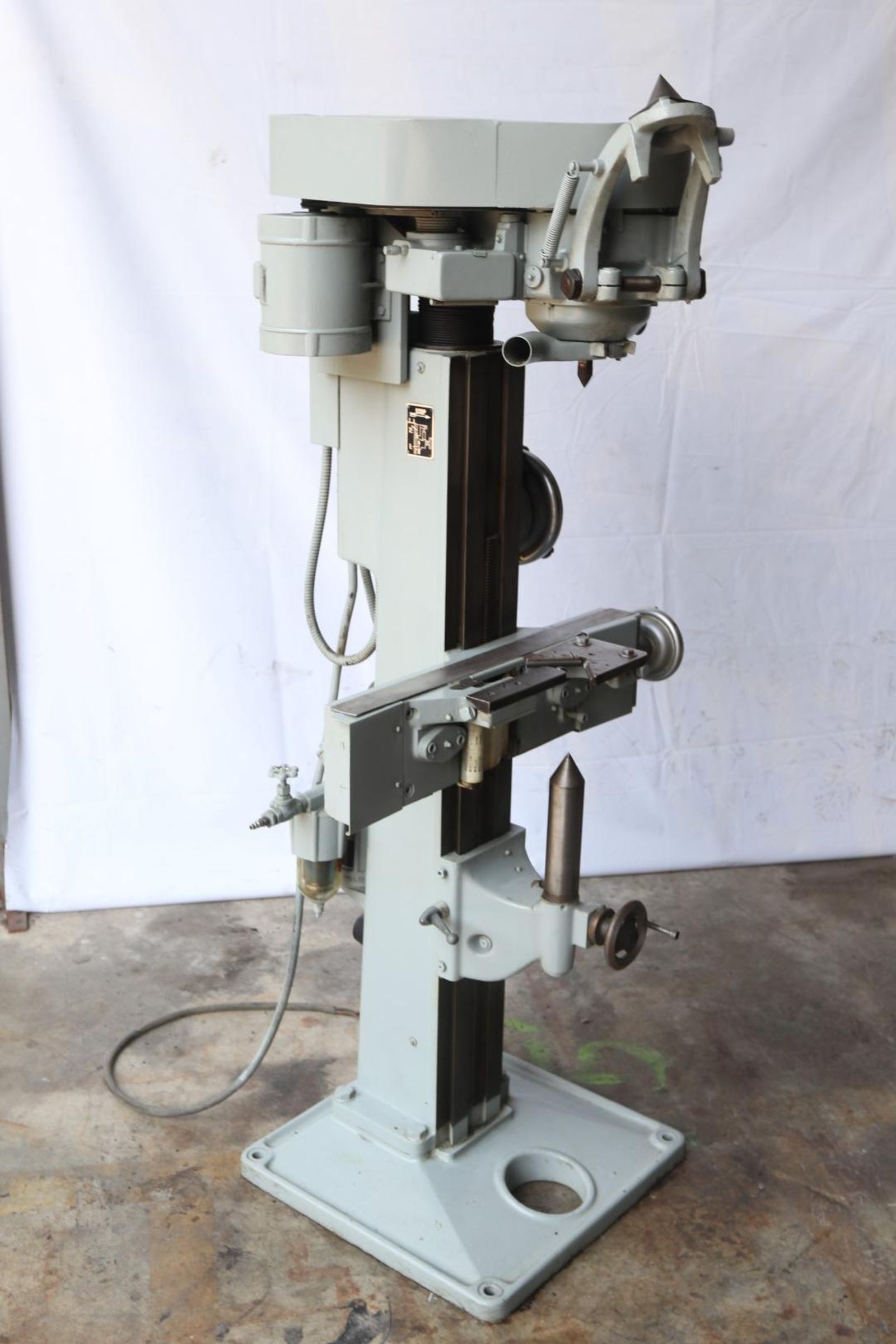

4" x 48" TECHNICA MODEL ZSM-150 CENTER HOLE GRINDER: STOCK #10683

Stock #: 10683

Equipped With

SERIAL ........................ 24175561
MODEL ......................... ZSM-150
WORKPIECE LENGTH .............. 2" TO 48"

WORKPIECE DIAMETER ............ .315" TO 4.92"
SPINDLE SPEEDS ................ (3)  13000, 22500, 45000 RPM
HOLLOW QUIL SPEED ............. 400 RPM
MOTOR ......................... 1/3 HP
QUILL MOTOR ................... 1/4 HP


Equipped With:
Complete Electrical Controls
Hollow Quill Grinding Spindle
Swing Down Grinding Cone Dressing Device
Rapid And Fine Handwheel Adjustment Of Work
Adjustable Tailstock Center
Swing Down Upper Center

Buy Machines

4" x 48" TECHNICA MODEL ZSM-150 CENTER HOLE GRINDER: STOCK #10683

Stock # 10683

Share Machine
Print Details

Machine Specifications

SERIAL ........................ 24175561
MODEL ......................... ZSM-150
WORKPIECE LENGTH .............. 2" TO 48"

WORKPIECE DIAMETER ............ .315" TO 4.92"
SPINDLE SPEEDS ................ (3)  13000, 22500, 45000 RPM
HOLLOW QUIL SPEED ............. 400 RPM
MOTOR ......................... 1/3 HP
QUILL MOTOR ................... 1/4 HP


Equipped With:
Complete Electrical Controls
Hollow Quill Grinding Spindle
Swing Down Grinding Cone Dressing Device
Rapid And Fine Handwheel Adjustment Of Work
Adjustable Tailstock Center
Swing Down Upper Center

Specifications
Weight 1300 pounds
