SERIAL ...... 101110
NEW ......... 2007
MODEL ....... APK-101
CAPACITY .... 4" X 4" X 3/8"
Roll Diameter: 12.4″
Shaft Diameter: 3.94″
Bending Speed: 18′ /Min.
Motor: 15 HP
Capacities:
Angle, Leg Out:
| Specifications | ||
|---|---|---|
| Dimensions | 58.8″ x 64.8″ x 82.8″ | |
| Weight | 5000 ounces | |

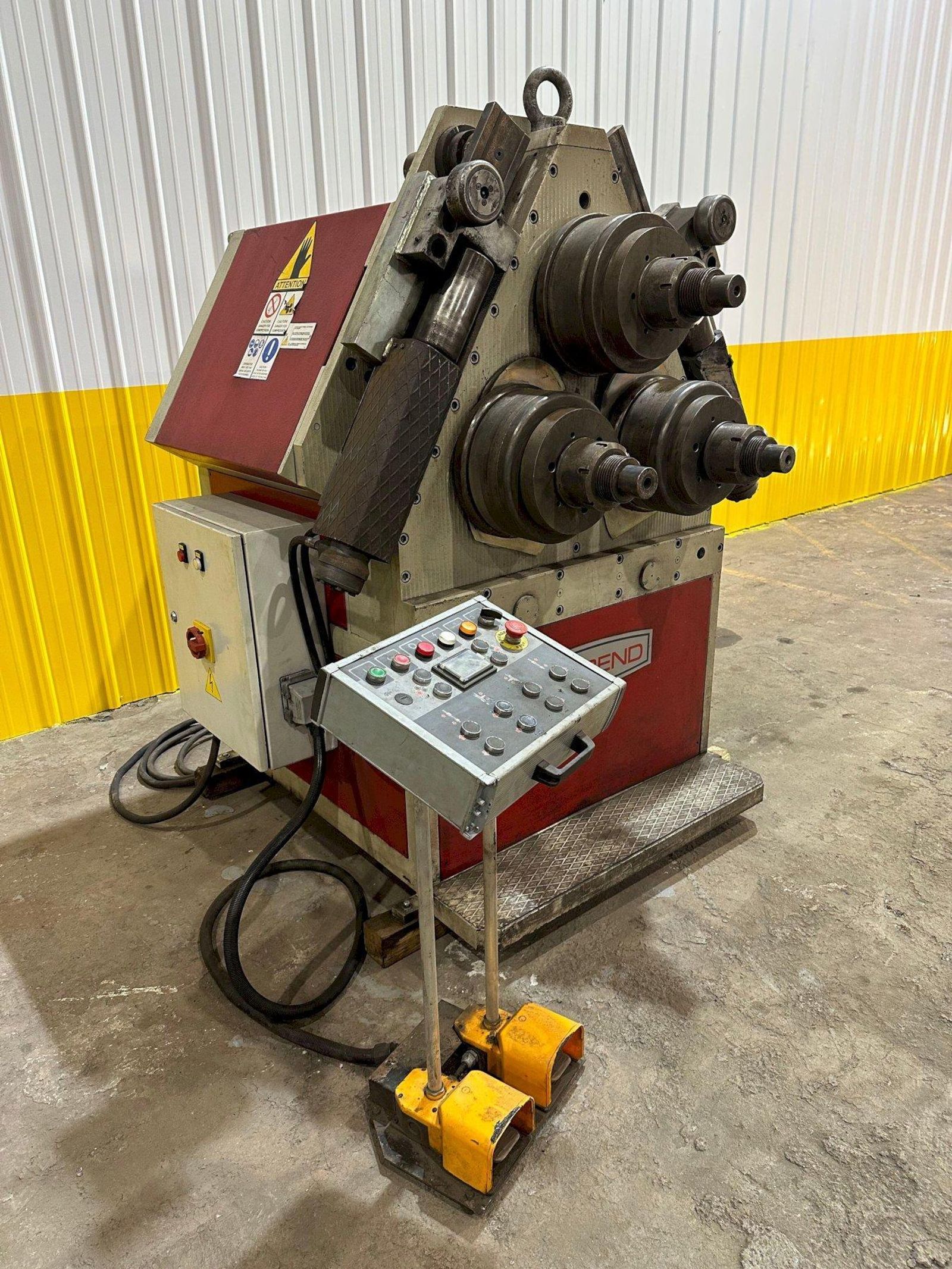

Brand
AKYAPAK
Type
Rolls, Angle Bending
Stock No.
19779
 |
419-269-2000 |
Stock #: 19779
SERIAL ...... 101110
NEW ......... 2007
MODEL ....... APK-101
CAPACITY .... 4" X 4" X 3/8"
Roll Diameter: 12.4″
Shaft Diameter: 3.94″
Bending Speed: 18′ /Min.
Motor: 15 HP
Capacities:
Angle, Leg Out:2″ x 2″ x 1/4″, 28″ Min. Diameter
4″ x 4″ x 3/8″, 55″ Min. Diameter
Angle, Leg In:
2″ x 2″ x 1/4″, 32″ Min. Diameter
4″ x 4″ x 3/8″, 63″ Min. Diameter
Flat, Hard Way:
1 1/2″ x 3/8″, 16″ Min. Diameter
4″ x 1″, 63″ Min. Diameter
Flat, Easy Way:
2″ x 3/8″, 16″ Min Diameter
7 1/2″ x 1 3/8″, 40″ Min. Diameter
Solid Square:
1″, 16″ Min. Diameter
2 3/8″, 40″ Min. Diameter
Solid Round:
1 1/2″, 16″ Min. Diameter
2 3/4″, 32″ Min. Diameter
Tube:
2″ x 0.79 Wall, 24″ Min. Diameter
5 1/2″ x 0.118 Wall, 118″ Min. Diameter
Pipe:
2″ Sch. 40, 16″ Min. Diameter
4″ Sch. 40, 63″ Min. Diameter
Square Tube:
2″ x 0.100 Wall, 20″ Min. Diameter
4″ x 0.196 Wall, 157″ Min. Diameter
