Machine Information

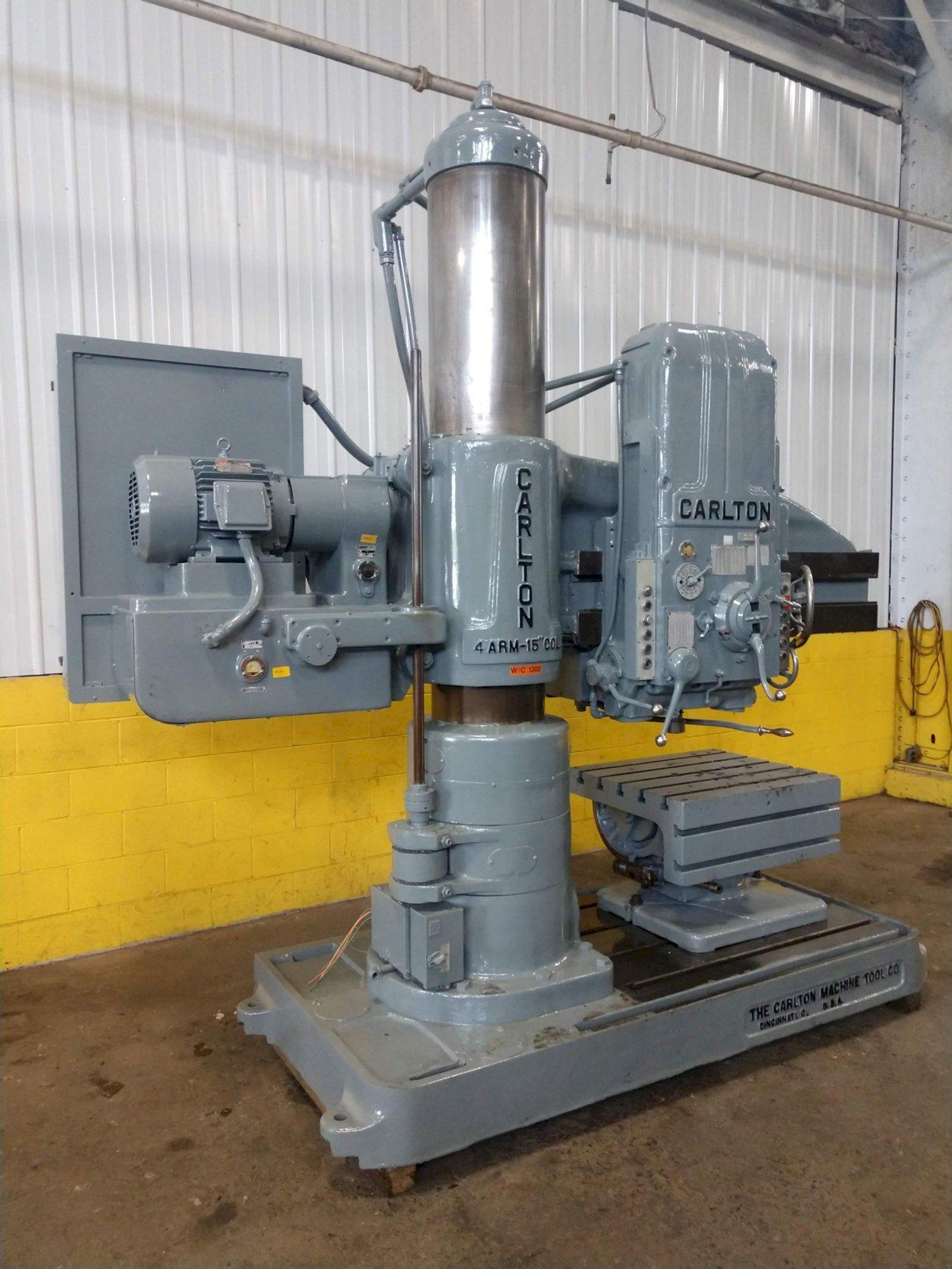

4' X 15" CARLTON MODEL 3A RADIAL ARM DRILL: STOCK #14210

Stock #: 14210

Equipped With

MODEL ............................ 3A
SPINDLE SPEEDS ................... (36) 15 TO 1500 RPM
FEEDS ............................ (18) .004" TO .125"
SPINDLE TRAVEL ................... 18"
DIAMETER OF SPINDLE .............. 3-3/16"
TAPER IN SPINDLE ................. #5MT
MIN CENTER OF SPINDLE TO COLUMN .. 15"
MAX CENTER OF SPINDLE TO COLUMN .. 4'
MIN DISTANCE SPINDLE TO BASE ..... 10-1/2" MIN,
MAX MIN DISTANCE SPINDLE TO BASE . 5'
TRAVEL OF HEAD ON ARM ............ 32"
TRAVEL OF ARM ON COLUMN .......... 32"
POWER ELEVATION .................. YES
POWER COLUMN CLAMP ............... YES
COOLANT .......................... YES
DRILL TABLE INCLUDED ............. 32" X 28" X 24"
SPINDLE MOTOR .................... 10 HP

4' X 15" CARLTON MODEL 3A RADIAL ARM DRILL: STOCK #14210

Stock # 14210

Request a Quote

Share Machine

Print Details

Make an Offer























Download Images

View All Images

Machine Specifications

MODEL ............................ 3A
SPINDLE SPEEDS ................... (36) 15 TO 1500 RPM
FEEDS ............................ (18) .004" TO .125"
SPINDLE TRAVEL ................... 18"
DIAMETER OF SPINDLE .............. 3-3/16"
TAPER IN SPINDLE ................. #5MT
MIN CENTER OF SPINDLE TO COLUMN .. 15"
MAX CENTER OF SPINDLE TO COLUMN .. 4'
MIN DISTANCE SPINDLE TO BASE ..... 10-1/2" MIN,
MAX MIN DISTANCE SPINDLE TO BASE . 5'
TRAVEL OF HEAD ON ARM ............ 32"
TRAVEL OF ARM ON COLUMN .......... 32"
POWER ELEVATION .................. YES
POWER COLUMN CLAMP ............... YES
COOLANT .......................... YES
DRILL TABLE INCLUDED ............. 32" X 28" X 24"
SPINDLE MOTOR .................... 10 HP
