Machine Information

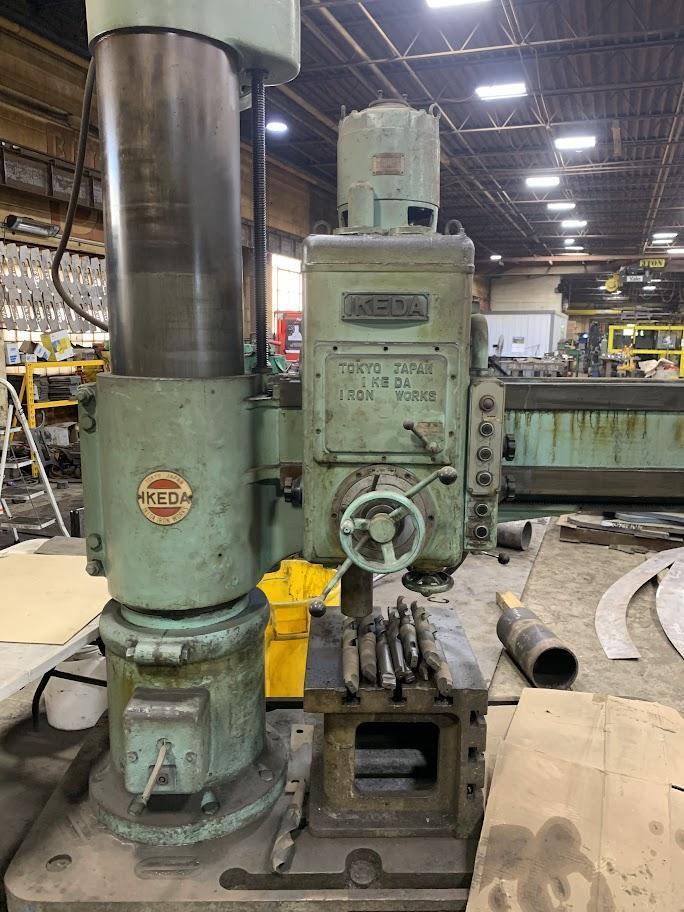

4' X 13" IKEDA MODEL #RM1300 RADIAL DRILL PRESS: STOCK 17077

Stock #: 17077

Equipped With

SERIAL ............................ 6572
MODEL ............................. RM-1300
NEW ............................... 1965
ARM LENGTH X COLUMN DIAMETER ...... 4' X 13-5/8"
AREA OF BASE (T-SLOTTED) .......... 52" X 36"
SPINDLE SPEEDS .................... (12) 30 TO 1440 RPM
SPINDLE FEEDS ..................... .004-.008-.013-.021 IPR
SPINDLE DIAMETER .................. 3-3/8"
SPINDLE STROKE .................... 10"
SPINDLE TAPER ..................... #5 MT
SPINDLE TO COLUMN ................. 10" MIN. / 48" MAX.
SPINDLE TO BASE ................... 15" MIN. / 49" MAX.
BASE HEIGHT ....................... 8-1/2"
COLUMN CLAMPING ................... POWER
ARM ELEVATION ..................... POWER
HEAD TRAVERSE ..................... POWER
COOLANT ........................... YES
SPINDLE MOTOR ..................... 5 HORSEPOWER
