Machine Information

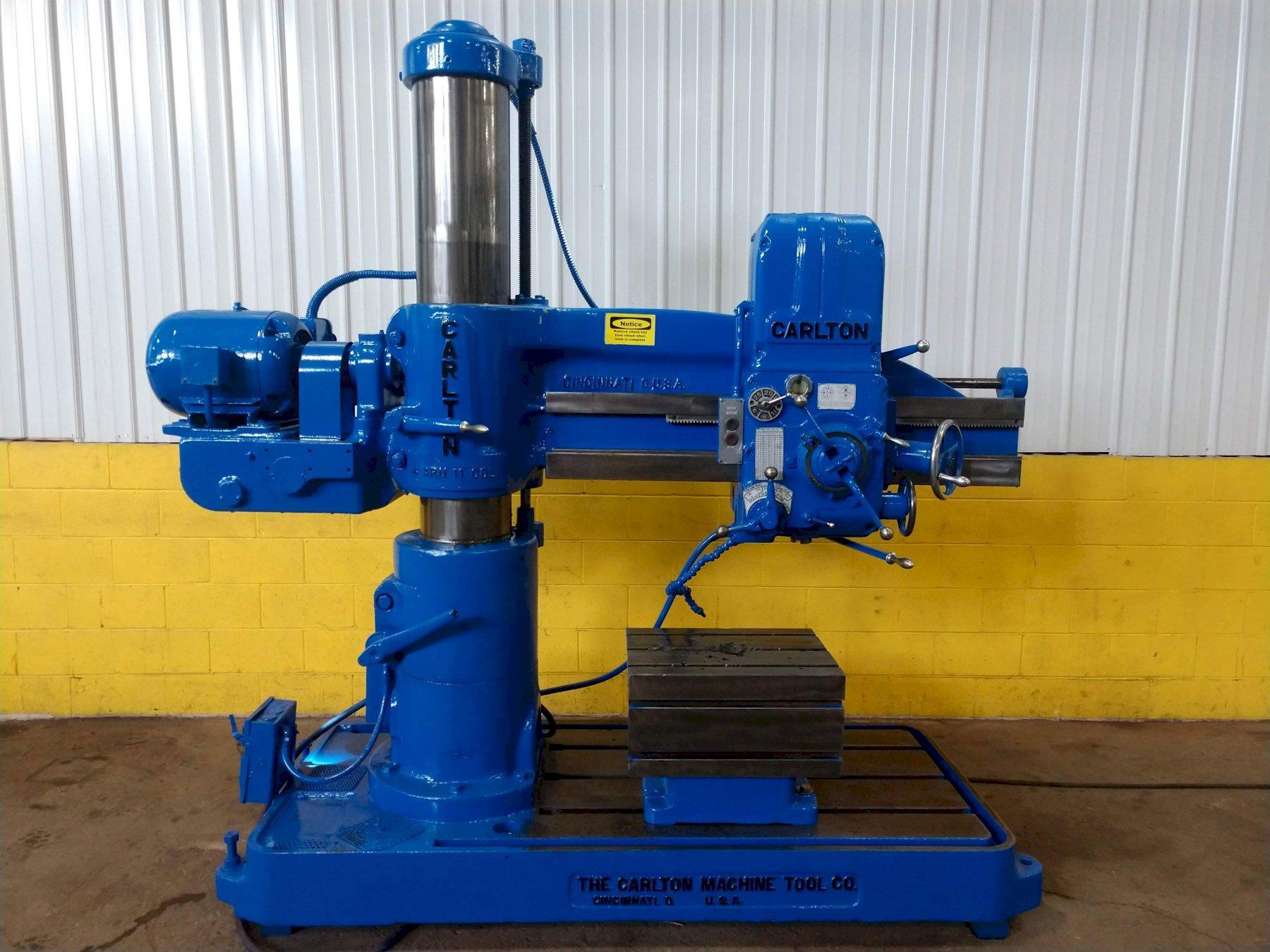

4' X 11" CARLTON MODEL #1A RADIAL ARM DRILL: STOCK #14451

Stock #: 14451

Equipped With

SERIAL ..................... 1A 2645
MODEL ...................... 1A
LENGTH OF ARM .............. 48"
COLUMN DIAMETER ............ 11"
WORKING SURFACE OF BASE .... 54" X 36"
SPINDLE SPEEDS ............. (12) 80 TO 1500 RPM
FEEDS ...................... (6) .006 TO .025 IPR
SPINDLE TRAVEL ............. 12"
TAPER IN SPINDLE ........... #4MT
DIAMETER OF SPINDLE ........ 2-1/2"
DISTANCE SPINDLE TO BASE ... 26" MINIMUM, 54" MAXIMUM
TRAVEL OF ARM ON COLUMN .... 28-1/2"
TRAVEL OF HEAD ON ARM ...... 39"
POWER COLUMN CLAMP.......... YES
POWER ELEVATION ............ YES
COOLANT .................... YES
DRILL TABLE INCLUDED ....... YES
MOTOR ...................... 5 HORSEPOWER

Buy Machines

4' X 11" CARLTON MODEL #1A RADIAL ARM DRILL: STOCK #14451

Stock # 14451

Share Machine
Print Details

Machine Specifications

SERIAL ..................... 1A 2645
MODEL ...................... 1A
LENGTH OF ARM .............. 48"
COLUMN DIAMETER ............ 11"
WORKING SURFACE OF BASE .... 54" X 36"
SPINDLE SPEEDS ............. (12) 80 TO 1500 RPM
FEEDS ...................... (6) .006 TO .025 IPR
SPINDLE TRAVEL ............. 12"
TAPER IN SPINDLE ........... #4MT
DIAMETER OF SPINDLE ........ 2-1/2"
DISTANCE SPINDLE TO BASE ... 26" MINIMUM, 54" MAXIMUM
TRAVEL OF ARM ON COLUMN .... 28-1/2"
TRAVEL OF HEAD ON ARM ...... 39"
POWER COLUMN CLAMP.......... YES
POWER ELEVATION ............ YES
COOLANT .................... YES
DRILL TABLE INCLUDED ....... YES
MOTOR ...................... 5 HORSEPOWER
