SERIAL ................... 21-32-43207
MODEL .................... MB1806

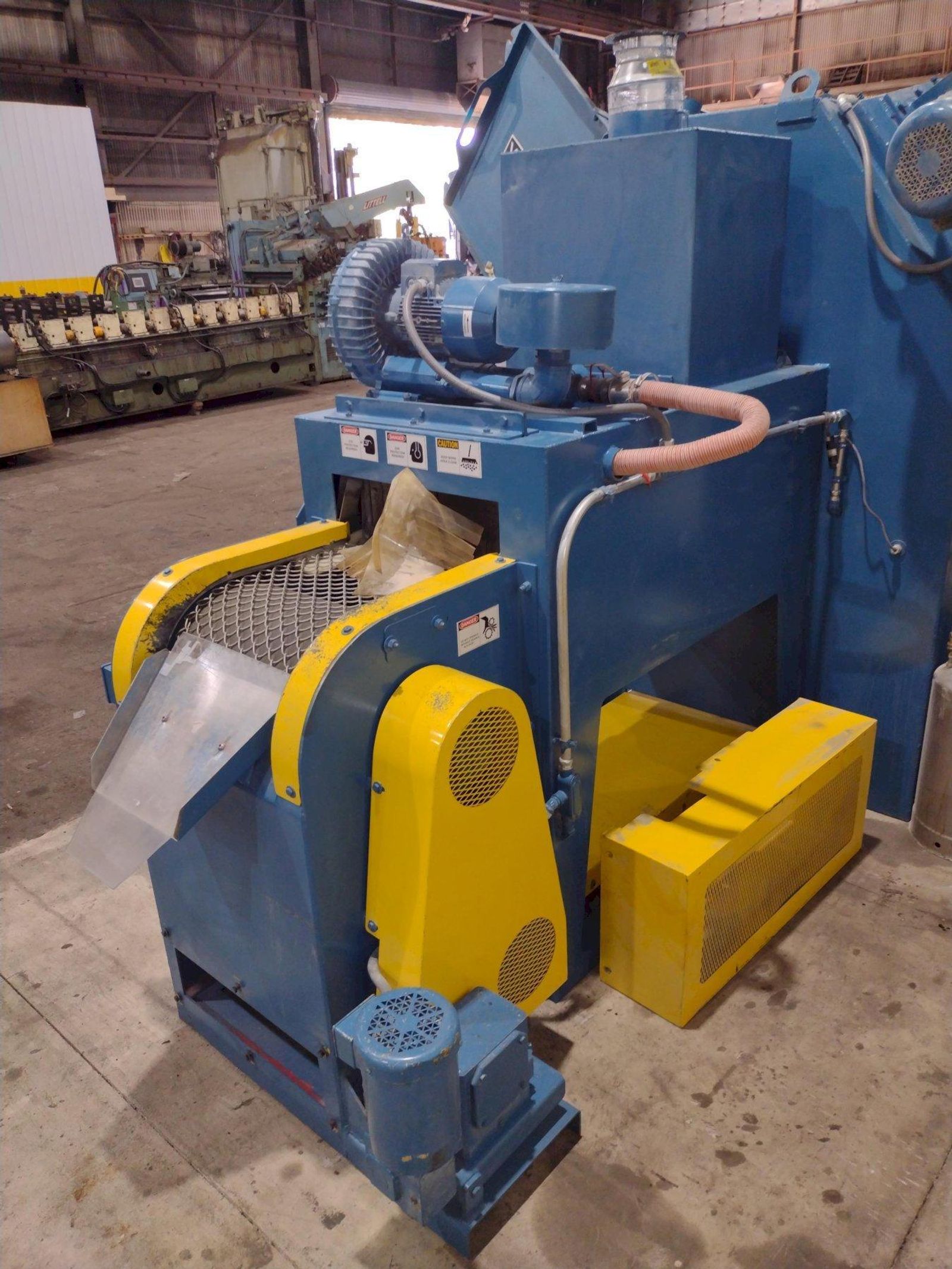

MESH BELT / PART WIDTH ... 18"
PART HEIGHT CAPCITY ...... 6"
PART LENGTH & WIDTH ...... 2.5" X 2.5" MINIMUM
BELT SPEED ............... 3 TO 15 FPM
NUMBER OF BLAST WHEELS ... 4
WHEELS MODEL ............. VK POWERMAX 1300
WHEEL DIAMETER ........... 13"
WHEEL MOTOR .............. 10 HP
SHOT RECLAIM SYSTEM ...... YES

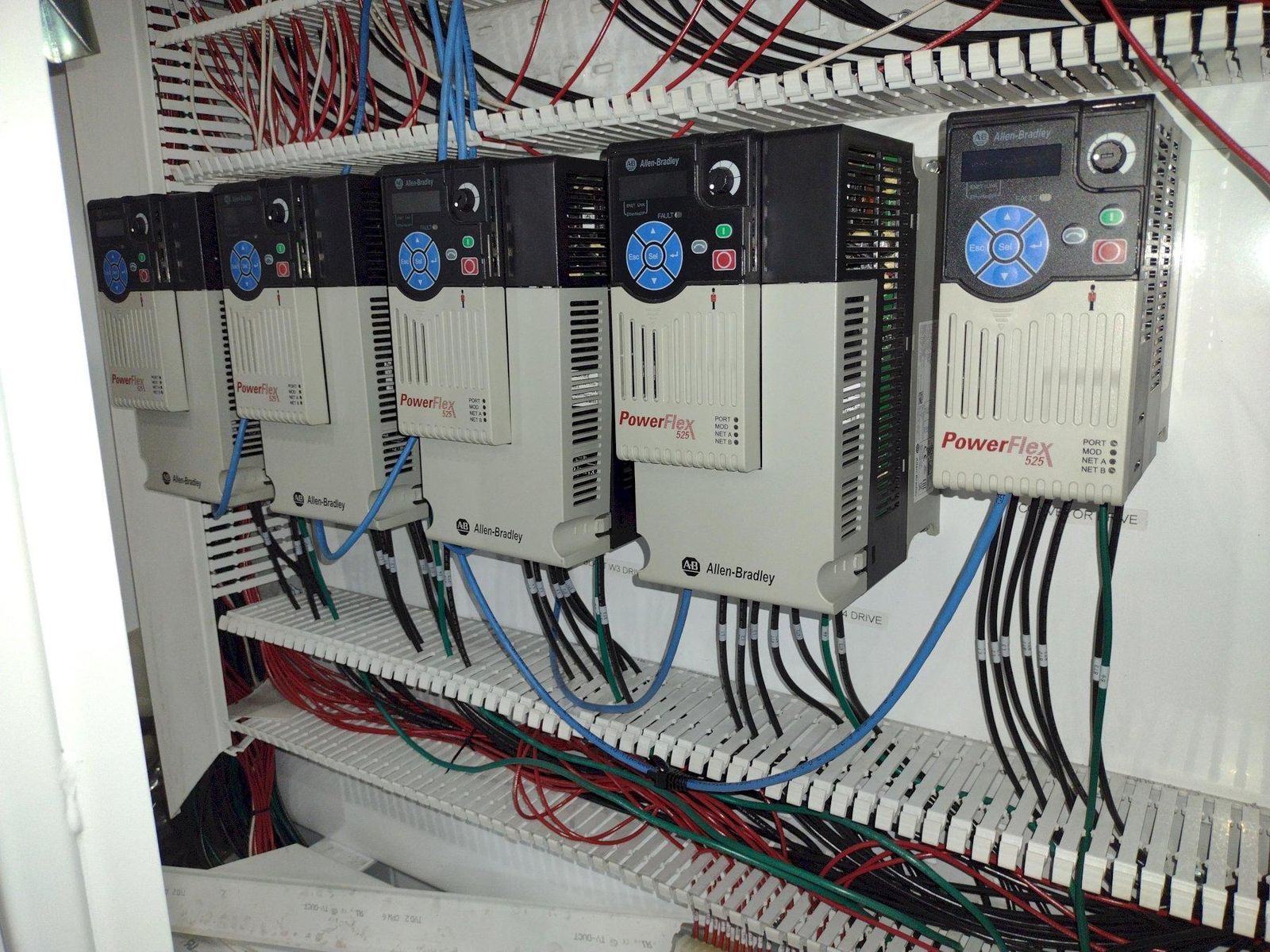

VDF CONTROLS ............. YES
AIR BLOW OFF ............. YES
ANTI-STATIC SRAY SYSTEM .. YES

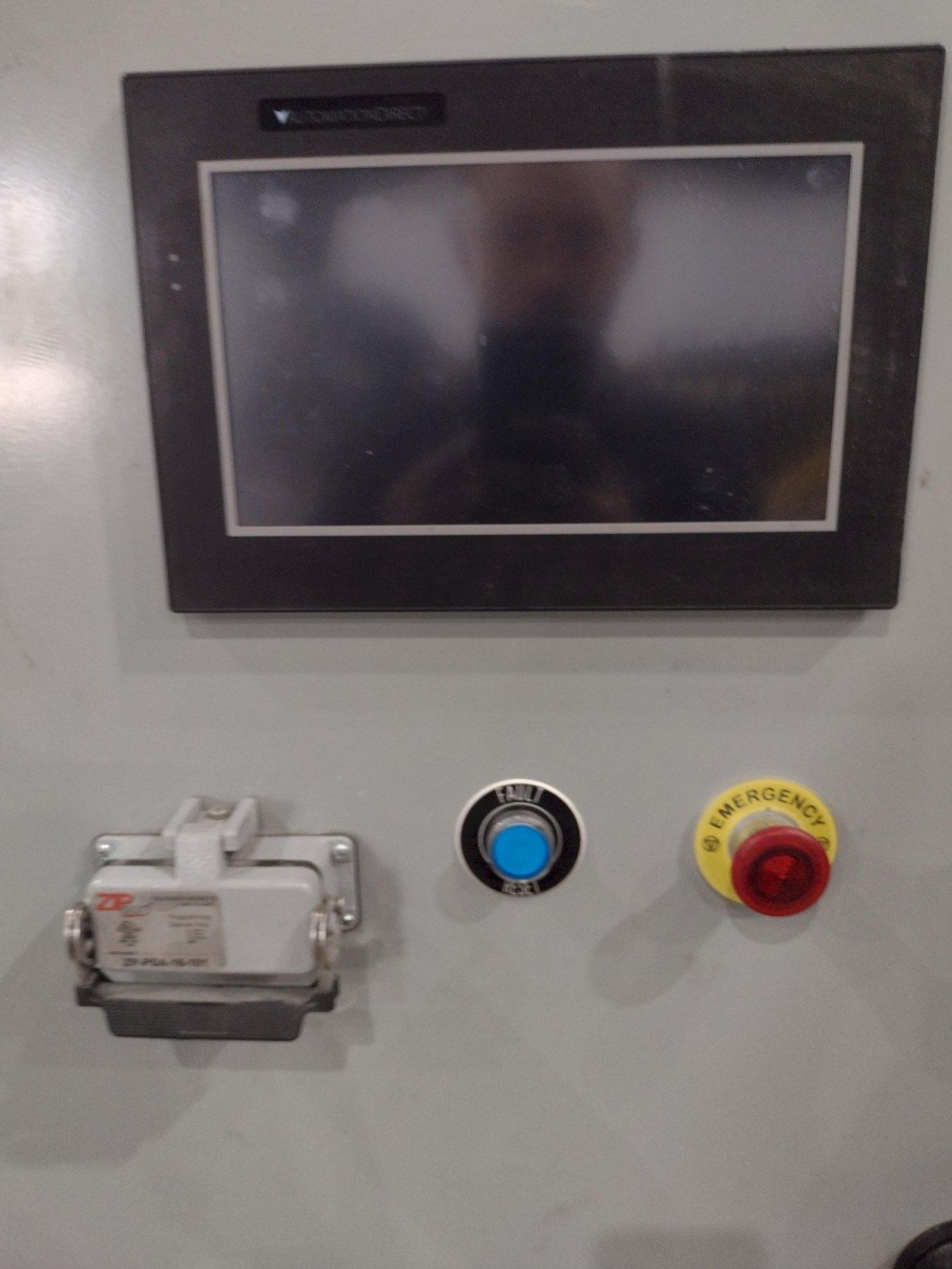

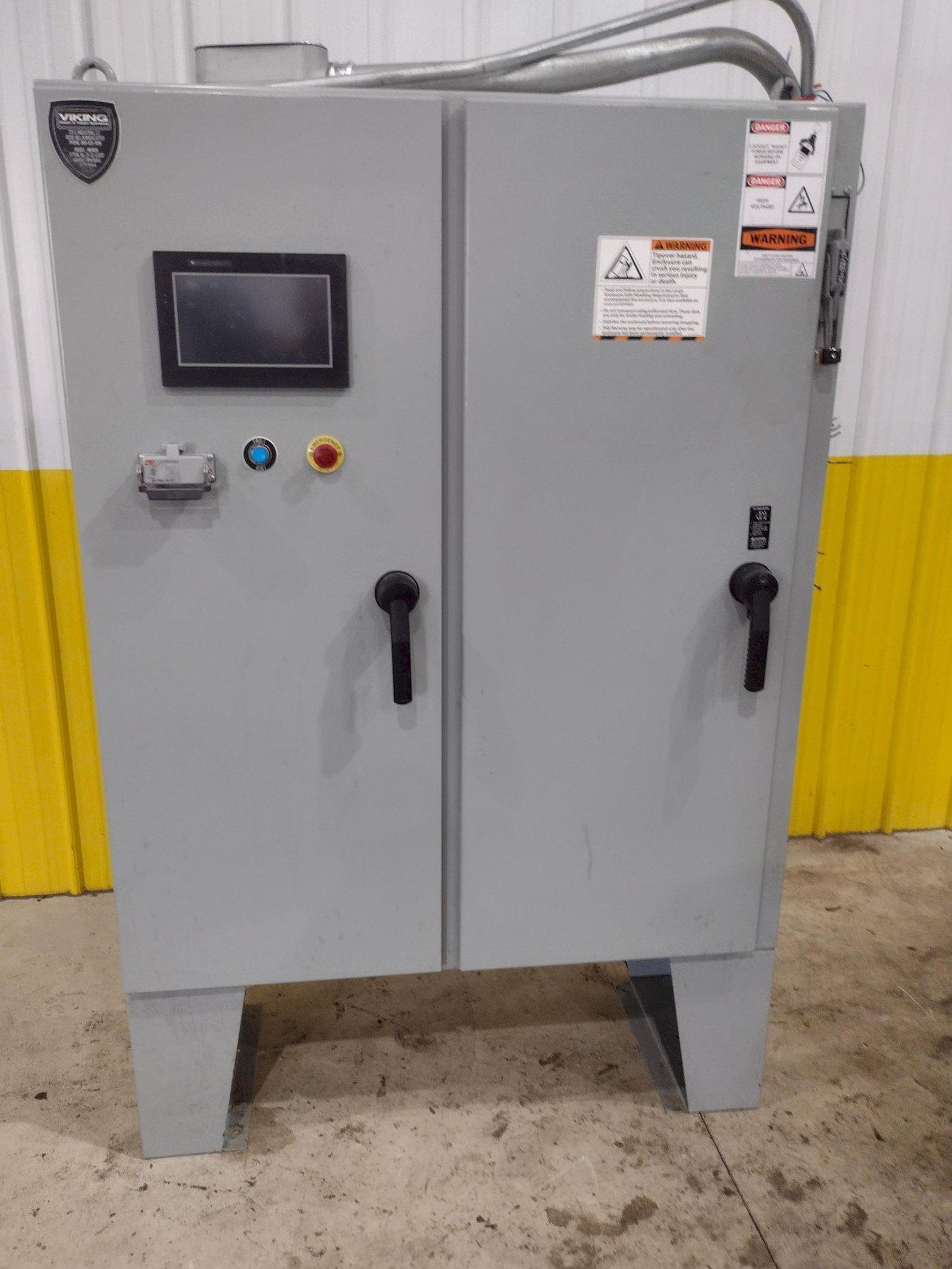

PLC CONTROLS ............. YES
Brand
VIKING
Type
Deflashing Machines
Stock No.
21636
 |
419-269-2000 |
Stock #: 21636
SERIAL ................... 21-32-43207
MODEL .................... MB1806
MESH BELT / PART WIDTH ... 18"
PART HEIGHT CAPCITY ...... 6"
PART LENGTH & WIDTH ...... 2.5" X 2.5" MINIMUM
BELT SPEED ............... 3 TO 15 FPM
NUMBER OF BLAST WHEELS ... 4
WHEELS MODEL ............. VK POWERMAX 1300
WHEEL DIAMETER ........... 13"
WHEEL MOTOR .............. 10 HP
SHOT RECLAIM SYSTEM ...... YES
VDF CONTROLS ............. YES
AIR BLOW OFF ............. YES
ANTI-STATIC SRAY SYSTEM .. YES
PLC CONTROLS ............. YES

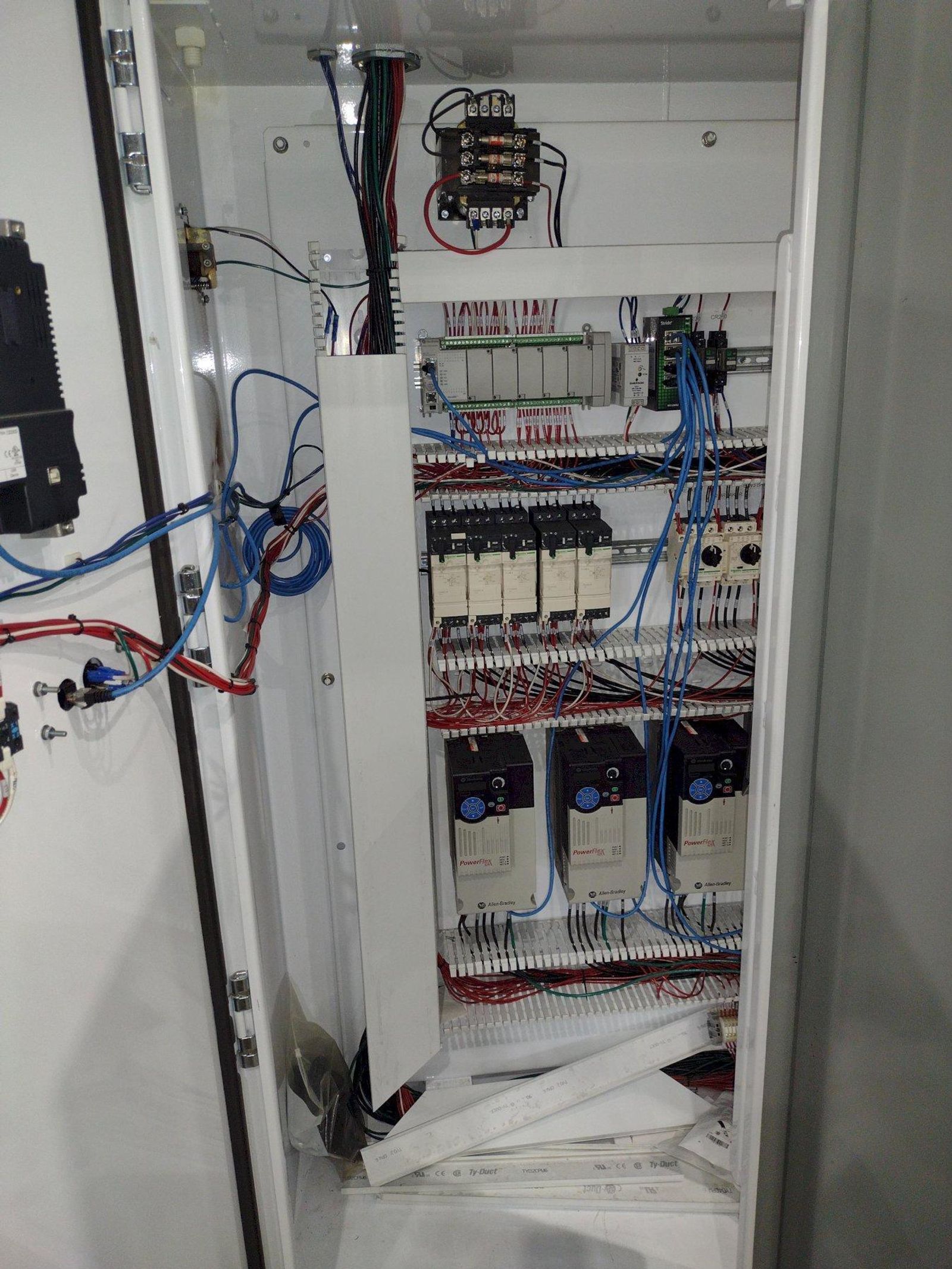

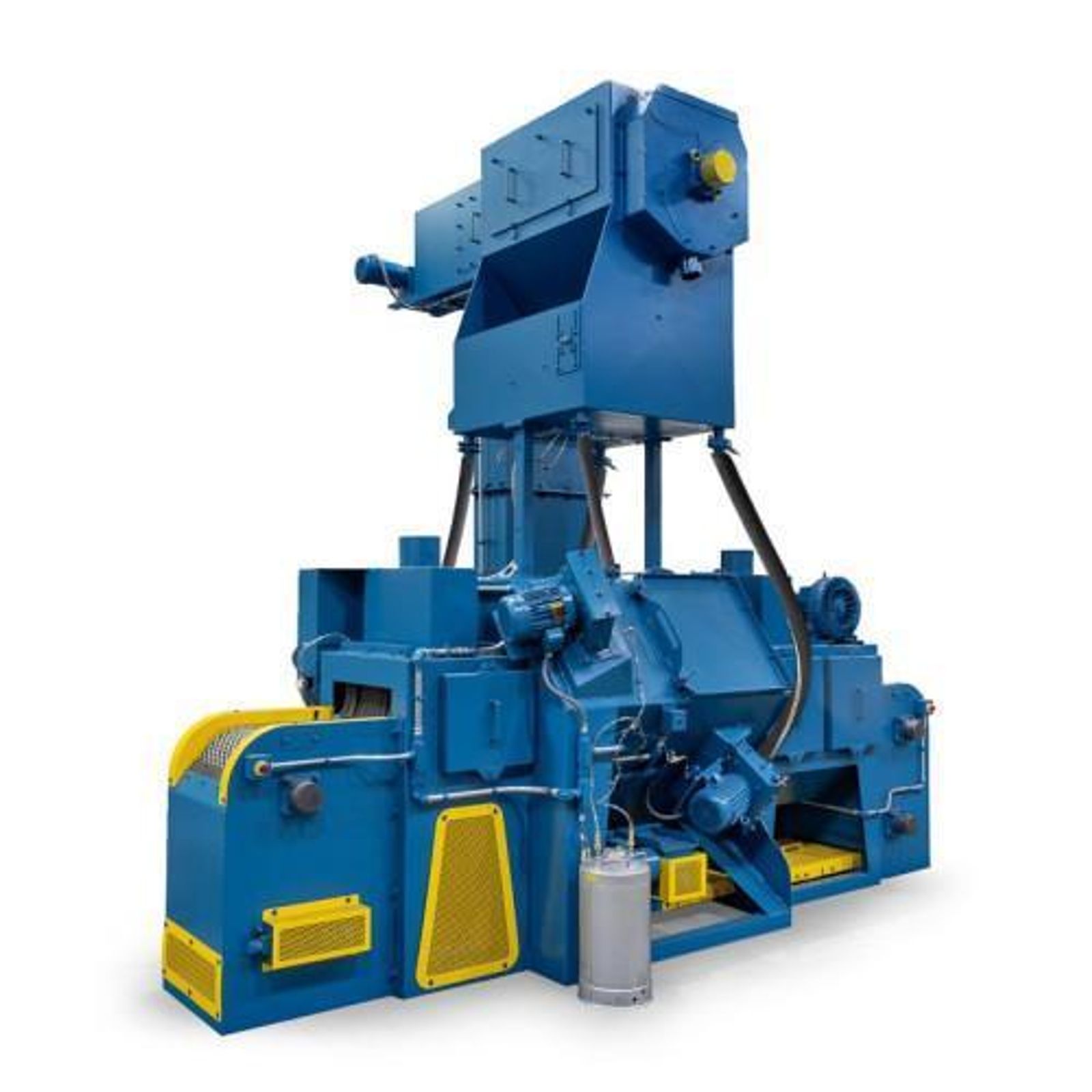

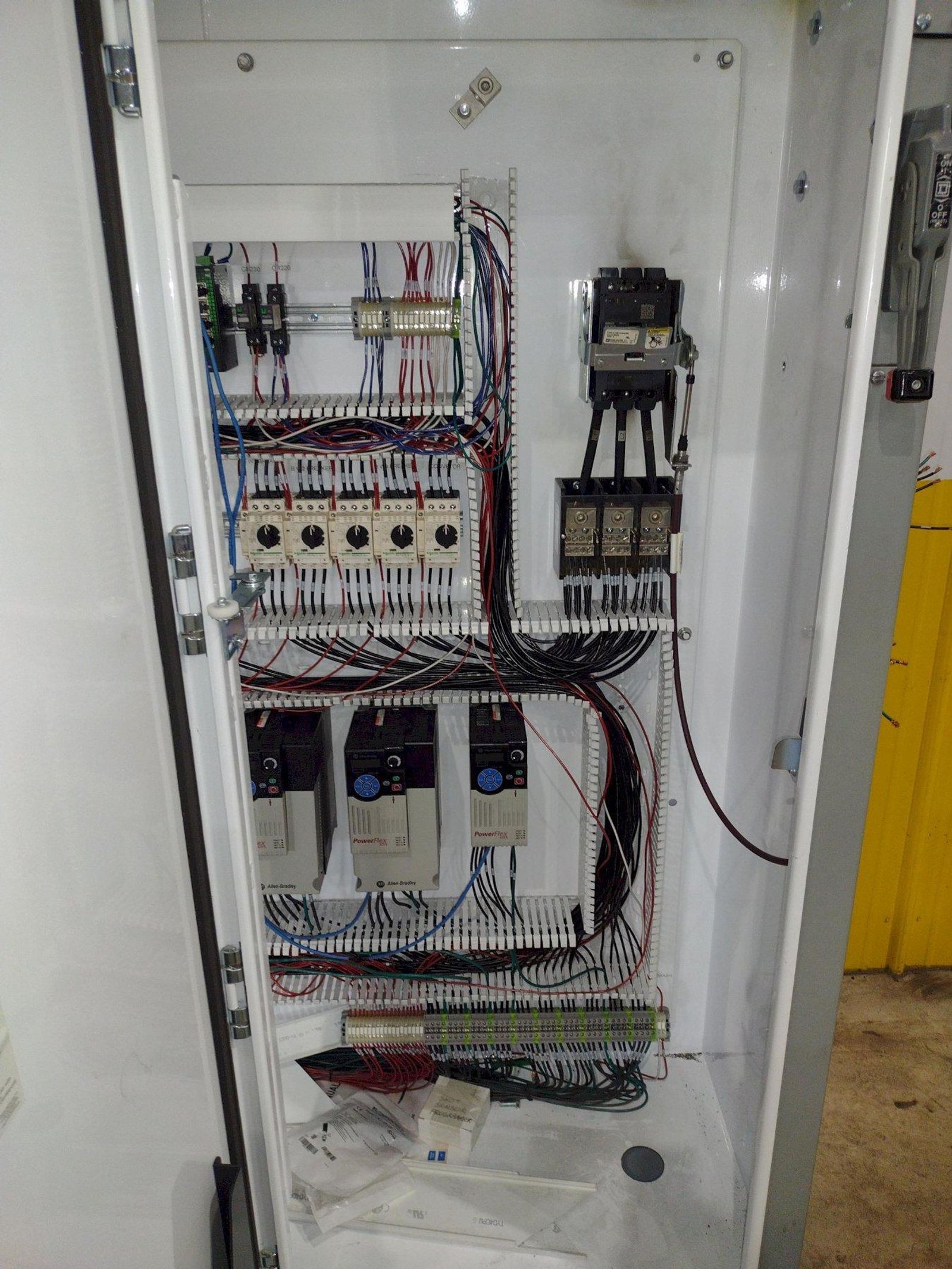

Plastic De-flashing machineThis new series for de-flashing plastic parts has many unique characteristics. The 4 blast wheels are not throwing steel shot but, rather a hard plastic media. This throwing technique requires the shot to have an additional solenoid for each blast wheel to reduce the static charge created during this process. This solenoid triggers a mist of an anti-static media to spray across the abrasive and reduce the static build-up. So, control on the wheel speed through VFD’s for each wheel and control of the mist is critical. These two processes are controlled by the program running in the PLC.
