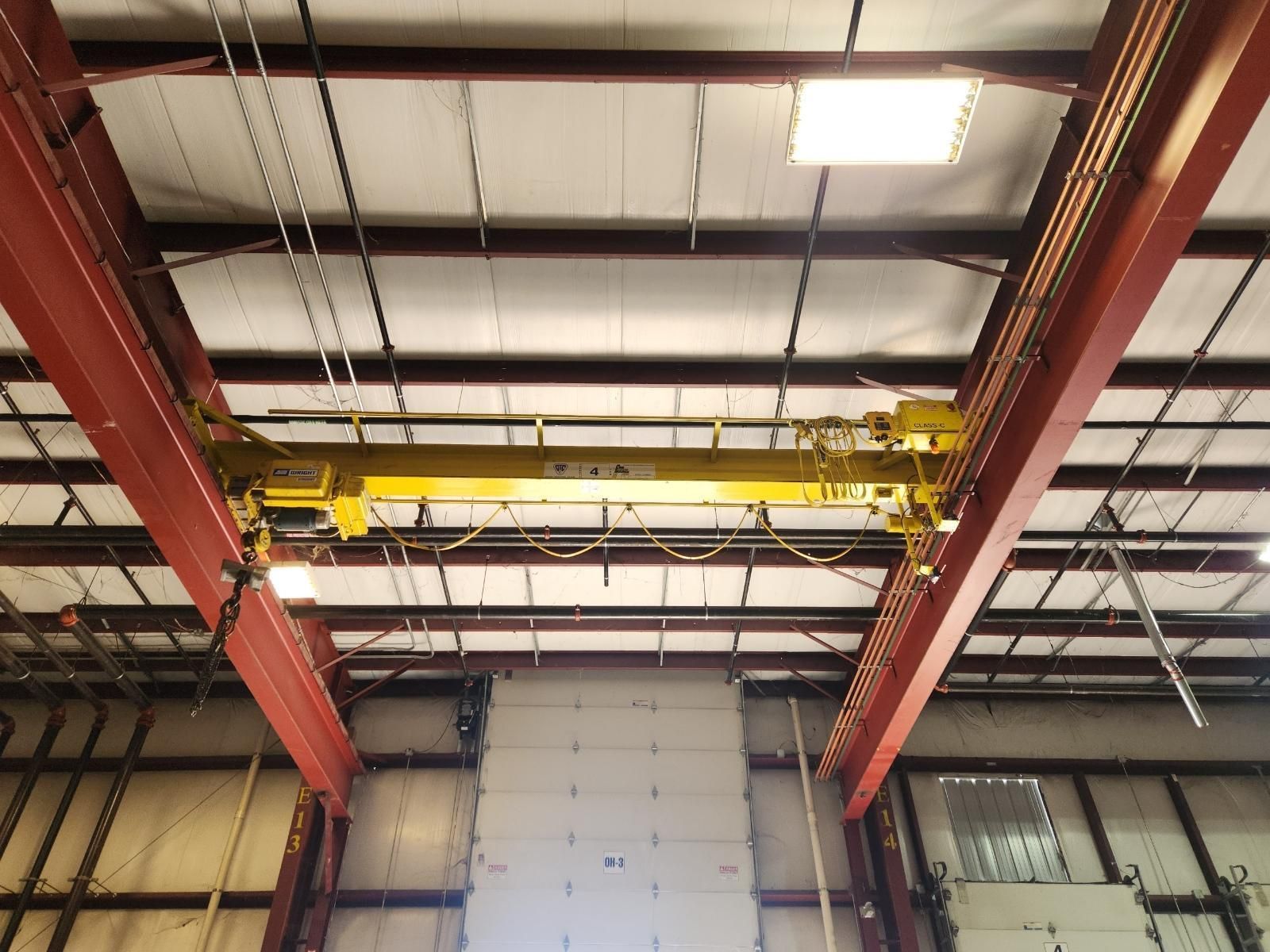

4 TON X 25’W x 100’ x 20’H STAR CRANE FREE STANDING CRANE SYSTEM: STOCK 21284

Stock #: 21284

Equipped With

SERIAL 35-03-6
CAPACITY 4 TON
SPAN 23'6"
TOP RUNNING BRIDGE
SINGLE GIRDER
MAIN I BEAM 10.5" X 17" X 24'3"
END TRUCK WIDTH 64"
INDIVIDUAL END TRUCK DRIVE
WHEELS TO TOP OF BEAM 18"

UNDER SLUNG HOIST ACCO WRIGHT SPEEDMASTER
CLASS C
RADIO CONTROL

FREE STANDING STRUCTURE:
I BEAMS 27" X 10"
LENGTH 98' TOTAL (2 @ 40' AND 2 @ 58')
C CHANNEL CAP 15" X 3.5"
RAIL HEIGHT 3"

UPRIGHTS 6
UPRIGHT DIMENSIONS 8.25" X 6.5" X 250" HIGH
BASE PLATE 12" X 12"

OVERALL RUNWAY HEIGHT 280" (UPRIGHT +BEAM)
