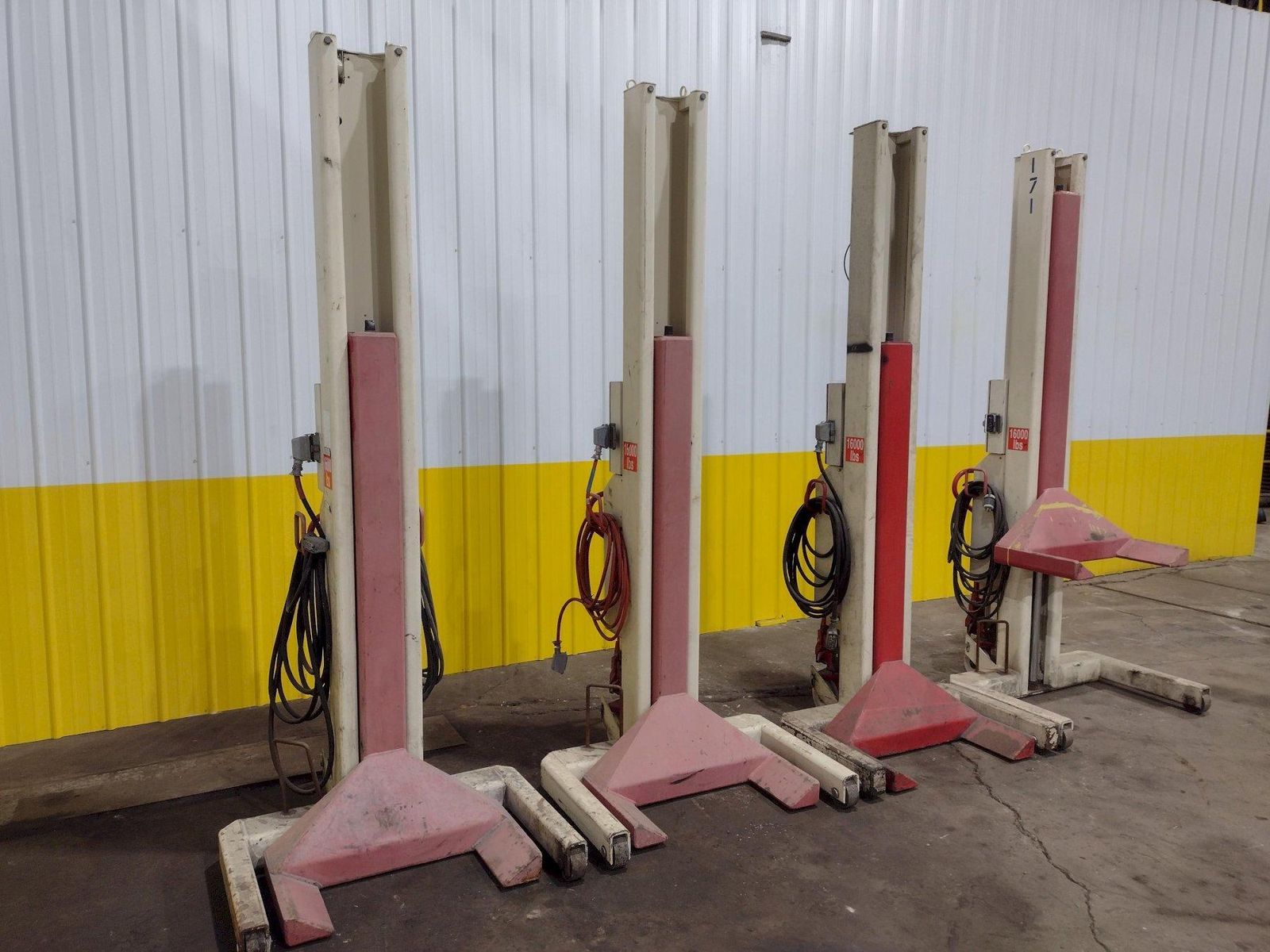

Stock #: 19398
SERIAL .................
MODEL .................. ST-1072
TOTAL NUMBER OF JACKS .. 4
JACK CONFIGERATION ..... 1 MASTER, 3 SLAVES
OPERATING MODES ........ SINGLE, PAIR, ALL
CAPACITY ............... 16,000 LBS EACH
TOTAL CAPACITY ......... 64,000 LBS
MAX LIFT HEIGHT ........ 68-7/8"
LIFTING SPEED .......... 50" PER MIN
LIFTING TIME ........... 83 SECONDS
LOWERING TIME .......... 60 SECONDS
LOWERED COLUMN HEIGHT .. 113"
RAISE HEIGHT ........... 143" MAX
WIDTH OF FRAME LEGS .... 44"
LIFTING FORKS .......... 12" WIDE X 22" CENTER TO CENTER
INTERCONNECTION CABLE .. WIRED
PORTABLE ............... WHEELED BASES
Stock # 19398
SERIAL .................
MODEL .................. ST-1072
TOTAL NUMBER OF JACKS .. 4
JACK CONFIGERATION ..... 1 MASTER, 3 SLAVES
OPERATING MODES ........ SINGLE, PAIR, ALL
CAPACITY ............... 16,000 LBS EACH
TOTAL CAPACITY ......... 64,000 LBS
MAX LIFT HEIGHT ........ 68-7/8"
LIFTING SPEED .......... 50" PER MIN
LIFTING TIME ........... 83 SECONDS
LOWERING TIME .......... 60 SECONDS
LOWERED COLUMN HEIGHT .. 113"
RAISE HEIGHT ........... 143" MAX
WIDTH OF FRAME LEGS .... 44"
LIFTING FORKS .......... 12" WIDE X 22" CENTER TO CENTER
INTERCONNECTION CABLE .. WIRED
PORTABLE ............... WHEELED BASES
| Specifications | ||
|---|---|---|
| Dimensions | 44" X 44" X 113" HIGH, & 1050 LBS EACH | |
