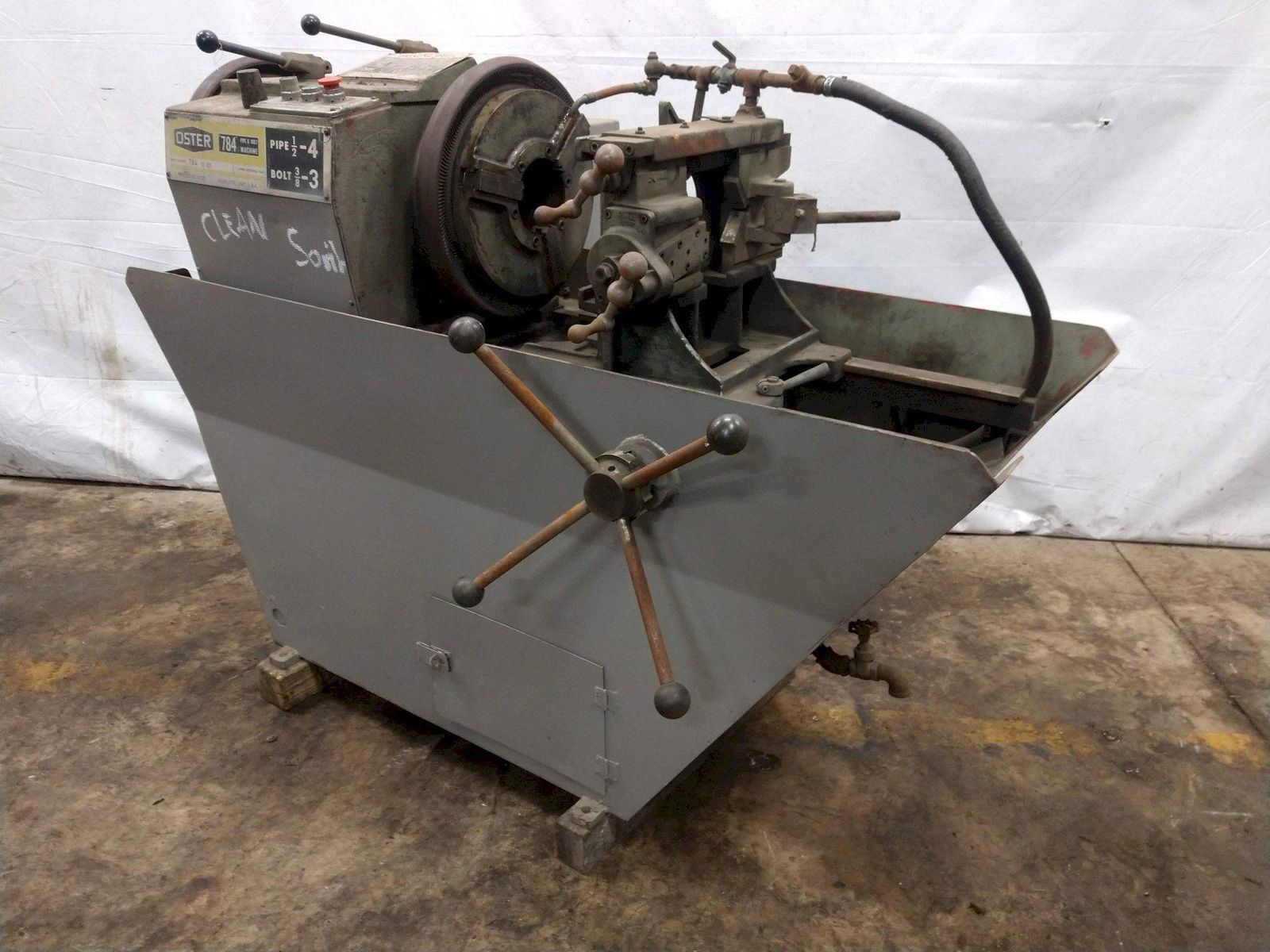

4" OSTER MODEL 784 PIPE & BOLT THREADER: STOCK #12509

Stock #: 12509

Equipped With

SERIAL ................................. 784-XZ-672
MODEL .................................. 784
PIPE CAPACITY .......................... 1/4" TO 4"
BOLT CAPACITY .......................... 3/8" TO 3"
SPEED .................................. 16-23-35-51 RPM STOCK
SPINDLE HOLE CLEARANCE ................. 5" DIAMETER
CARRIAGE TRAVEL ........................ 15"
COOLANT CAPACITY ....................... 5 GALLON
FRONT CHUCK ............................ 3 JAW SELF ADJUSTING UNIVERSAL
REAR CHUCK ............................. 3 JAW SELF ADJUSTING UNIVERSAL
REMOVABLE CHIP TRAY .................... YES
MOTOR .................................. 5 HP


Buy Machines

4" OSTER MODEL 784 PIPE & BOLT THREADER: STOCK #12509

Stock # 12509

Share Machine
Print Details

Machine Specifications

SERIAL ................................. 784-XZ-672
MODEL .................................. 784
PIPE CAPACITY .......................... 1/4" TO 4"
BOLT CAPACITY .......................... 3/8" TO 3"
SPEED .................................. 16-23-35-51 RPM STOCK
SPINDLE HOLE CLEARANCE ................. 5" DIAMETER
CARRIAGE TRAVEL ........................ 15"
COOLANT CAPACITY ....................... 5 GALLON
FRONT CHUCK ............................ 3 JAW SELF ADJUSTING UNIVERSAL
REAR CHUCK ............................. 3 JAW SELF ADJUSTING UNIVERSAL
REMOVABLE CHIP TRAY .................... YES
MOTOR .................................. 5 HP


Specifications
Max Dia. of Thread 4 inches
Min Dia. of Thread .5 millimeters
Dimensions 72 X 45 X 52
Weight 2700 pounds
