Machine Information

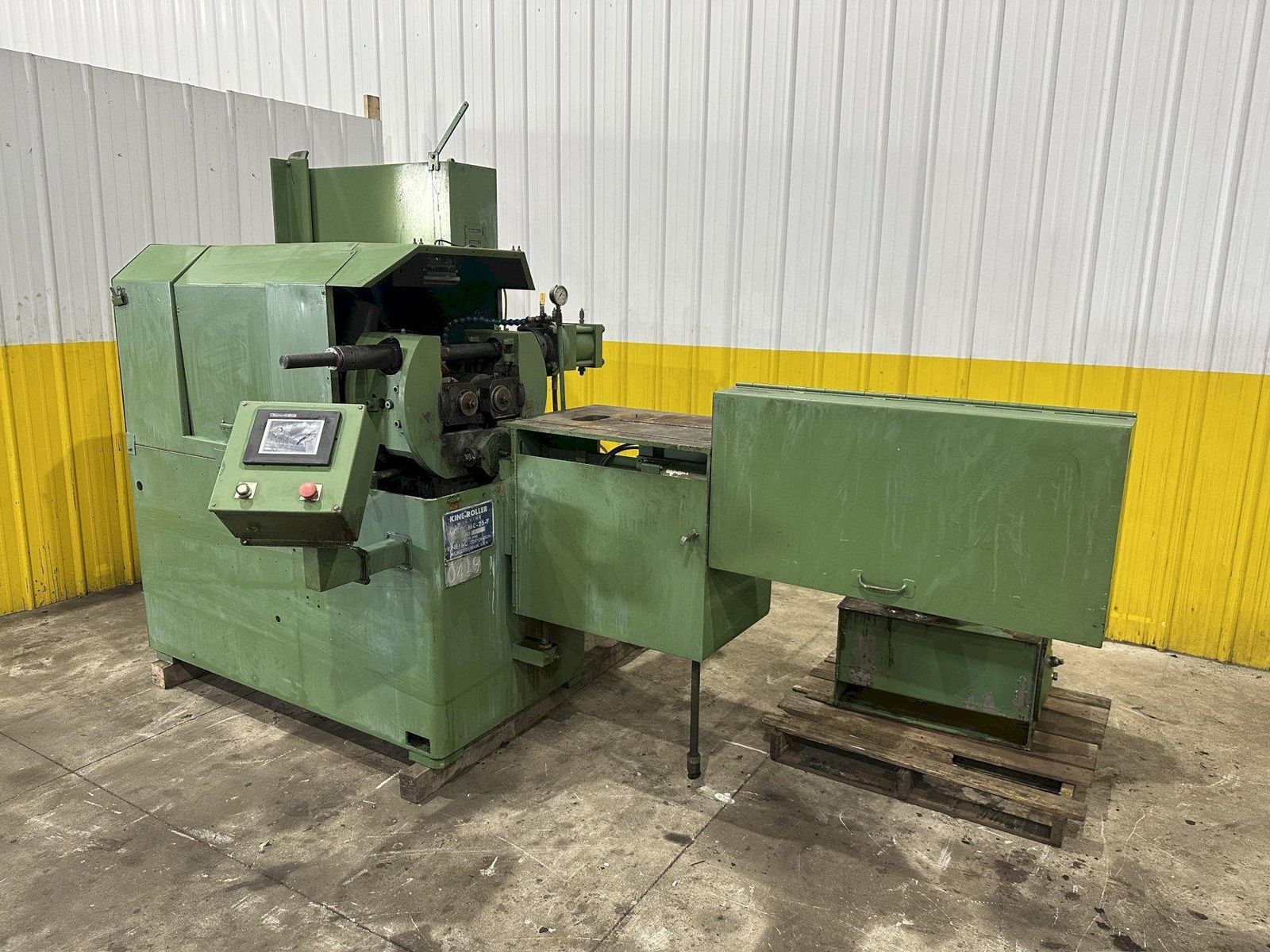

4"" KINEFAC MODEL #MC-25 KINE-ROLLER 2-DIE THREAD ROLLING MACHINE: STOCK #23765

Stock #: 23765

Equipped With

SERIAL .......... I581
MODEL ........... MC-25-F





The Kinefac MC-25-F is a 2-die cylindrical thread rolling machine with a ~2.5" maximum spindle diameter and 25 HP motor, designed for high-precision threading and form rolling of shafts and pins, with capacities including: a 2.5" maximum diameter for various components like threaded rod, ball blanks, and shallow forms; a 2.5" diameter for long thrufeed roll finishing; and a ~4.5" max die length.
Key Specifications









Model: Kinefac MC-25-F
Type: 2-Die Cylindrical Thread Roller
Motor: 25 HP
Spindle Diameter: ~2.5"
Max Die Length: ~4.5"
Throughfeed Capacity: Up to 2.5" diameter
Infeed Capacity: Up to 3" diameter for secondary rolling operations (e.g., UNC threads)
Die Diameter Range: 4.5" to 6"
Spindle Skew Range: 0-12 degrees





Functional Capabilities













Thrufeed and Cutoff Rolling: For simple shafts, pins, ball blanks, and roller blanks.
Bar Processing: For threaded rod and warm rolling.
Shallow Forms: Can produce shallow involute forms, knurls, and fins.
Worm Rolling: Capable of producing worms on parts up to 2" diameter.
Roll Finishing: Used for finishing and denicking on parts up to 2.5" diameter.
Roll Straightening: For parts up to 1.5" diameter.





Features





Self-contained oil bath lubrication for the gearbox.
Precision size adjustment.
Adjustable die clearance.
25 HP motor with a 3" diameter pass-through hole for the die drive system.
Designed for precision and high-quality thread rolling.
