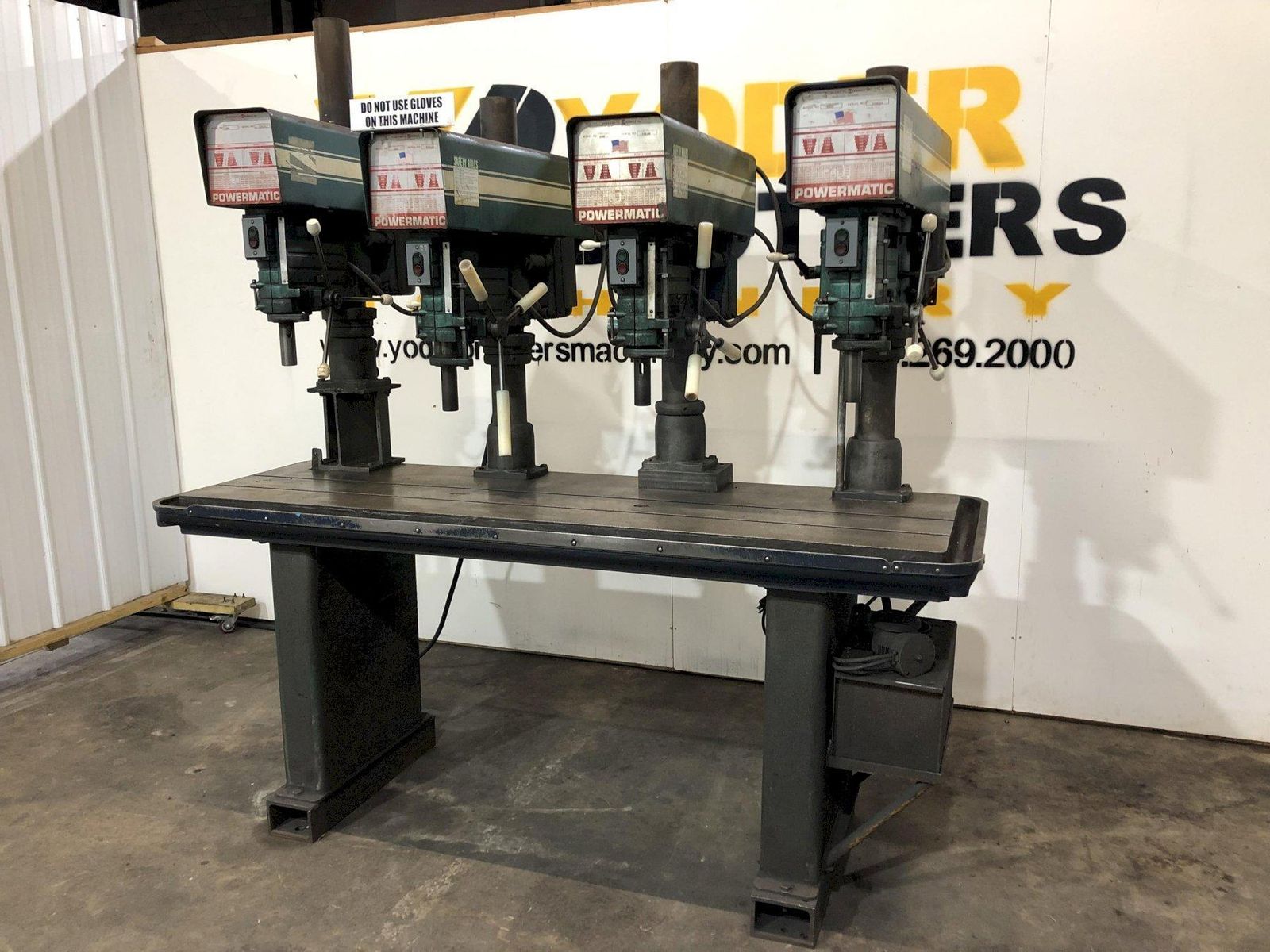

Stock #: 18189
SPINDLE 1 SERIAL ....... 520S152SPINDLE 2 SERIAL ....... 520S153SPINDLE 3 SERIAL ....... 520S155SPINDLE 4 SERIAL ....... 520S154MODEL .................. 1200STROKE ................. 6"SPINDLE CENTER ......... 20"THROAT ................. 10-1/2"
SWING .................. 20"
SPINDLE SPEEDS ......... 160 TO 1500 RPM (VARIABLE)SPINDLE TRAVEL ......... 6"DIAMETER OF SPINDLE .... 2-3/4"TAPER IN SPINDLE ....... #3 MTDIAMETER OF COLUMN ..... 4"RISER .................. 10" ON SPINDLE 1RISER .................. 2" ON SPINDLE 3VERTICAL HEAD TRAVEL ... 10"FLOOR TO TABLE ......... 38" HMOTOR .................. 1-1/2 HP PER HEAD
Stock # 18189
SPINDLE 1 SERIAL ....... 520S152
SPINDLE 2 SERIAL ....... 520S153
SPINDLE 3 SERIAL ....... 520S155
SPINDLE 4 SERIAL ....... 520S154
MODEL .................. 1200
STROKE ................. 6"
SPINDLE CENTER ......... 20"
THROAT ................. 10-1/2"
SWING .................. 20"
SPINDLE SPEEDS ......... 160 TO 1500 RPM (VARIABLE)
SPINDLE TRAVEL ......... 6"
DIAMETER OF SPINDLE .... 2-3/4"
TAPER IN SPINDLE ....... #3 MT
DIAMETER OF COLUMN ..... 4"
RISER .................. 10" ON SPINDLE 1
RISER .................. 2" ON SPINDLE 3
VERTICAL HEAD TRAVEL ... 10"
FLOOR TO TABLE ......... 38" H
MOTOR .................. 1-1/2 HP PER HEAD
| Videos | ||
|---|---|---|
| Specifications | ||
|---|---|---|
| Dimensions | 85"L X 29-3/4"W X 92"H | |
