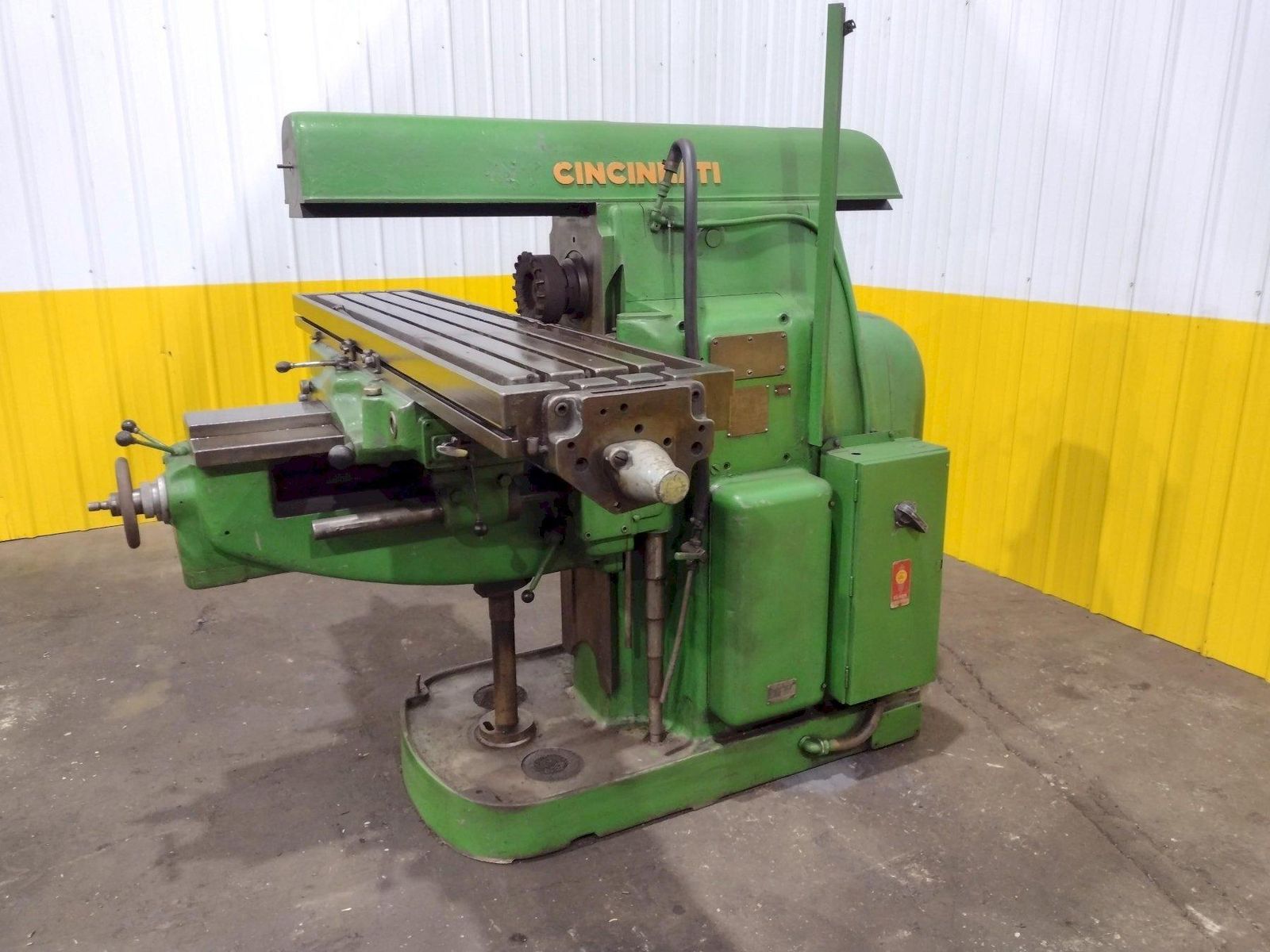

Brand
Cincinnati
Type
Milling & Drilling Machines (Combo)
Stock No.
19672
 |
419-269-2000 |
Stock #: 19672
SERIAL ........................... 4A4P5B-15MODEL ............................ 4AREA OF TABLE .................... 80" X 16"SPINDLE SPEEDS ................... (24) 16 TO 1600 RPMLONGITUDINAL & CROSS FEEDS ....... (32) 1/4 TO 60 IPMVERTICAL FEEDS ................... (32) 1/16 TO 15 IPMLONGITUDINAL TRAVEL .............. 42"CROSS TRAVEL ..................... 14"VERTICAL KNEE TRAVEL ............. 20"CENTERLINE OF SPINDLE TO TABLE ... 0" MIN TO 20" MAXRAPID TRAVERSE ................... 150 IPMTAPER IN SPINDLE ................. #50 NSOVERARM SUPPORT .................. YESDUAL CONTROL ..................... YESCOOLANT .......................... YESMAIN MOTOR ....................... 30 HORSEPOWER
