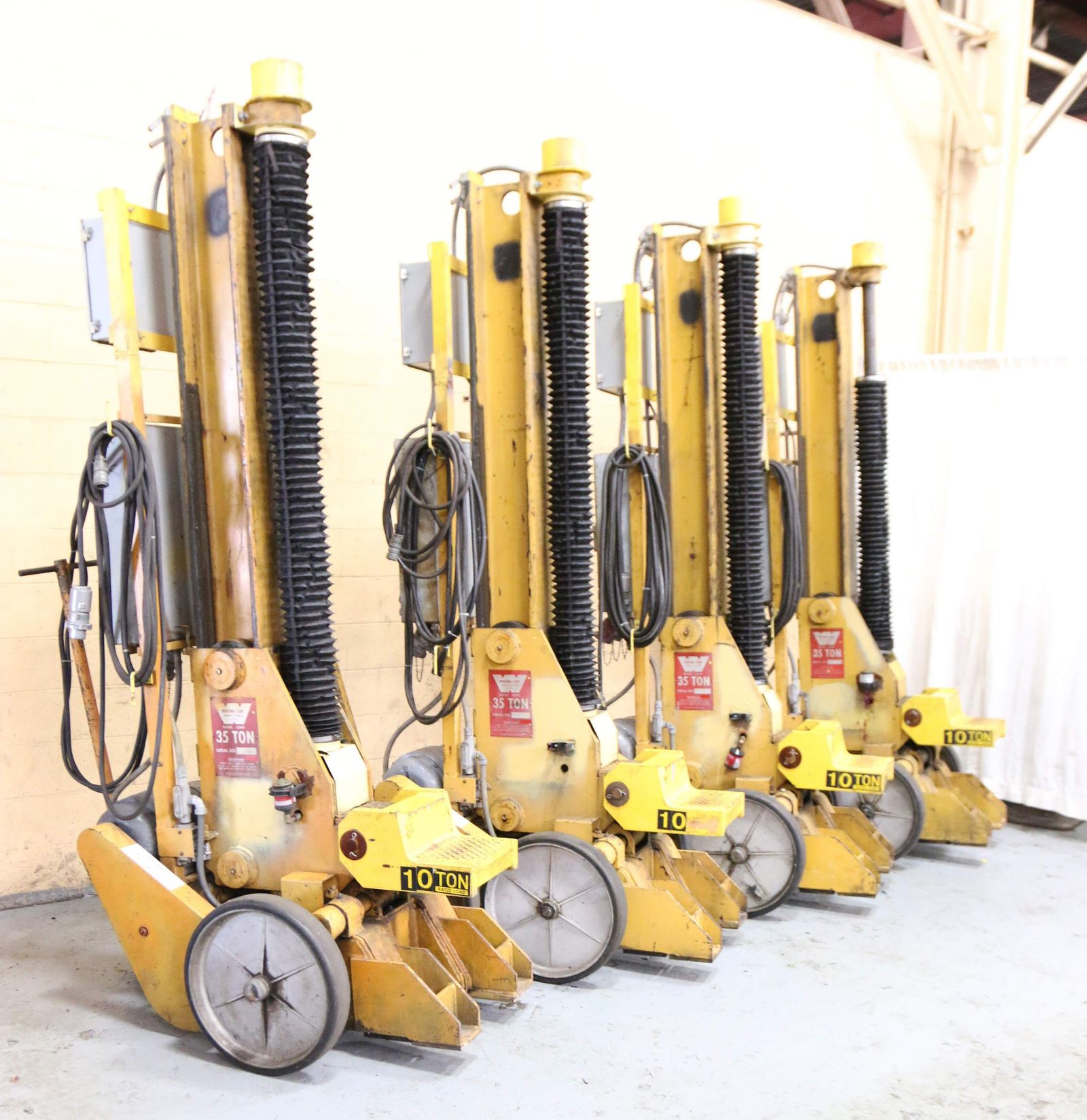

(4) 35 TON WHITING REMOTE CONTROLLED PORTABLE ELECTRIC RAIL CAR JACKS: STOCK #10072

Stock #: 10072

Equipped With

*** REMOTE CONTROLLED. CAN RAISE ALL 4 AT THE SAME TIME OR INDIVIDUALLY ***

SERIAL .................................. 1927,1928,1929,1930
MODEL ................................... MAL
CAPACITY ................................ 35 TON EACH
NUMBER OF JACKS IN SET .................. 4
LOWEST HEIGHT FROM FLOOR ................ 27"
HIGHEST HEIGHT FROM FLOOR ............... 99"
EFFECTIVE LIFT .......................... 72"
LIFT SPEED .............................. 9" PER MINUTE
SQUARE THREAD ELEVATION SCREW DIAMETER .. 4"
JACK LIFT PAD AREA ...................... 10" W X 7" D
STEERING WHEEL W / 43" T HANDLE ......... YES
20" HARD RUBBER KICK UP TIRES ........... YES
LAYS FLAT ON GROUND ..................... YES
LIFTING PICK EYE ........................ YES
UP / DOWN BUTTON CONTROL ................ YES
TOP & BOTTOM LIMIT SWITCHES ............. YES
ELECTRIC MOTOR .......................... 7-1/2 HP

DIMENSIONS: 42" WIDE X 48" DEEP X 120" HIGH
WEIGHT: 3,200 LBS
