Machine Information

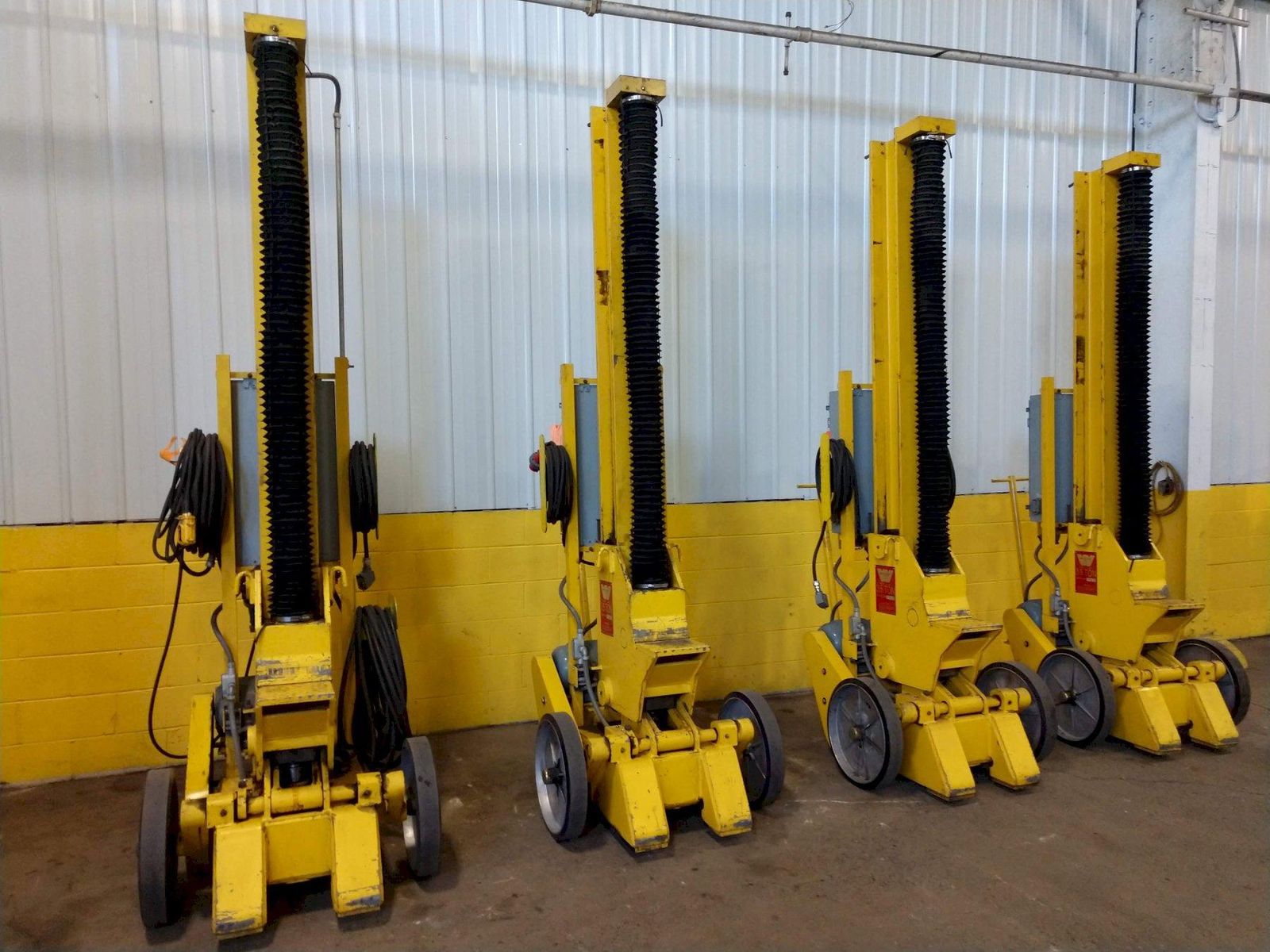

(4) 35 TON WHITING POWER PORTABLE ELECTRIC RAIL CAR LIFT JACKS: STOCK 12527

Stock #: 12527

Equipped With

SERIAL .................................. MA 2895 - 2896 - 2897 - 2898
NEW ..................................... 2012
MODEL ................................... MAL
CAPACITY ................................ 35 TON EACH
NUMBER OF JACKS IN SET .................. 4
LOWEST HEIGHT FROM FLOOR ................ 27"
HIGHEST HEIGHT FROM FLOOR ............... 99"
EFFECTIVE LIFT .......................... 72"
LIFT SPEED .............................. 9" PER MINUTE
SQUARE THREAD ELEVATION SCREW DIAMETER .. 4"
JACK LIFT PAD AREA ...................... 10" W X 7" D
STEERING WHEEL W / 43" T HANDLE ......... YES
20" HARD RUBBER KICK UP TIRES ........... YES
LAYS FLAT ON GROUND ..................... YES
LIFTING PICK EYE ........................ YES
UP / DOWN BUTTON CONTROL ................ YES
TOP & BOTTOM LIMIT SWITCHES ............. YES
ELECTRIC MOTOR .......................... 7-1/2 HP

DIMENSIONS: 42" WIDE X 48" DEEP X 120" HIGH
WEIGHT: 3,200 LBS
