Machine Information

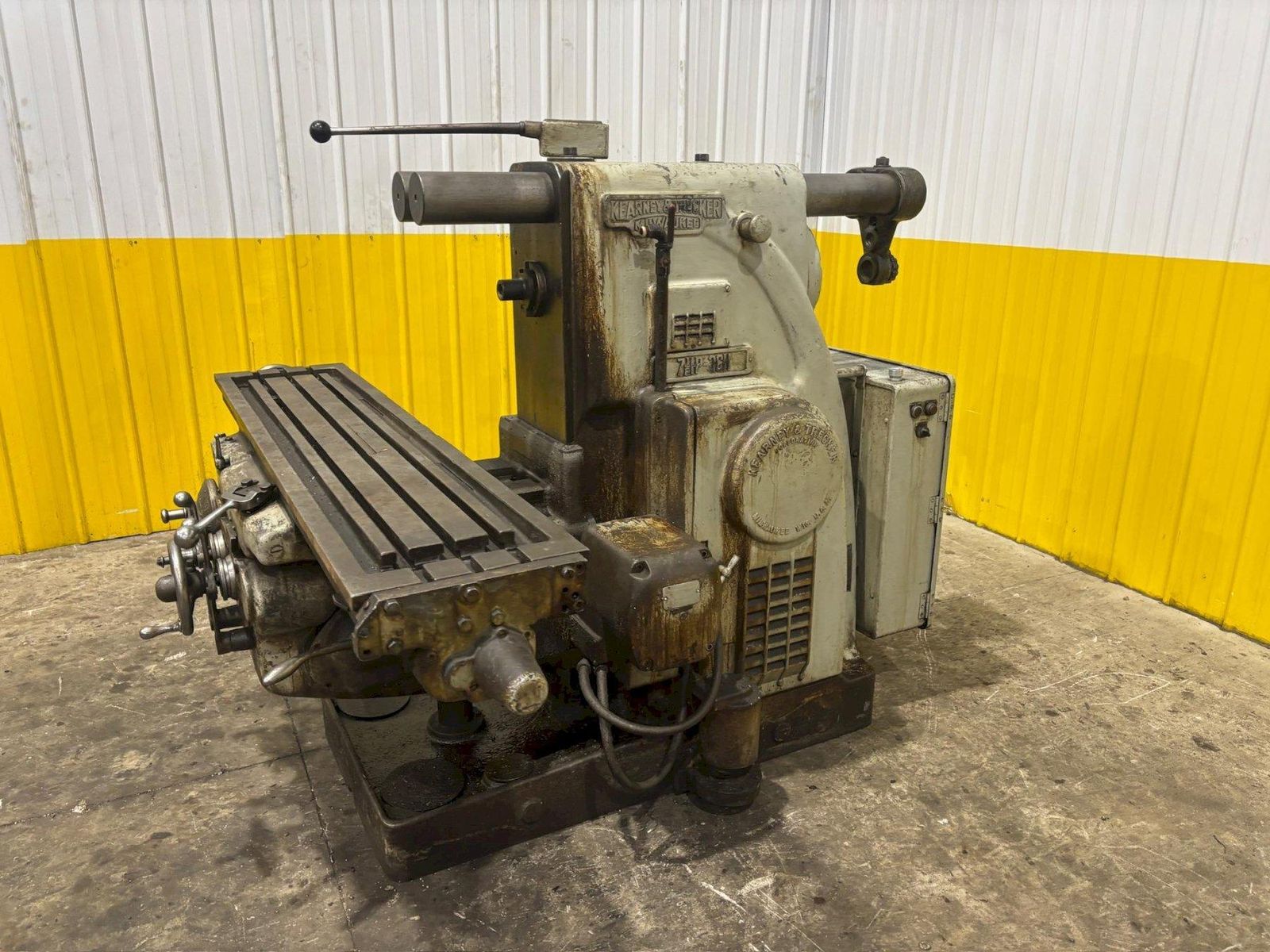

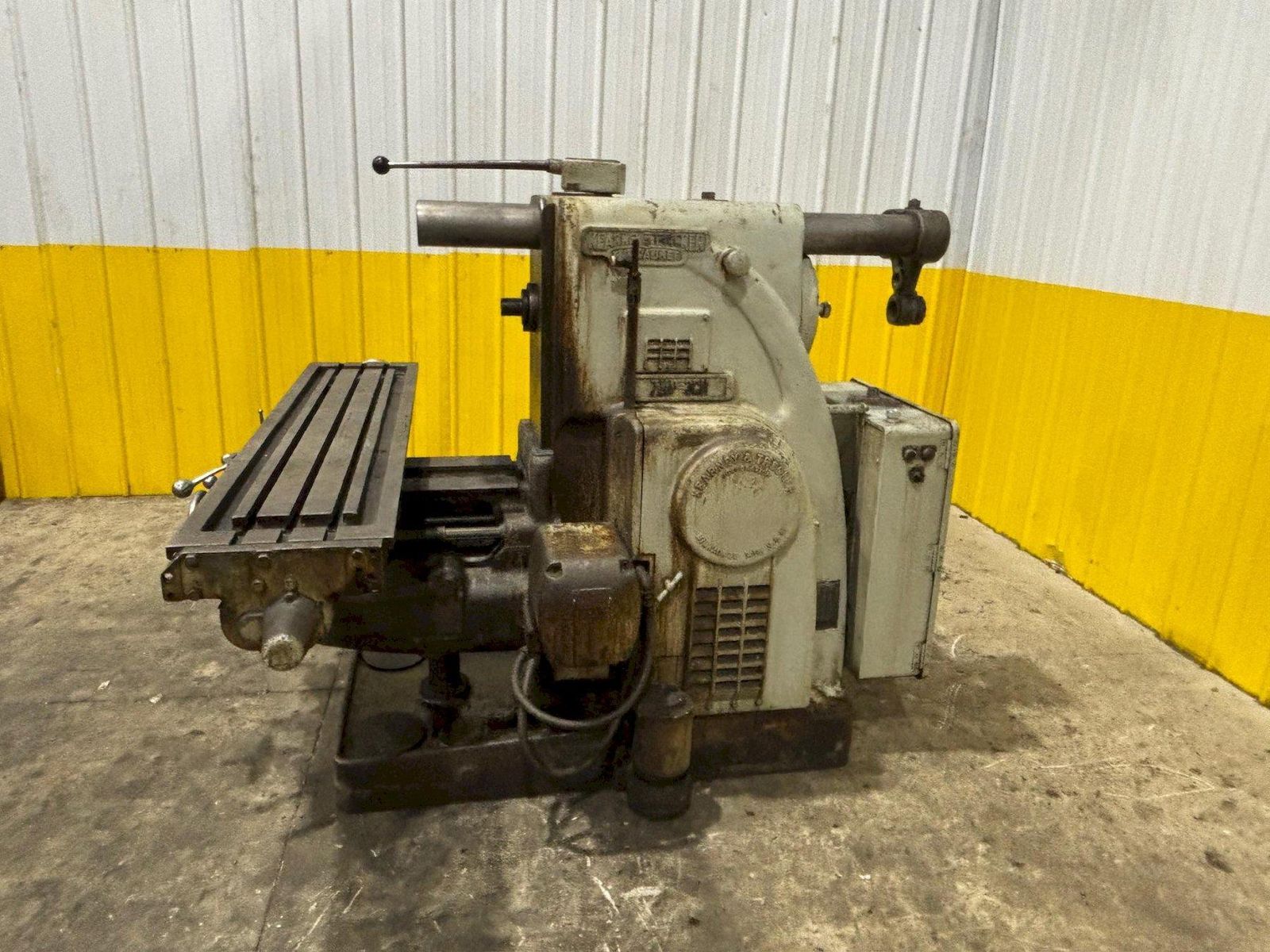

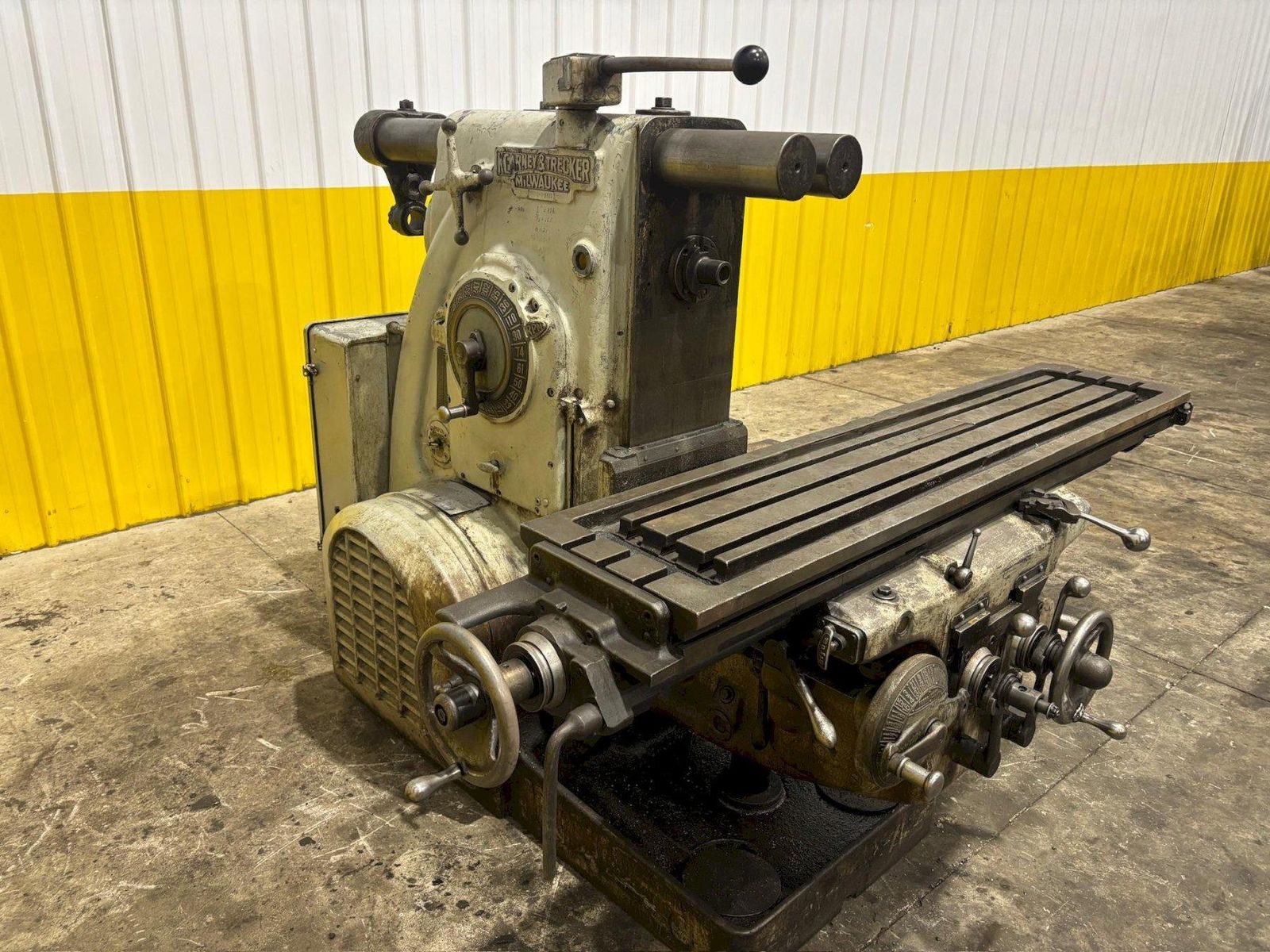

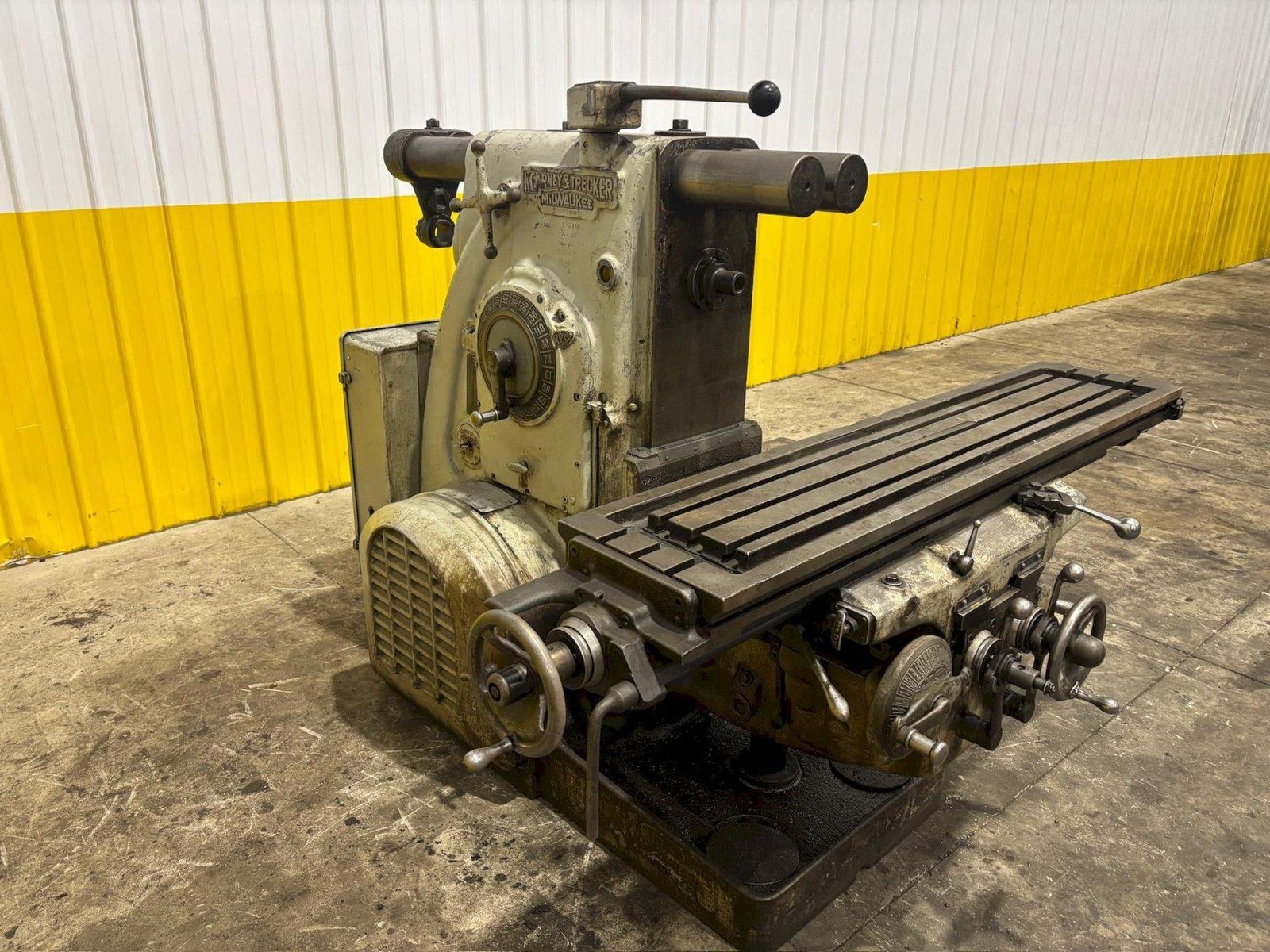

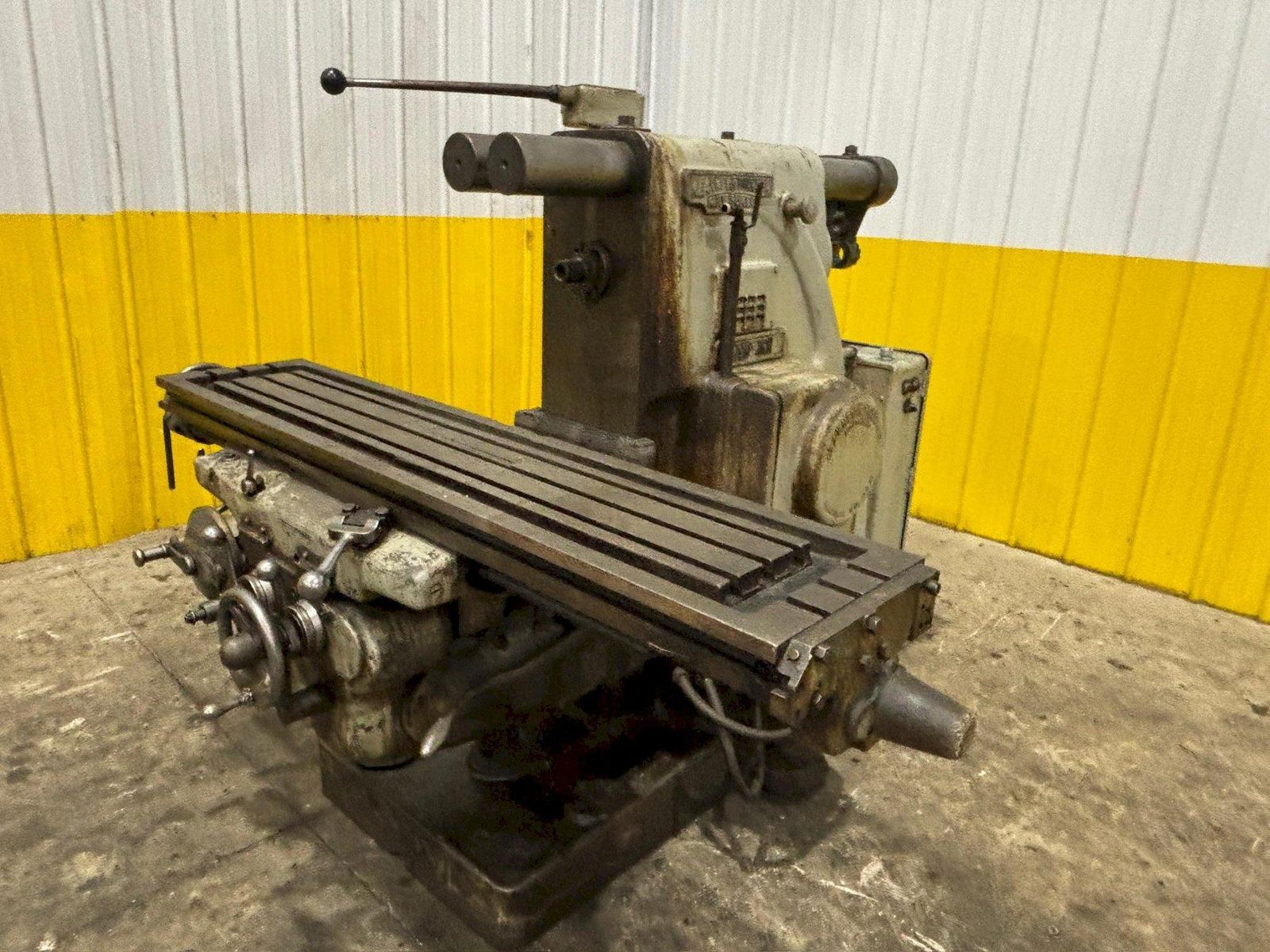

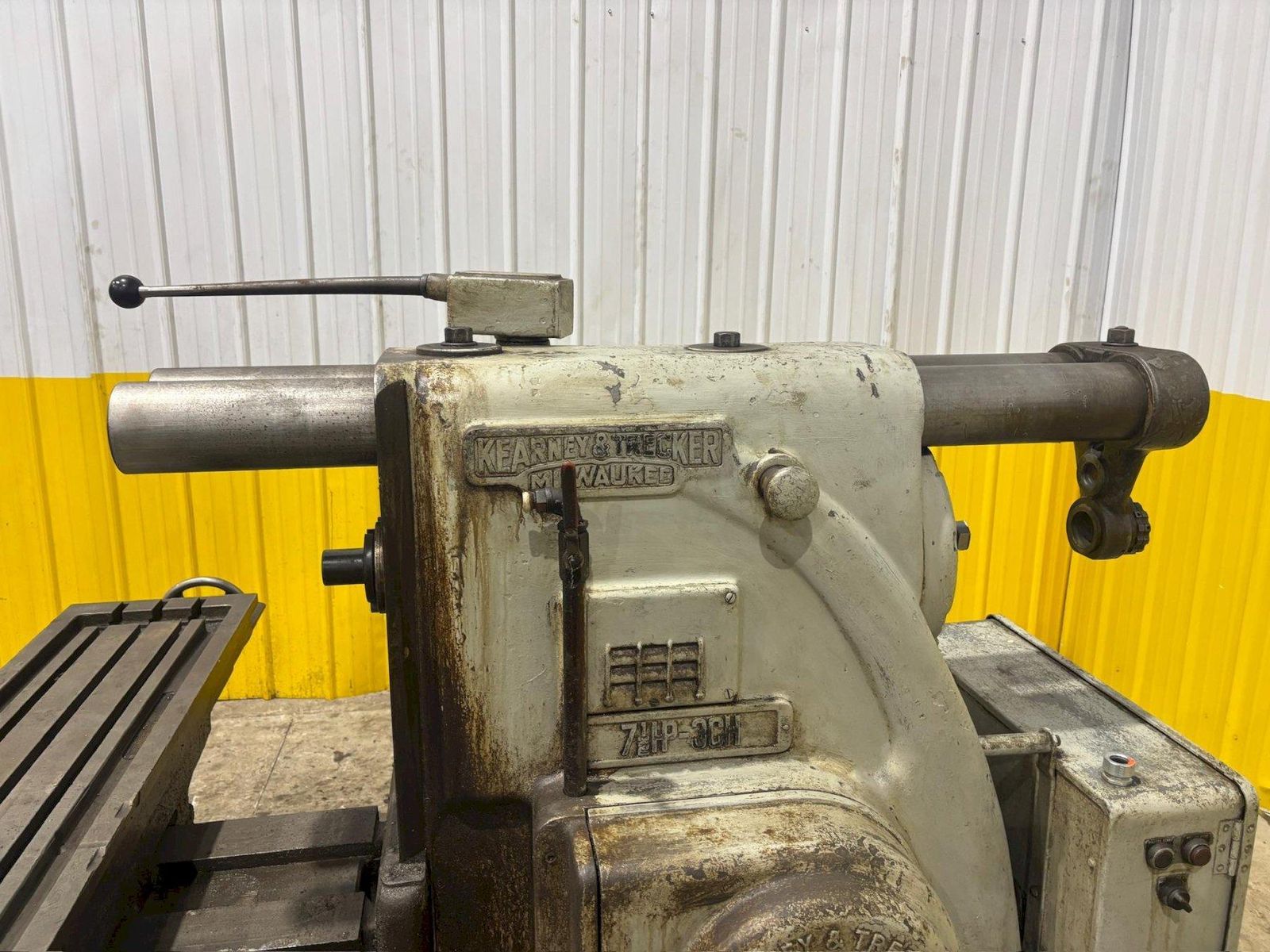

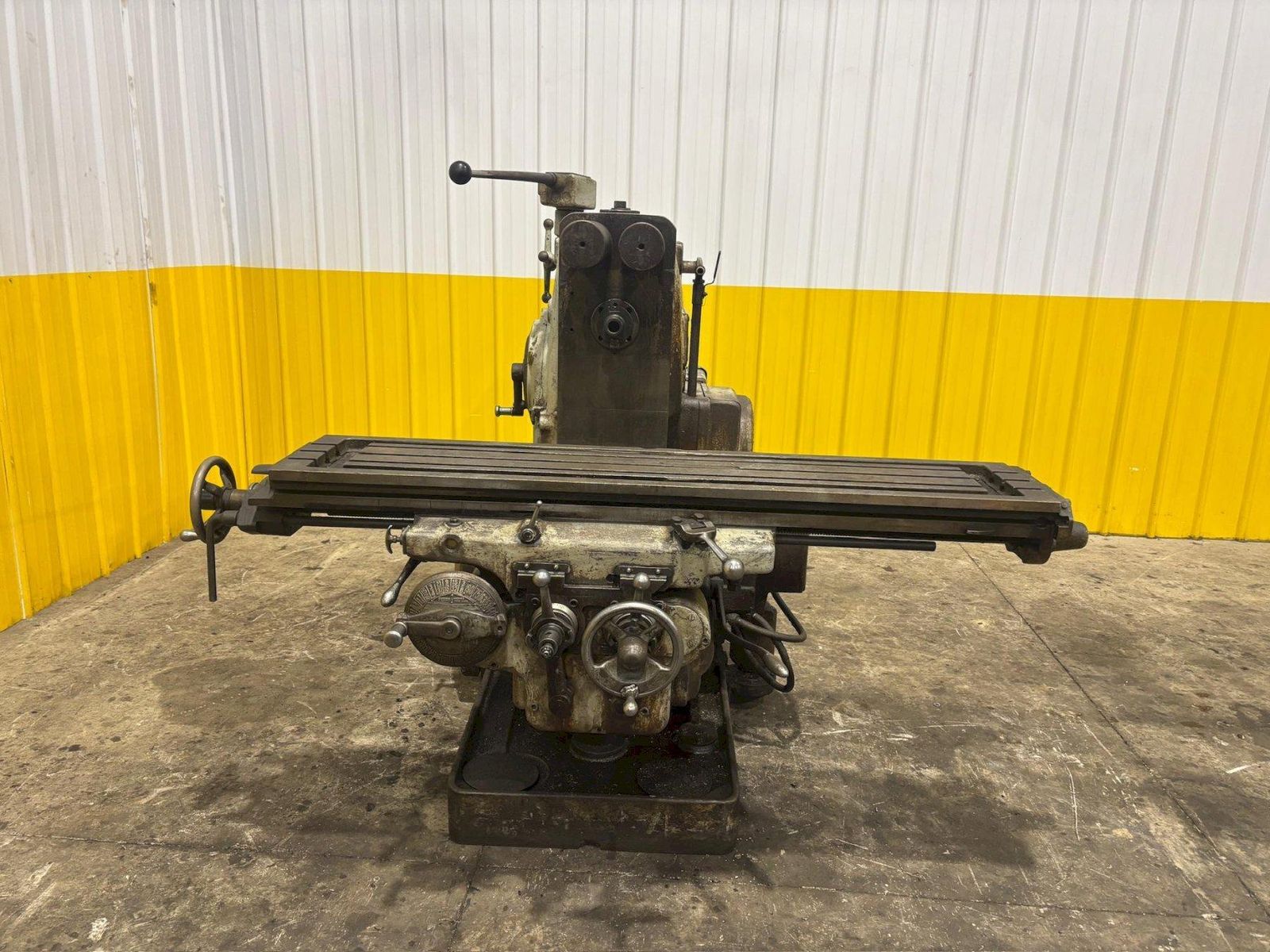

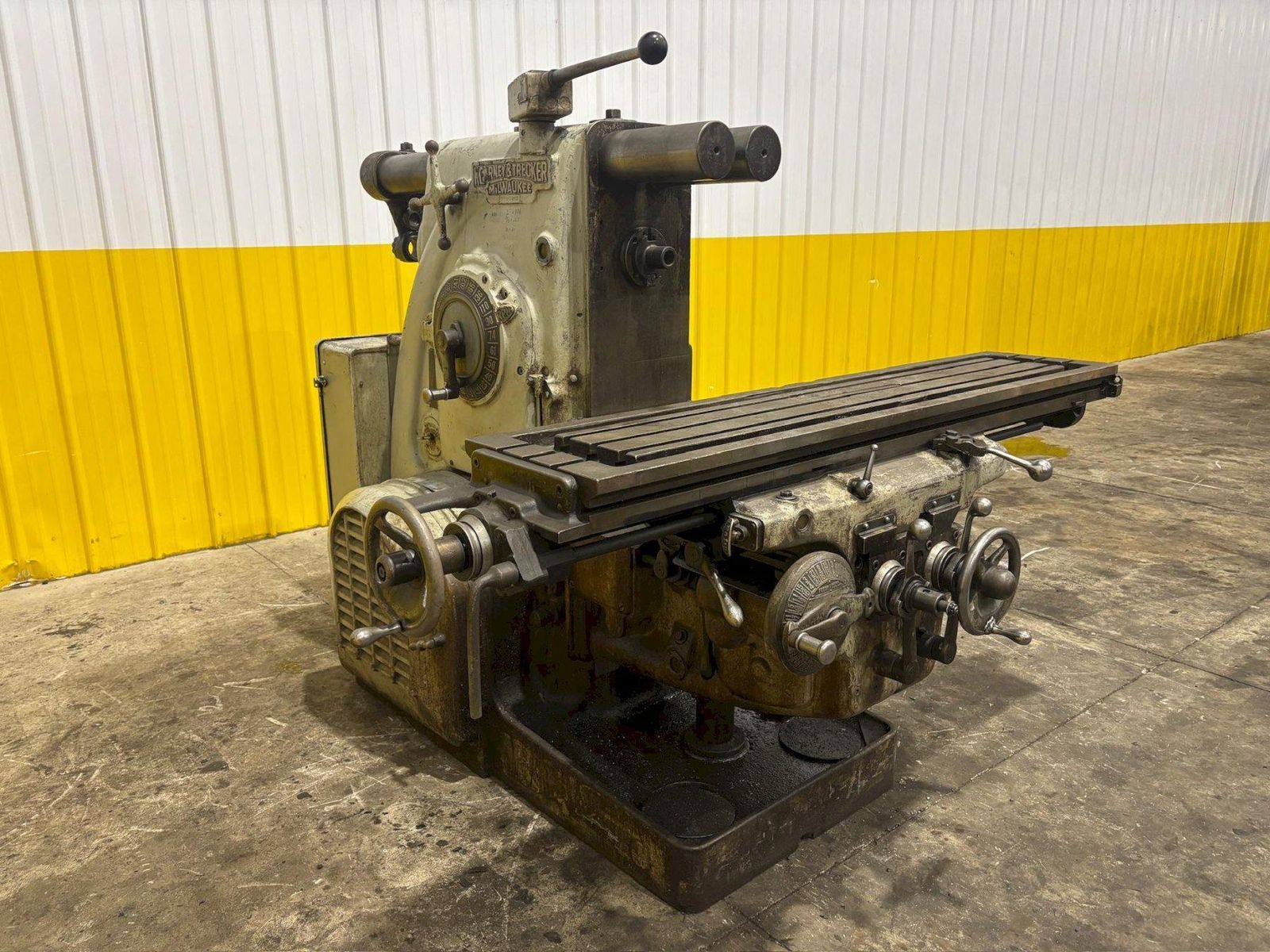

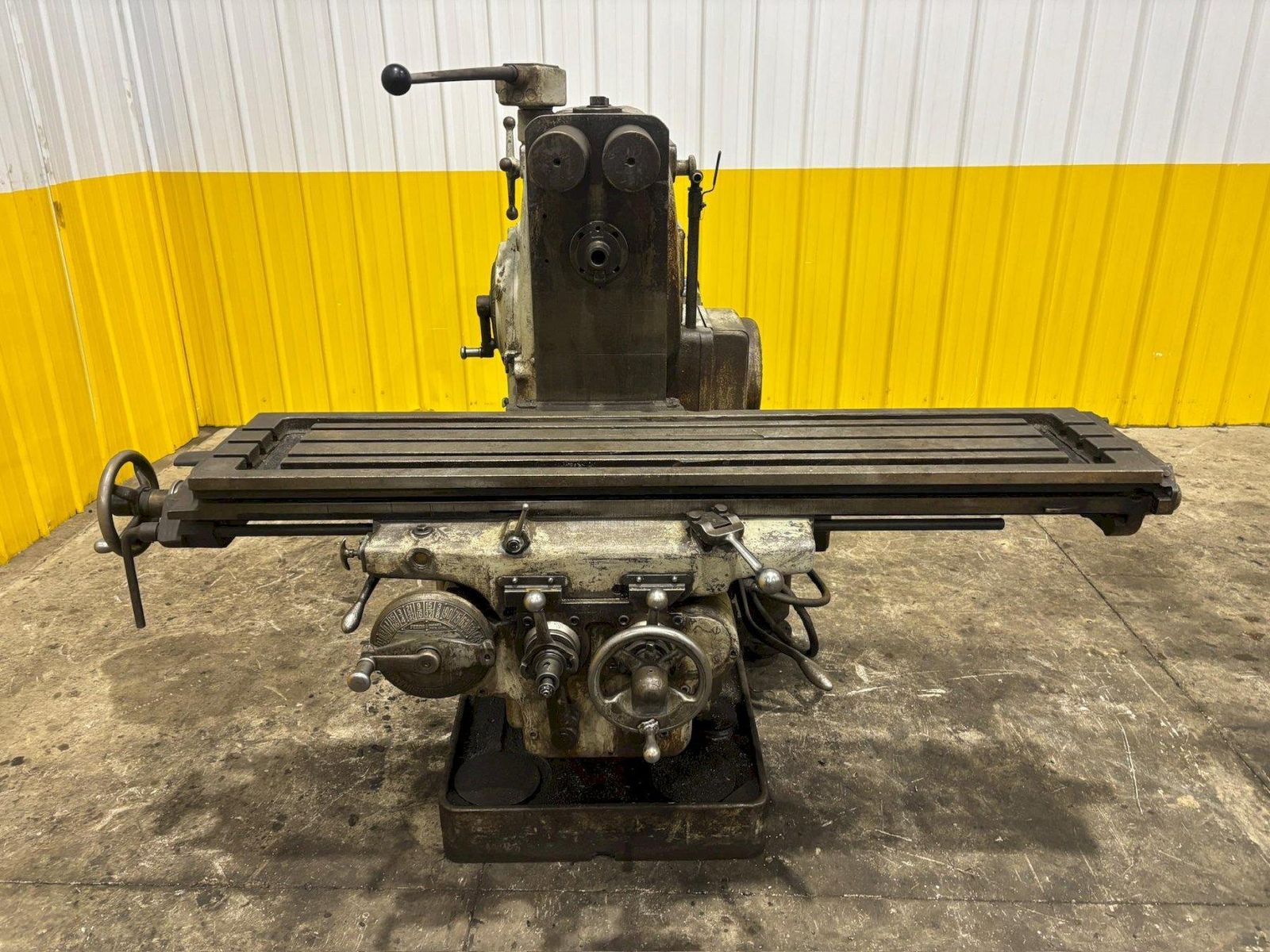

#3CH KEARNEY & TRECKER K&T HORIZONTAL MILL: YOBRO #24538

Stock #: 24538

Equipped With

SERIAL ....................................
MODEL ..................................... 3CH
AREA OF TABLE ............................. 64" X 13-1/2"

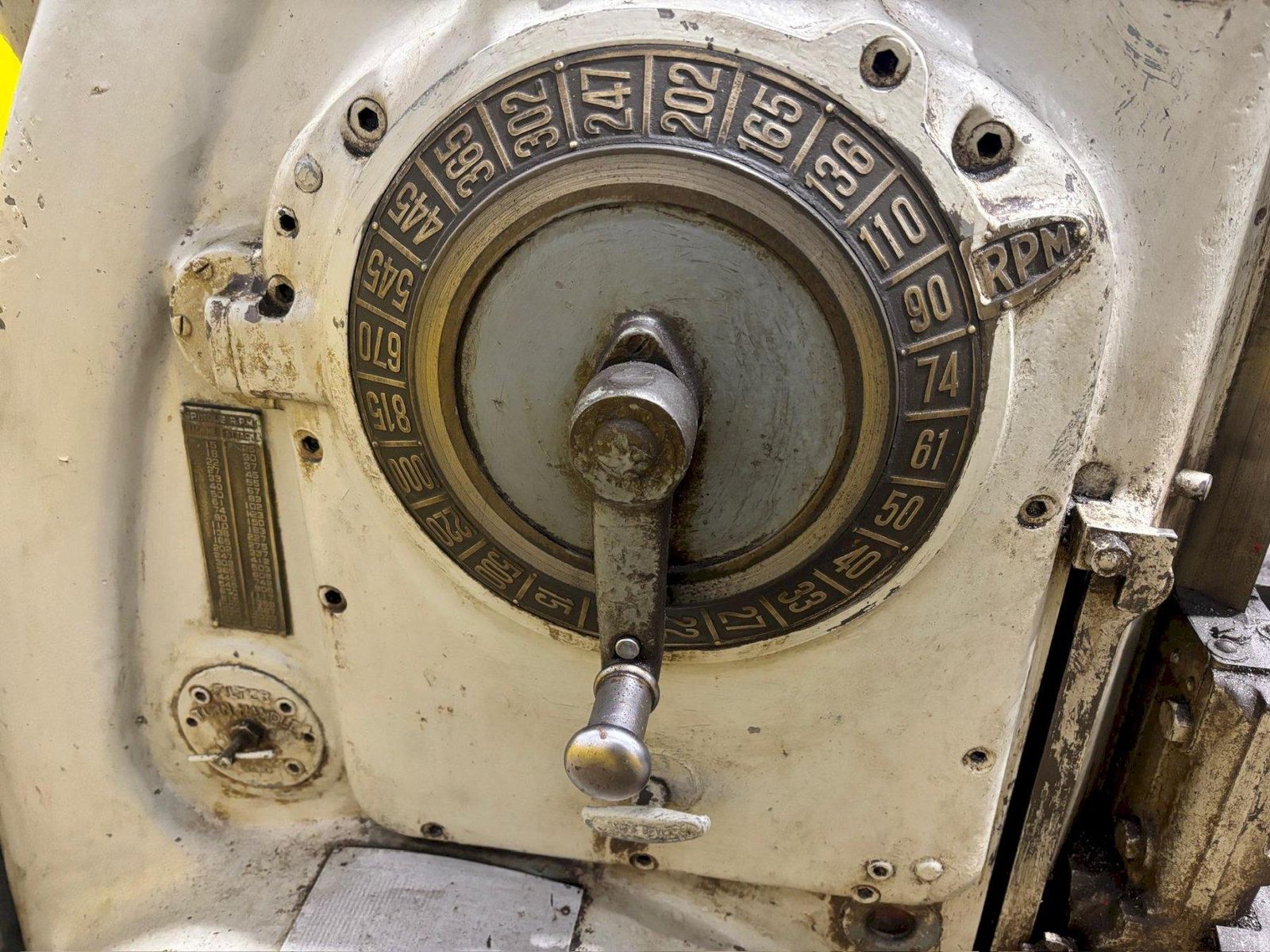

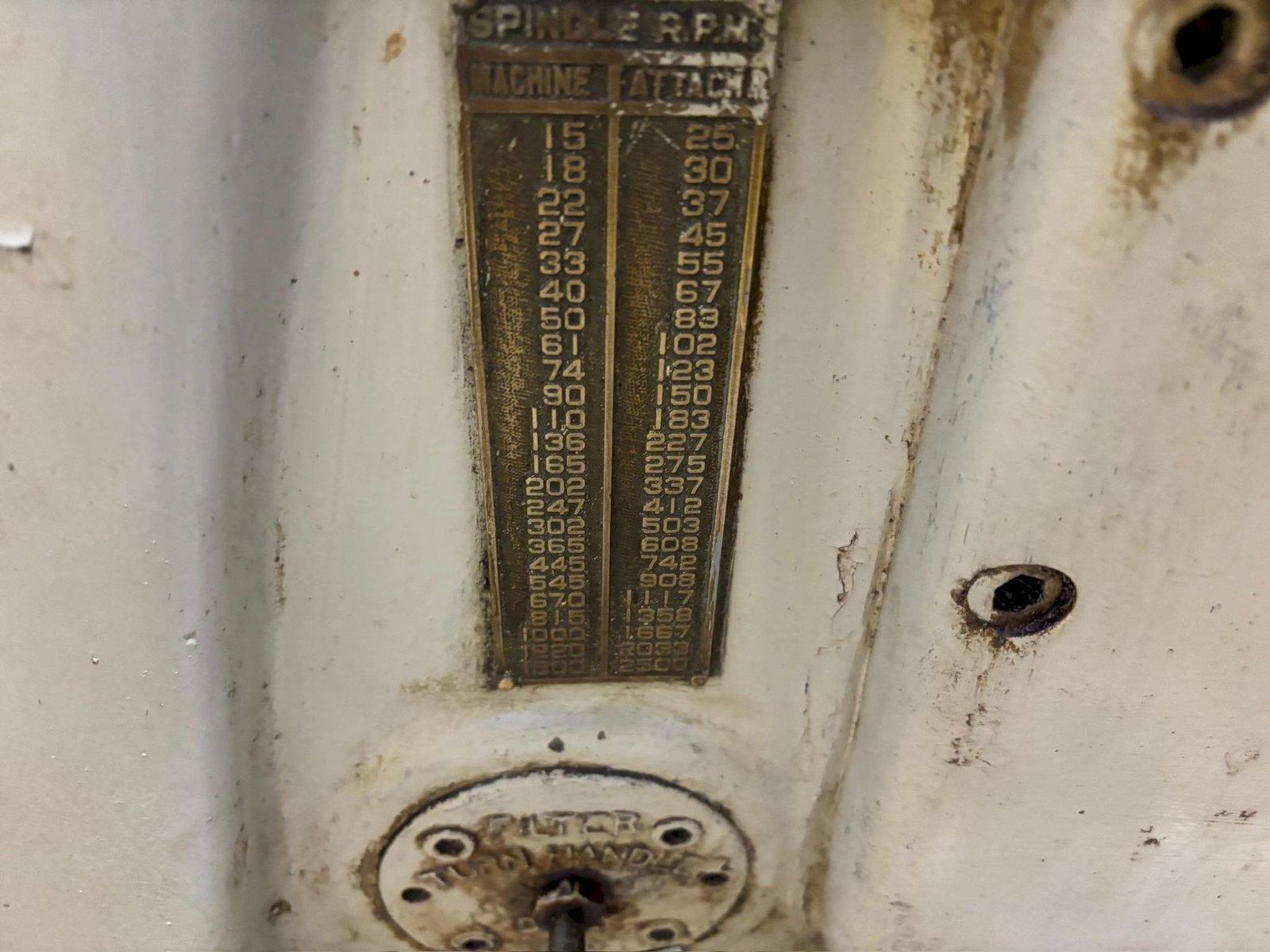

SPINDLE SPEEDS ............................ (24) 15 TO 1500 RPM
LONGITUDINAL TABLE TRAVERSE ............... 34"
CROSS TRAVEL .............................. 12"
VERTICAL KNEE TRAVERSE .................... 17"

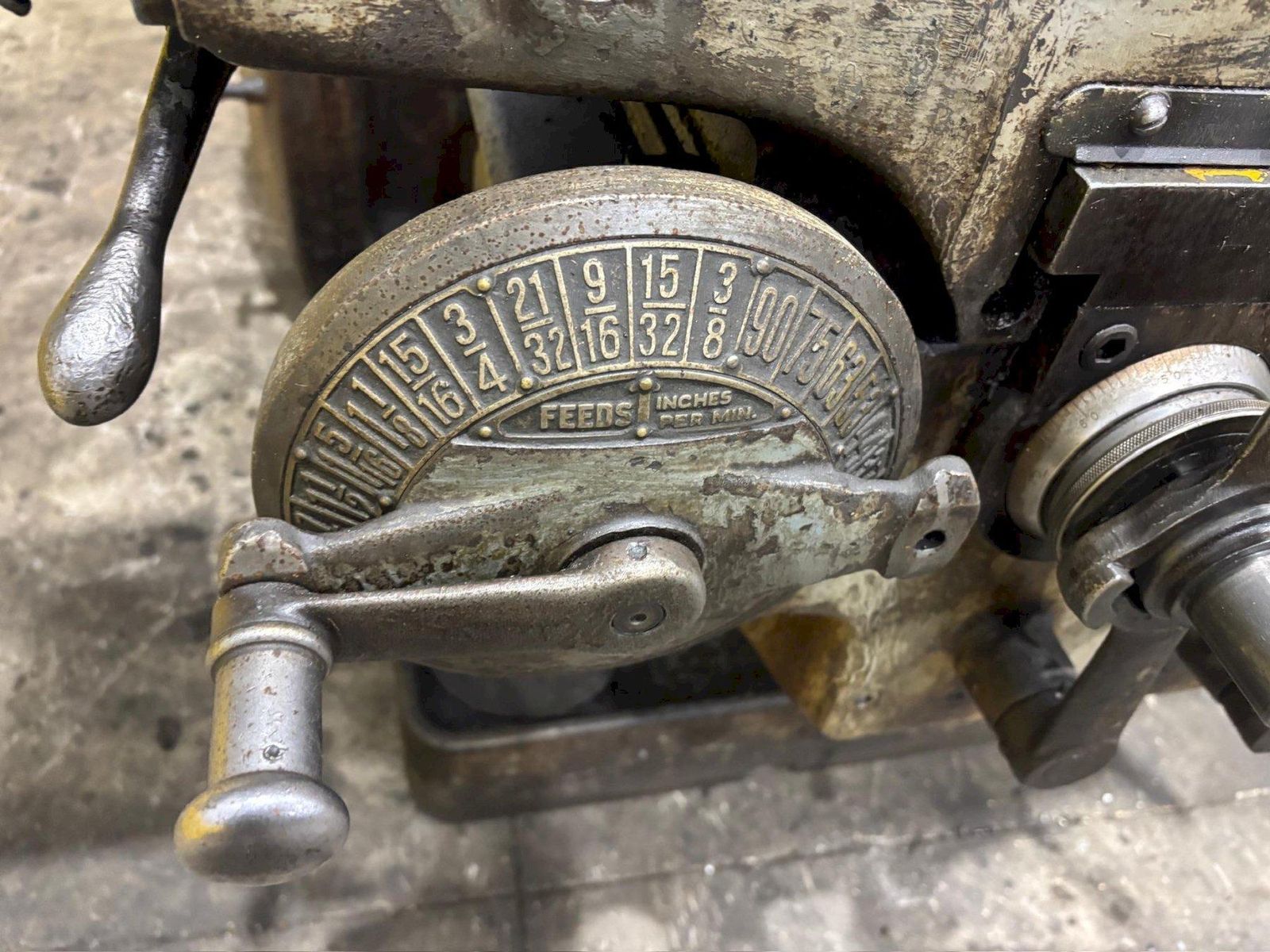

LONGITUDINAL & CROSS FEEDS ................ (32) 3/8 TO 90 IPM

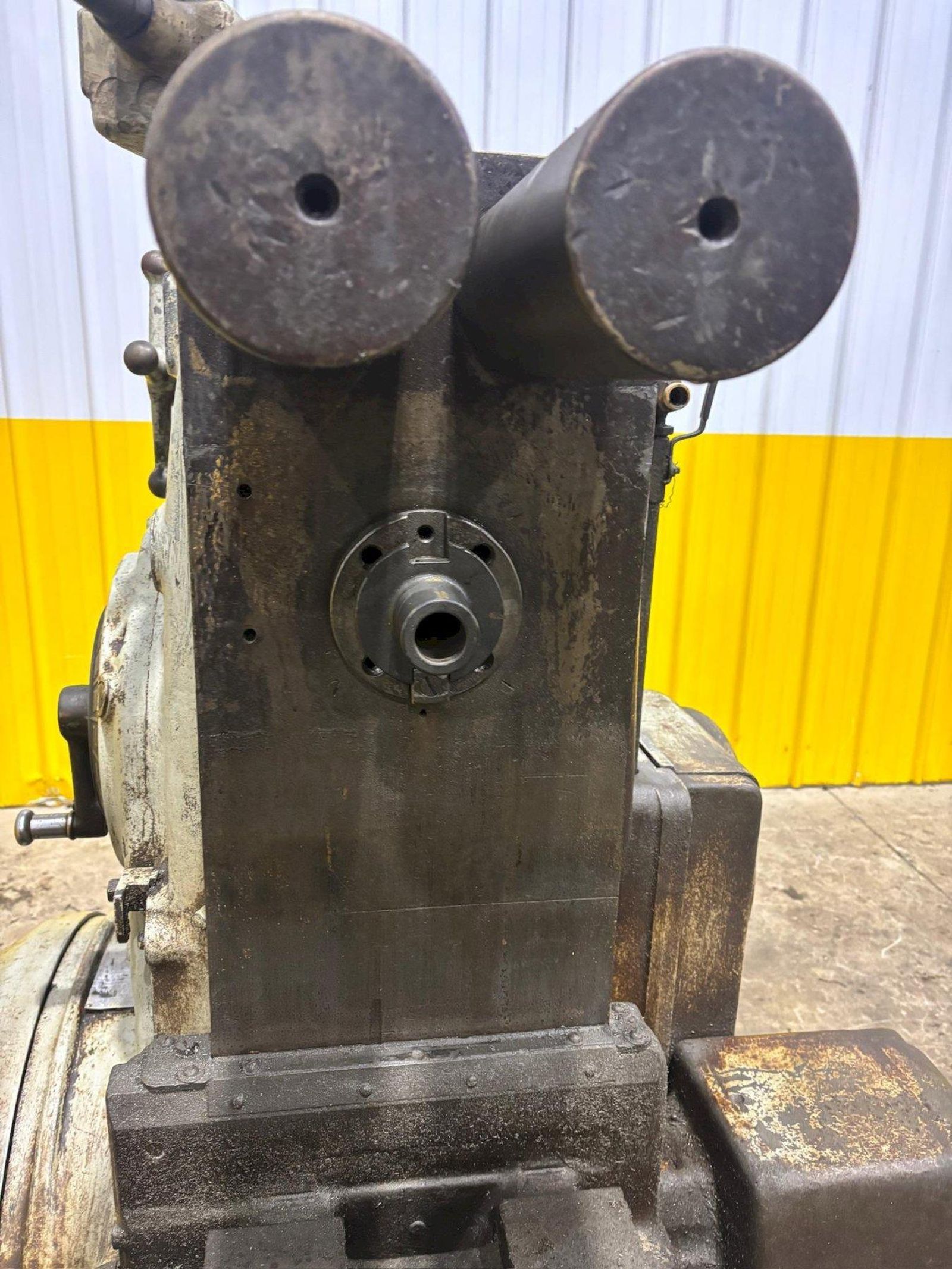

TAPER IN SPINDLE .......................... 50 NS
TABLE SWIVELS LEFT OR RIGHT ............... 45 DEGREES
DISTANCE TABLE TO CENTERLINE OF SPINDLE ... 0" MIN TO 15-3/4" MAXIMUM
RAPID TRAVERSE ............................ 150 IPM
DUAL CONTROLS ............................. YES

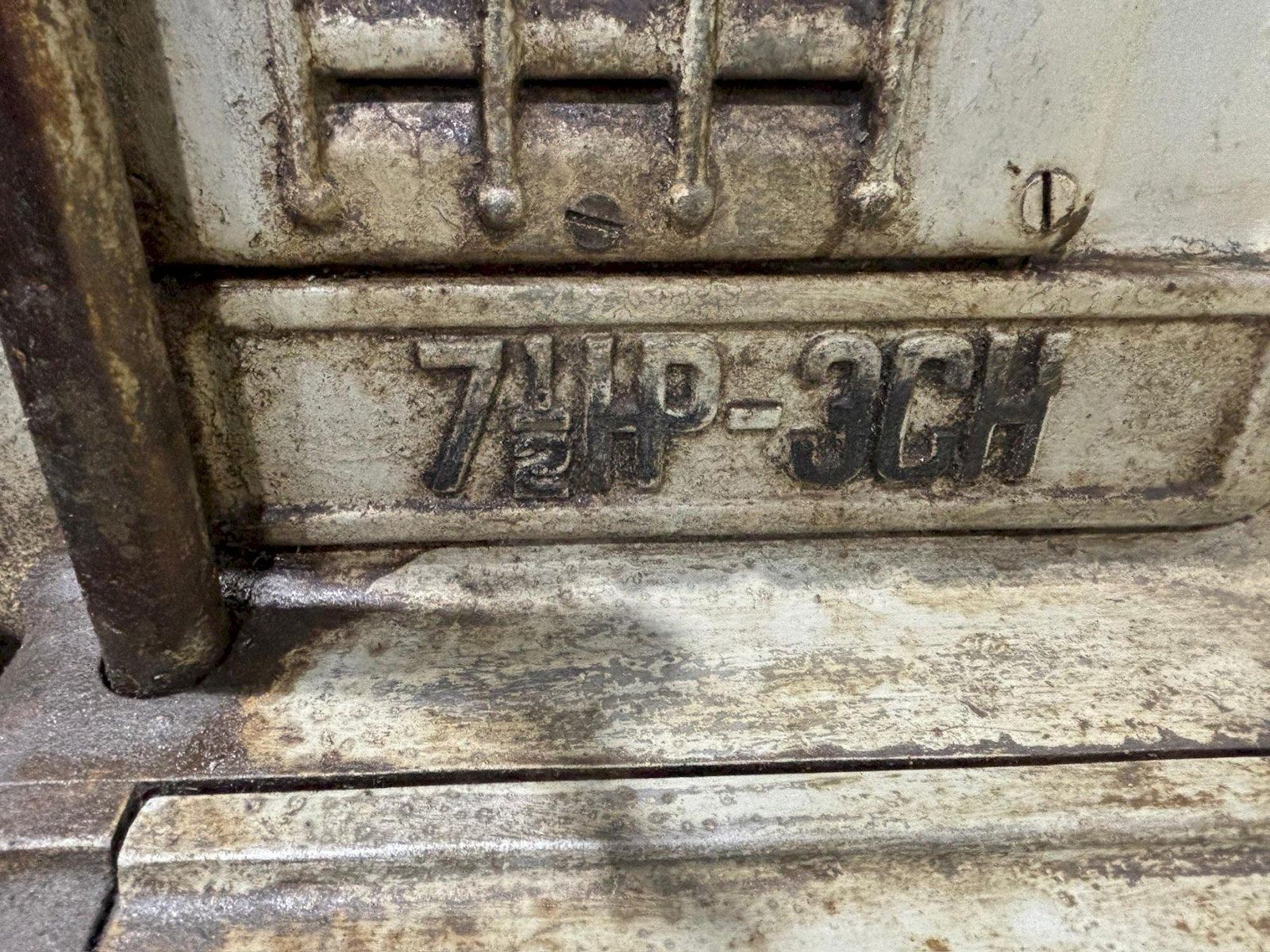

MAIN MOTOR ................................ 7-1/2 HP
FEED MOTOR ................................ 3 HP
