Machine Information

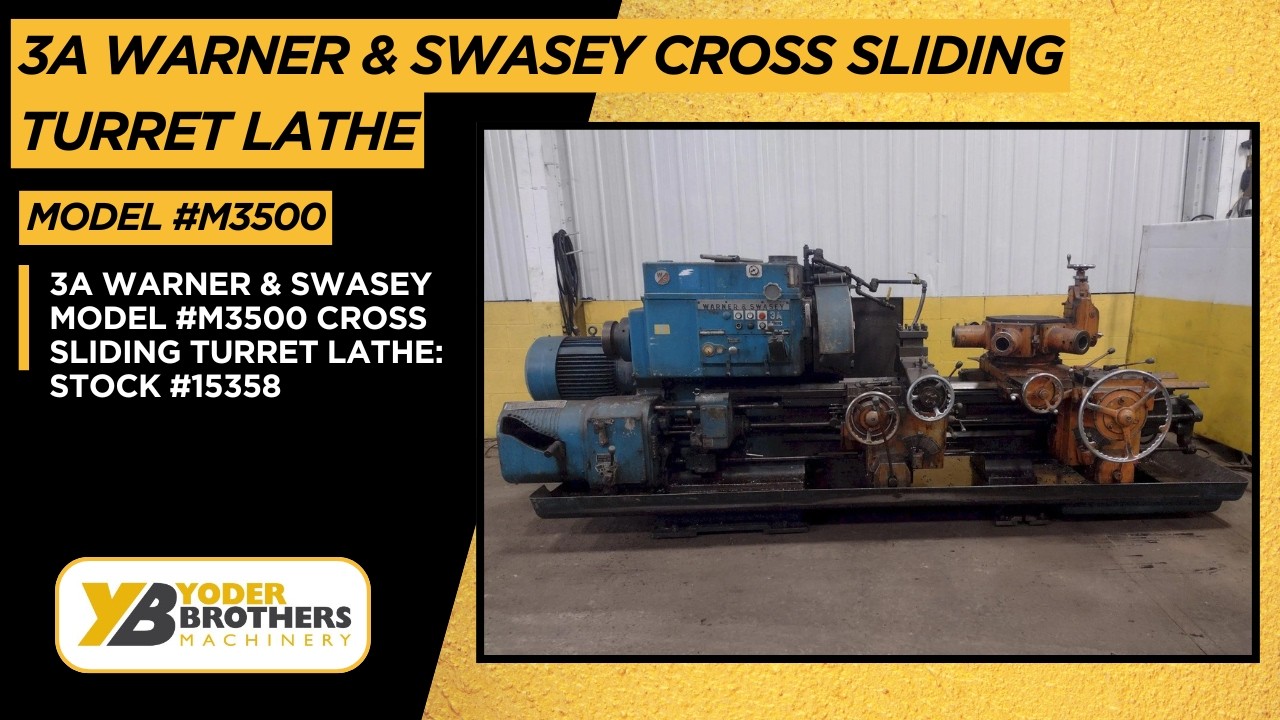

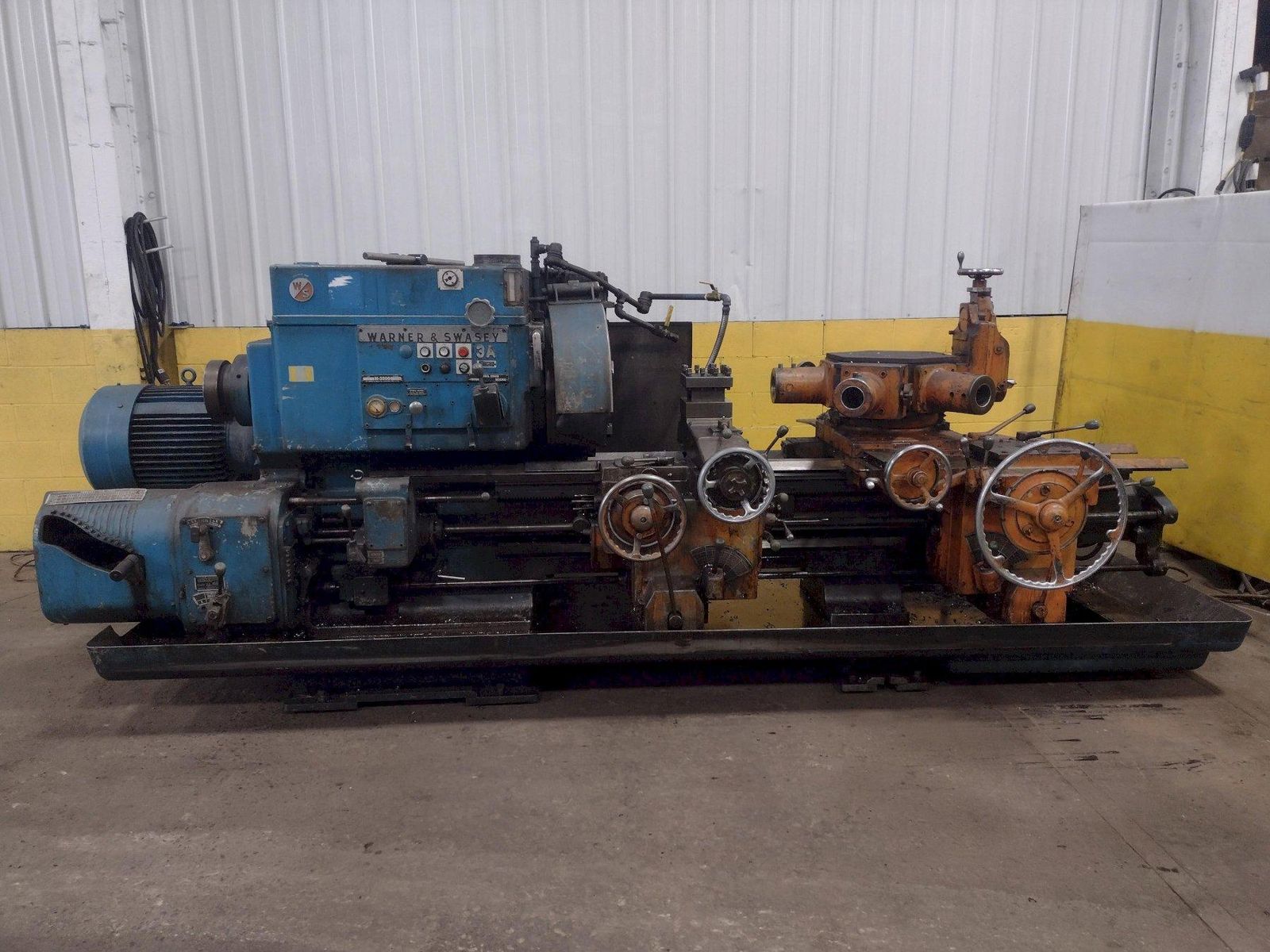

3A WARNER & SWASEY MODEL #M3500 CROSS SLIDING TURRET LATHE: STOCK #15358

Stock #: 15358

Equipped With

SERIAL ............................ 2182868
MODEL ............................. 3A (M-3500) SQUARE HEAD
SWING OVER BED .................... 24-1/2"
SWING OVER CARRIAGE HORN .......... 18"
SPINDLE NOSE TO TURRET ............ 58-3/4"
SPINDLE HOLE ...................... 6-1/8"
SPINDLE SPEEDS .................... (32) 18 TO 639 RPM
CHUCK ............................. 21" 3 JAW
POWER CHUCK WRENCH ................ YES
CARRIAGE LONGITUDINAL FEEDS ....... (16) .0029 TO .187 IPR
CARRIAGE CROSS FEEDS .............. (16) .002 TO .082 IPR
TURRET LONGITUDINAL FEEDS ......... (16) .005 TO .167 IPR
TURRET CROSS FEEDS ................ (16) .003 TO .096 IPR
CROSS SLIDING TURRET .............. YES
CHIP PAN WITH COOLANT ............. YES
MAIN MOTOR ........................ 40 HORSEPOWER


Buy Machines

3A WARNER & SWASEY MODEL #M3500 CROSS SLIDING TURRET LATHE: STOCK #15358

Stock # 15358

Share Machine
Print Details

Machine Specifications

SERIAL ............................ 2182868
MODEL ............................. 3A (M-3500) SQUARE HEAD
SWING OVER BED .................... 24-1/2"
SWING OVER CARRIAGE HORN .......... 18"
SPINDLE NOSE TO TURRET ............ 58-3/4"
SPINDLE HOLE ...................... 6-1/8"
SPINDLE SPEEDS .................... (32) 18 TO 639 RPM
CHUCK ............................. 21" 3 JAW
POWER CHUCK WRENCH ................ YES
CARRIAGE LONGITUDINAL FEEDS ....... (16) .0029 TO .187 IPR
CARRIAGE CROSS FEEDS .............. (16) .002 TO .082 IPR
TURRET LONGITUDINAL FEEDS ......... (16) .005 TO .167 IPR
TURRET CROSS FEEDS ................ (16) .003 TO .096 IPR
CROSS SLIDING TURRET .............. YES
CHIP PAN WITH COOLANT ............. YES
MAIN MOTOR ........................ 40 HORSEPOWER


Specifications
Dimensions 180" x 84" x 70" high
Weight 15000 pounds
