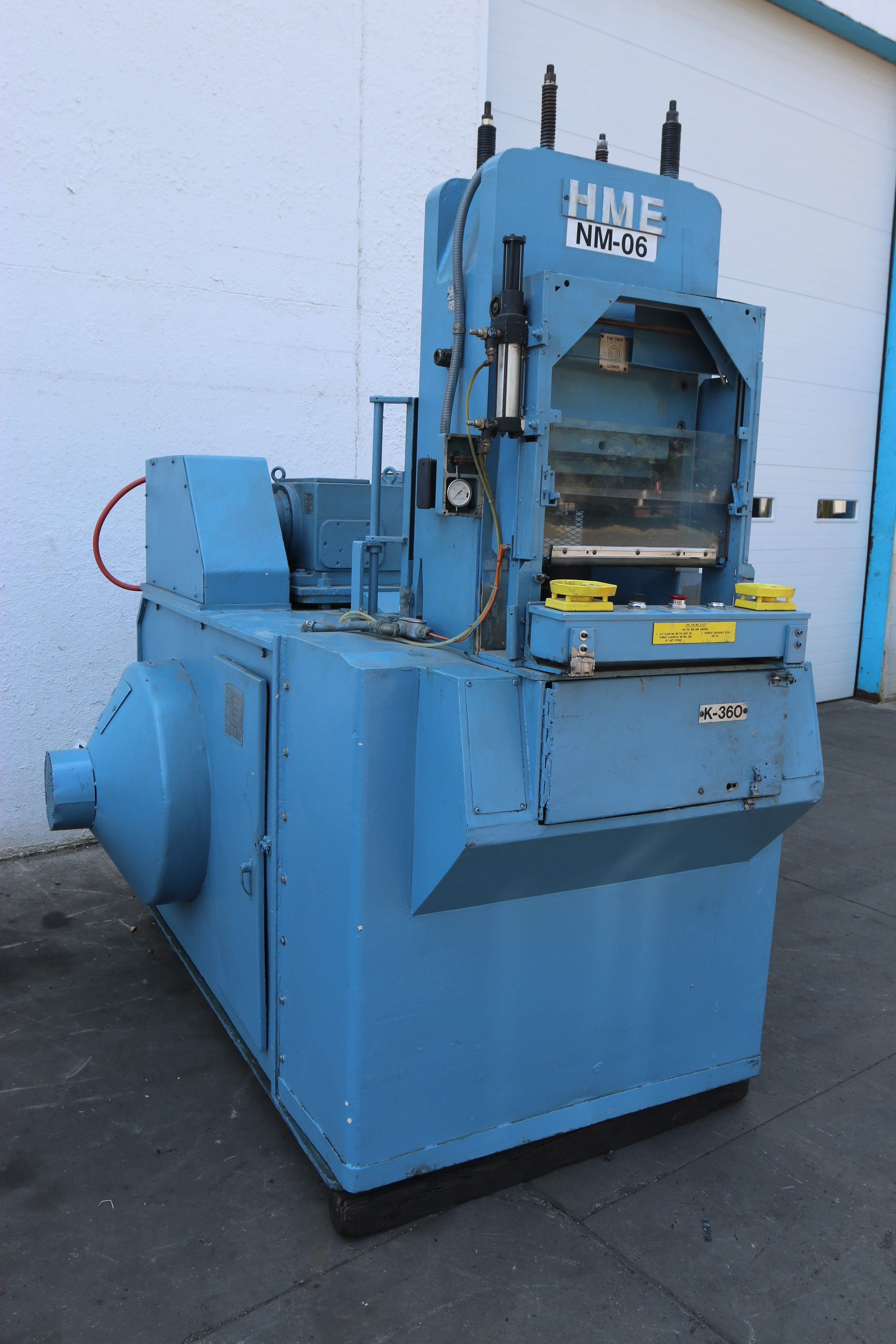

360 TON HME RHODES #K360 MINTING/COINING PRESS: STOCK 10249

Stock #: 10249

Equipped With

SERIAL ............................... 15341
MODEL ................................ K360
CAPACITY ............................. 360 TON
STROKE ............................... 2.125"
SPEED ................................ 90-200 SPM
SHUT HEIGHT SDAU ..................... 11"
RAM ADJUSTMENT ....................... 9/16"
BED AREA ............................. 17" R-L X 19-1/2" F-B
BOLSTER .............................. 17" R-L X 19-1/2" F-B
MAX PRESSURE ......................... 360 (TONNES)
TOP TOOL ADJUSTMENT .................. .562"
MAIN MOTOR ........................... 22 KW
NOMINAL RATING ....................... 1600 KN
MAX COIN DIAMETER .................... 34 MM
MAX COIN THICKNESS ................... 3.5 MM
NUMBER OF STROKES (VARIABLE) ......... 300-850 SPM
CRAWL SPEED .......................... 30 SPM
TOOL HOLDER ADJUSTMENT ............... 4 MM
EJECTOR FORCE ........................ 30 KN
EJECTOR STROKE ....................... 6.2 MM
MAX FLYWHEEL SPEED ................... 460 RPM
DAYLIGHT FROM BED .................... 19.125"
FEED HEIGHT FROM BED ................. 8"
LOWER DIE HEIGHT FROM BED ............ 7.812"
MAX COINING WELL DEPTH ............... 1.87"

AIR PRESSURE REQUIRED:
TO BALANCE SLIDE ..................... 80 LBS/SQ IN
TO OPERATE CLUTCH .................... 60 LBS/SQ IN

Buy Machines

360 TON HME RHODES #K360 MINTING/COINING PRESS: STOCK 10249

Stock # 10249

Share Machine
Print Details

Machine Specifications

SERIAL ............................... 15341
MODEL ................................ K360
CAPACITY ............................. 360 TON
STROKE ............................... 2.125"
SPEED ................................ 90-200 SPM
SHUT HEIGHT SDAU ..................... 11"
RAM ADJUSTMENT ....................... 9/16"
BED AREA ............................. 17" R-L X 19-1/2" F-B
BOLSTER .............................. 17" R-L X 19-1/2" F-B
MAX PRESSURE ......................... 360 (TONNES)
TOP TOOL ADJUSTMENT .................. .562"
MAIN MOTOR ........................... 22 KW
NOMINAL RATING ....................... 1600 KN
MAX COIN DIAMETER .................... 34 MM
MAX COIN THICKNESS ................... 3.5 MM
NUMBER OF STROKES (VARIABLE) ......... 300-850 SPM
CRAWL SPEED .......................... 30 SPM
TOOL HOLDER ADJUSTMENT ............... 4 MM
EJECTOR FORCE ........................ 30 KN
EJECTOR STROKE ....................... 6.2 MM
MAX FLYWHEEL SPEED ................... 460 RPM
DAYLIGHT FROM BED .................... 19.125"
FEED HEIGHT FROM BED ................. 8"
LOWER DIE HEIGHT FROM BED ............ 7.812"
MAX COINING WELL DEPTH ............... 1.87"

AIR PRESSURE REQUIRED:
TO BALANCE SLIDE ..................... 80 LBS/SQ IN
TO OPERATE CLUTCH .................... 60 LBS/SQ IN

Specifications
Tonnage 360 pounds
Stroke 2.125 inches
