Machine Information

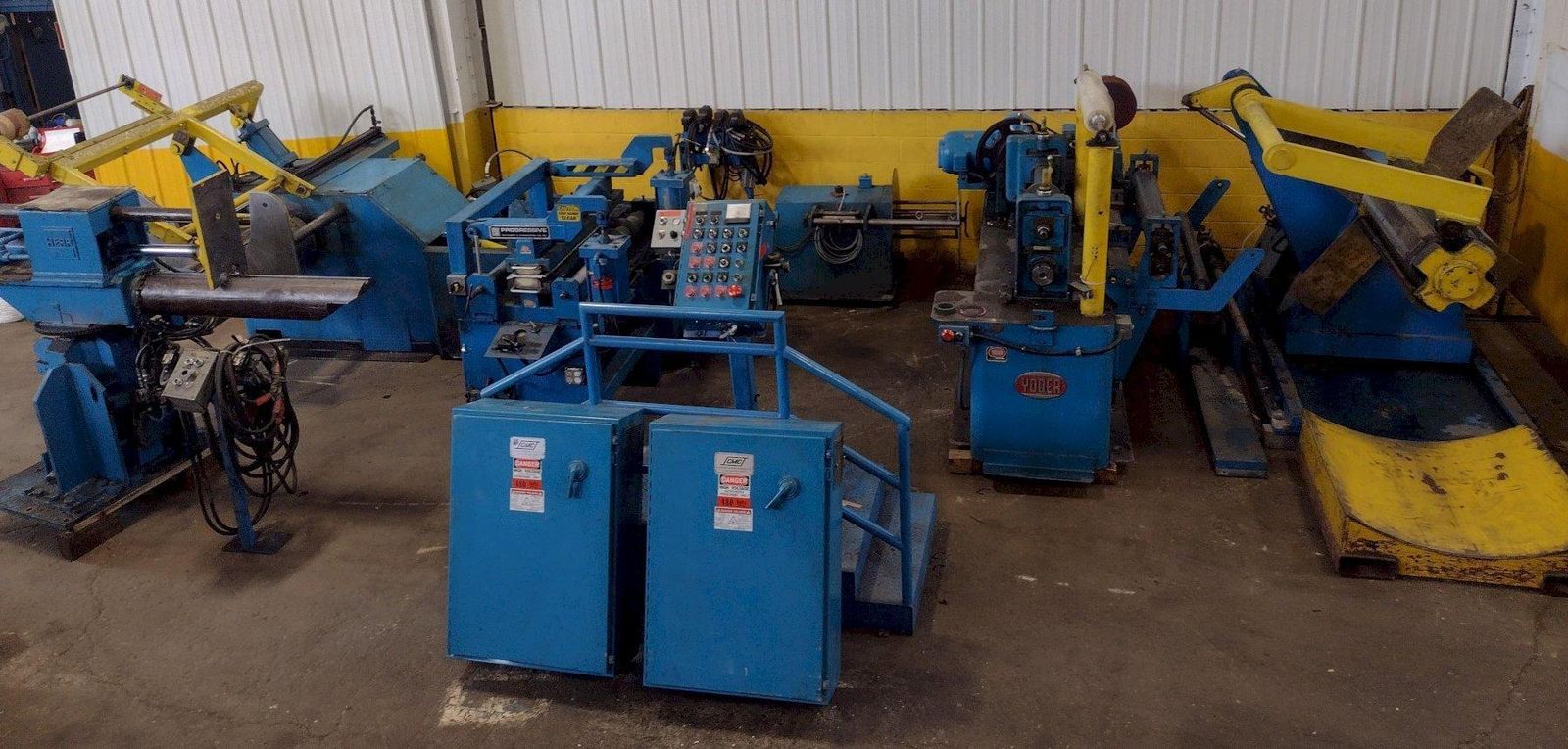

36" X 4" X 12,000 LBS YODER / STAMCO MOTORIZED SLITTING LINE: STOCK #16956

Stock #: 16956

Equipped With


LOOPCO UNCOILER:
COIL CAPACITY ............. 12,000 LBS
MANDREL LENGTH ............ 36"
COIL I.D. ................. 16" TO 20"
COIL O.D. ................. 60"
HYDRAULIC EXPANSION ....... YES

YODER SLITTER:
SERIAL .................... Y4658466
MAX WIDTH ................. 36"
ARBOR DIAMETER ............ 4"
SLITTING CAPACITY ......... 21 CUTS @ 28 GA
                  ......... 7 CUTS @ 14 GA
PINCH ROLLS ............... YES
ENTRY EDGE GUIDES ......... YES
PASS LINE ROLLS ........... ENTRY & EXIT
FEED UP DRIVE MOTOR ....... 10 HP

STAMCO RECOILER:
SERIAL ....................
CAPACITY .................. 12,000 LBS
MANDREL LENGTH ............ 40"
DRUM ID DIAMETER .......... 16"
MANUAL EXPANSION .......... YES
BACKER GUIDE PLATES ....... YES
AIR OPERATED PUSHOFF ...... YES
OVERARM WITH SEPERATOR .... YES
MOTOR  .................... 50 HP

CONTROLS .................. YES
TOOLING INCLUDED  ......... YES
