Machine Information

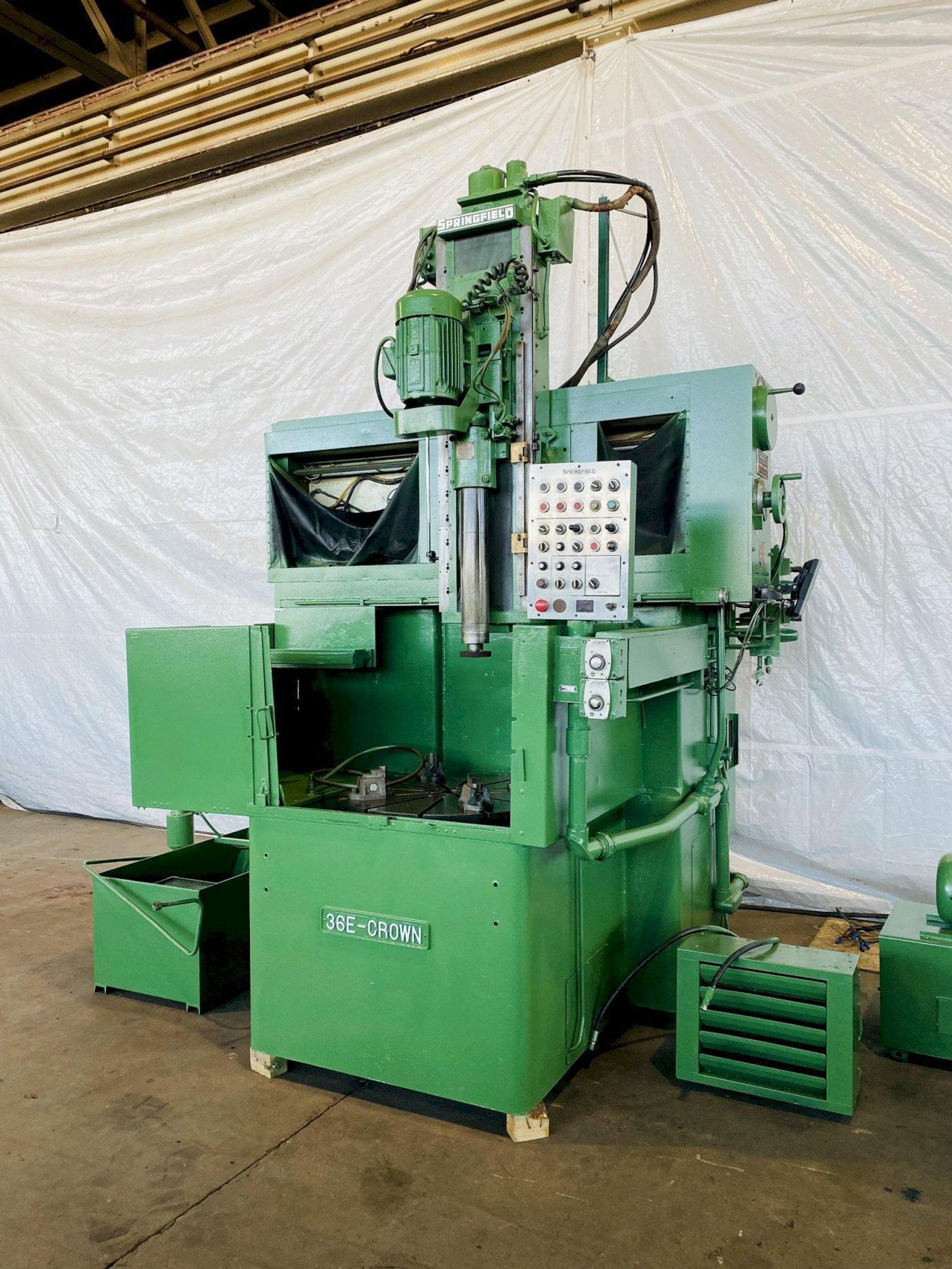

36" SPRINGFIELD UNIVERSAL ID/OD VERTICAL SPINDLE GRINDER: STOCK #16986

Stock #: #16986

Equipped With

MODEL............................. 36-E-CR
SERIAL............................ 74065
WORK TABLE DIAMETER............... 36"
MAXIMUM SWING INSIDE GUARDS....... 44"
NOMINAL HOLE ABILITY.............. 18"
MAX HEAD STROKE................... 36"
DISTANCE UNDER RAIL............... 25-1/2"
HEAD ANGLE SETTING................ 45 DEG
CHUCK SPEED RANGE................. 6-120 RPM
HEAD STROKE,FEED RATE............. 0-80 IPM
CROSS FEED RATE,RANGE(IPD)........ .0002 - .003
TARRY PERIOD...................... 0 - 14 SECONDS
GRINDING WHEEL HP................. 10
MAX SPINDLE SPEED................. 4,000 RPM

Buy Machines

36" SPRINGFIELD UNIVERSAL ID/OD VERTICAL SPINDLE GRINDER: STOCK #16986

Stock # #16986

Share Machine
Print Details
Download Images

Machine Specifications

MODEL............................. 36-E-CR
SERIAL............................ 74065
WORK TABLE DIAMETER............... 36"
MAXIMUM SWING INSIDE GUARDS....... 44"
NOMINAL HOLE ABILITY.............. 18"
MAX HEAD STROKE................... 36"
DISTANCE UNDER RAIL............... 25-1/2"
HEAD ANGLE SETTING................ 45 DEG
CHUCK SPEED RANGE................. 6-120 RPM
HEAD STROKE,FEED RATE............. 0-80 IPM
CROSS FEED RATE,RANGE(IPD)........ .0002 - .003
TARRY PERIOD...................... 0 - 14 SECONDS
GRINDING WHEEL HP................. 10
MAX SPINDLE SPEED................. 4,000 RPM
