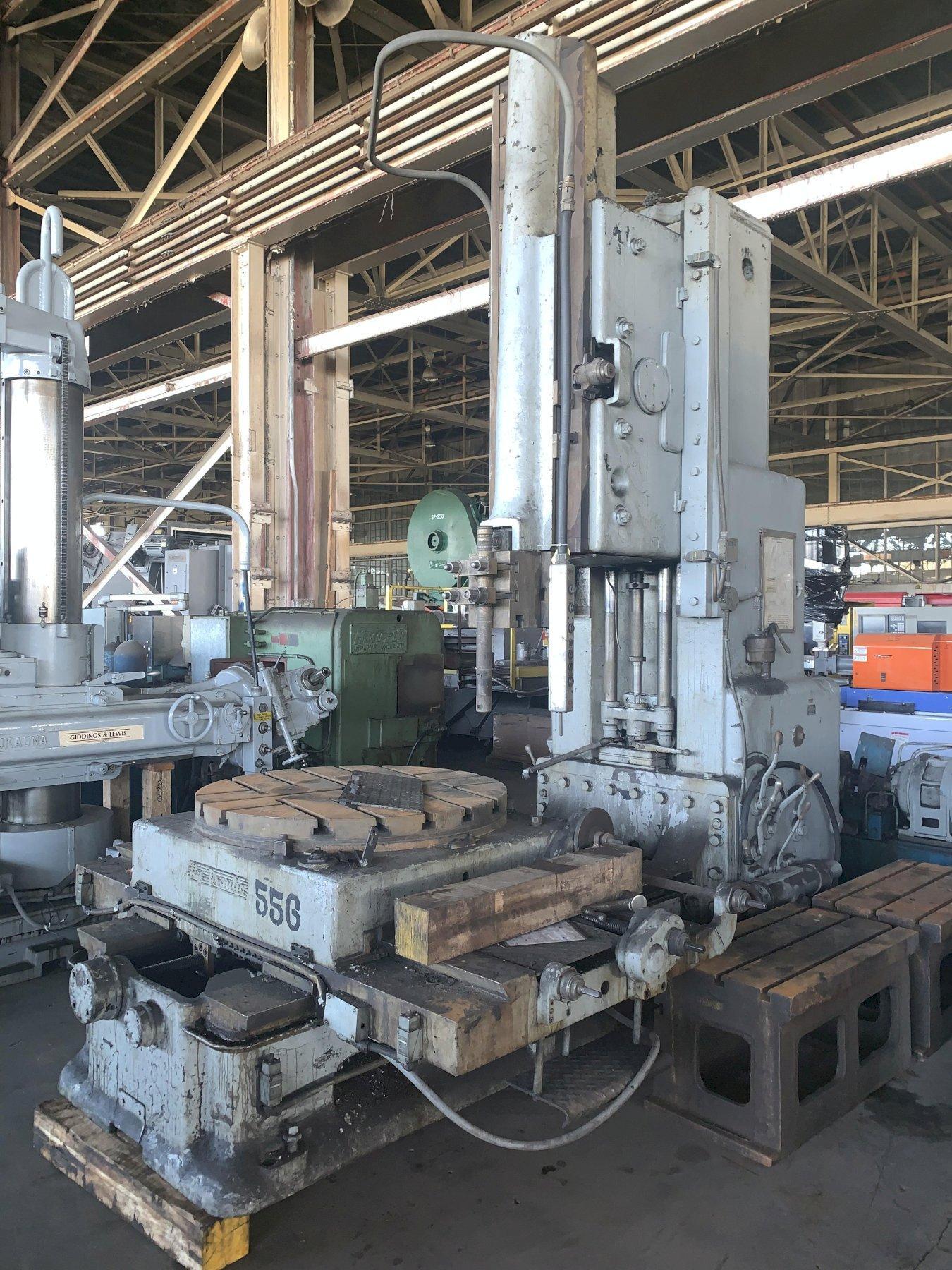

36" ROCKFORD HYDRAULIC VERTICAL SLOTTER: STOCK #11230

Stock #: 11230

Equipped With

MODEL ............................. SL
STROKE ............................ 6" TO 36"
TABLE DIAMETER (T-SLOTTED) ........ 42"
HEIGHT UNDER RAM GUIDE ............ 40"
RAM GUIDE VERTICAL ADJUSTMENT ..... 16"
TABLE TO TOOL HEAD (MAX.) ......... 54"
LONGITUDINAL TABLE TRAVEL ......... 42"
CROSS TABLE TRAVEL ................ 36"
CUTTING SPEED (VARIABLE) .......... 0 TO 80 FPM
LONGITUDINAL/CROSS/ROTARY FEEDS ... .001" TO .140" PER STROKE
ANGULAR RAM ADJUSTMENT ............ 0 TO 10 DEGREES
PENDANT CONTROL ................... YES
ONE SHOT LUBE ..................... YES
TABLE MOTOR ....................... 2 HP
MAIN MOTOR ........................ 20 HP

Buy Machines

36" ROCKFORD HYDRAULIC VERTICAL SLOTTER: STOCK #11230

Stock # 11230

Share Machine
Print Details

Machine Specifications

MODEL ............................. SL
STROKE ............................ 6" TO 36"
TABLE DIAMETER (T-SLOTTED) ........ 42"
HEIGHT UNDER RAM GUIDE ............ 40"
RAM GUIDE VERTICAL ADJUSTMENT ..... 16"
TABLE TO TOOL HEAD (MAX.) ......... 54"
LONGITUDINAL TABLE TRAVEL ......... 42"
CROSS TABLE TRAVEL ................ 36"
CUTTING SPEED (VARIABLE) .......... 0 TO 80 FPM
LONGITUDINAL/CROSS/ROTARY FEEDS ... .001" TO .140" PER STROKE
ANGULAR RAM ADJUSTMENT ............ 0 TO 10 DEGREES
PENDANT CONTROL ................... YES
ONE SHOT LUBE ..................... YES
TABLE MOTOR ....................... 2 HP
MAIN MOTOR ........................ 20 HP
