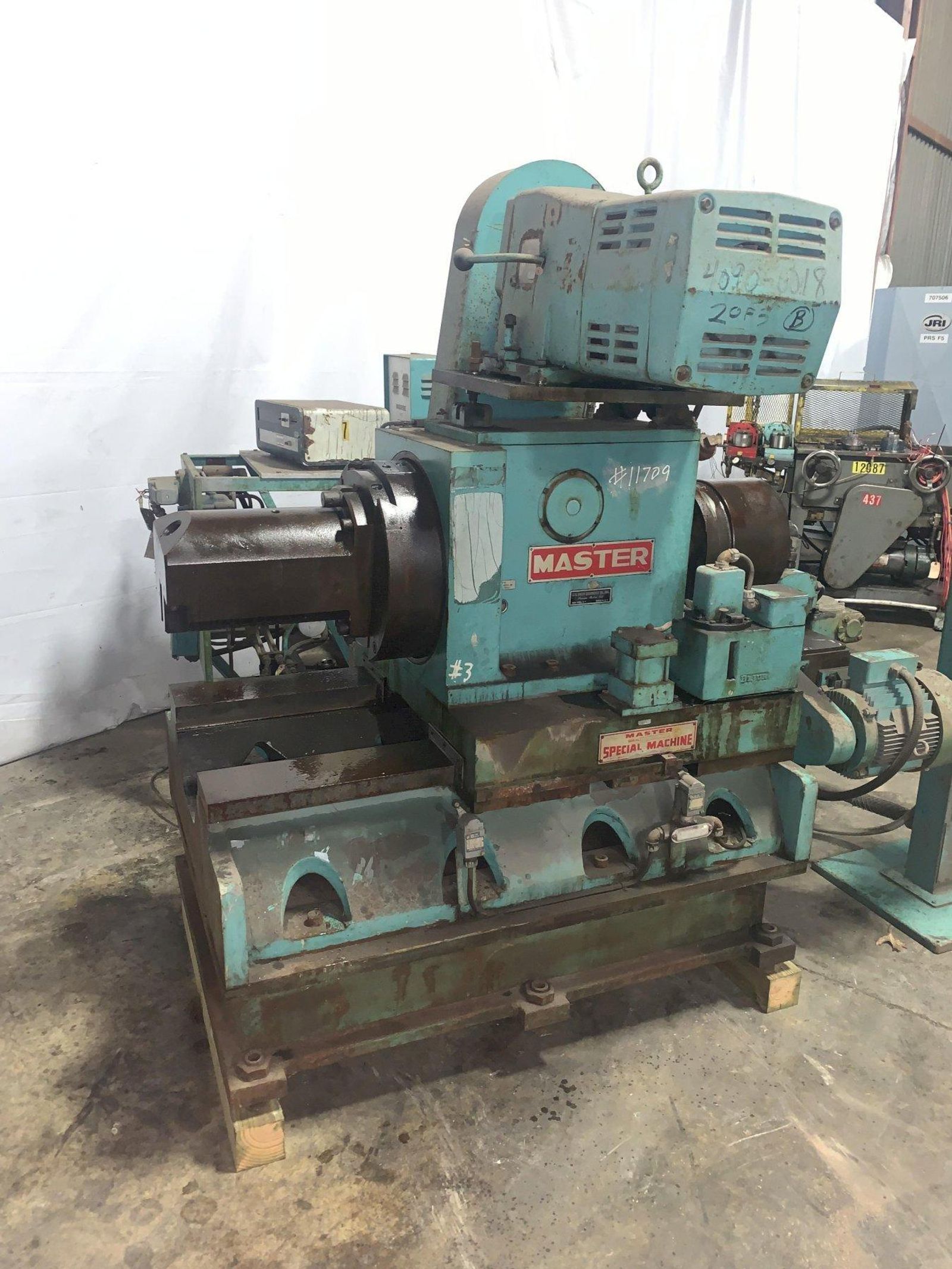

32" MASTER MACHINE PORTABLE PIPE BORING & FACING MACHINE: STOCK #12060

Stock #: 12060

Equipped With

SERIAL ................... 9072-GMC-B
MODEL .................... FD-MT-4-170
YEAR NEW ................. 1970
SWING  ................... 32"
FACING HEAD DIAMETER ..... YES
STINGER DIAMETER .........
THREADED HOLE FOR TOOL ... YES
SPINDLE SPEEDS ........... (4) 10,20,30,40
SPEED CHANGE ............. 4 SPEED GEARBOX MOTOR
SPINDLE TRAVEL ........... 18"
ADJUSTABLE TRAVEL LENGTH . YES, LIMIT SWITCHES
SPINDLE FEED RATE ........ .030" TO .600" PER MINUTE
SPINDLE RAPID TRAVERSE ... 60" PER MIN
FEED OUT OF FACING HEAD .. 2" TRAVEL LENGTH
FACING HEAD FEED ......... .030" TO 1.0" PER MIN
FACING HEAD RAPID ........ 15" PER MIN
FACING HEAD RUN MODES .... RUN / JOG
LONGITUDINAL FEED ........ FORWARD & REVERSE
HYDRAULIC UNIT ........... YES
EMERGENCY STOP BUTTON .... YES
SPINDLE MOTOR ............ 10 HP

Buy Machines

32" MASTER MACHINE PORTABLE PIPE BORING & FACING MACHINE: STOCK #12060

Stock # 12060

Share Machine
Print Details

Machine Specifications

SERIAL ................... 9072-GMC-B
MODEL .................... FD-MT-4-170
YEAR NEW ................. 1970
SWING  ................... 32"
FACING HEAD DIAMETER ..... YES
STINGER DIAMETER .........
THREADED HOLE FOR TOOL ... YES
SPINDLE SPEEDS ........... (4) 10,20,30,40
SPEED CHANGE ............. 4 SPEED GEARBOX MOTOR
SPINDLE TRAVEL ........... 18"
ADJUSTABLE TRAVEL LENGTH . YES, LIMIT SWITCHES
SPINDLE FEED RATE ........ .030" TO .600" PER MINUTE
SPINDLE RAPID TRAVERSE ... 60" PER MIN
FEED OUT OF FACING HEAD .. 2" TRAVEL LENGTH
FACING HEAD FEED ......... .030" TO 1.0" PER MIN
FACING HEAD RAPID ........ 15" PER MIN
FACING HEAD RUN MODES .... RUN / JOG
LONGITUDINAL FEED ........ FORWARD & REVERSE
HYDRAULIC UNIT ........... YES
EMERGENCY STOP BUTTON .... YES
SPINDLE MOTOR ............ 10 HP
