Machine Information

36" R-PANEL LINE: YODER ROLLFORMER, ASC UNCOILER & BRADBURY BOSS SHEAR: STOCK #16968

Stock #: 16968

Equipped With

LINE CONSISTS OF:
  1. 10,000 LB X 48" ASC UNCOILER WITH COIL CAR
  2. BRADBURY "BOSS" LEVELLER & FLYING SHEAR

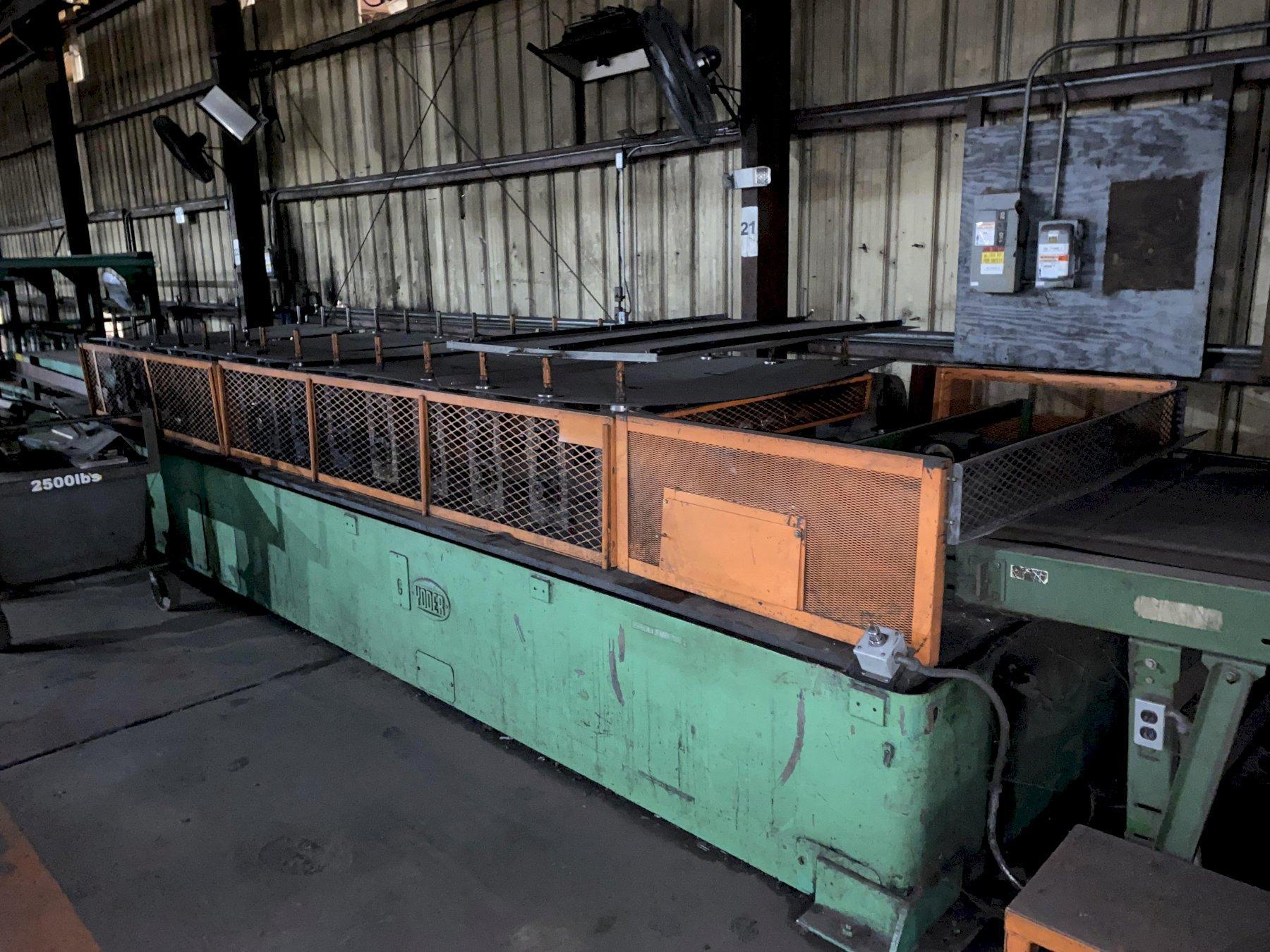

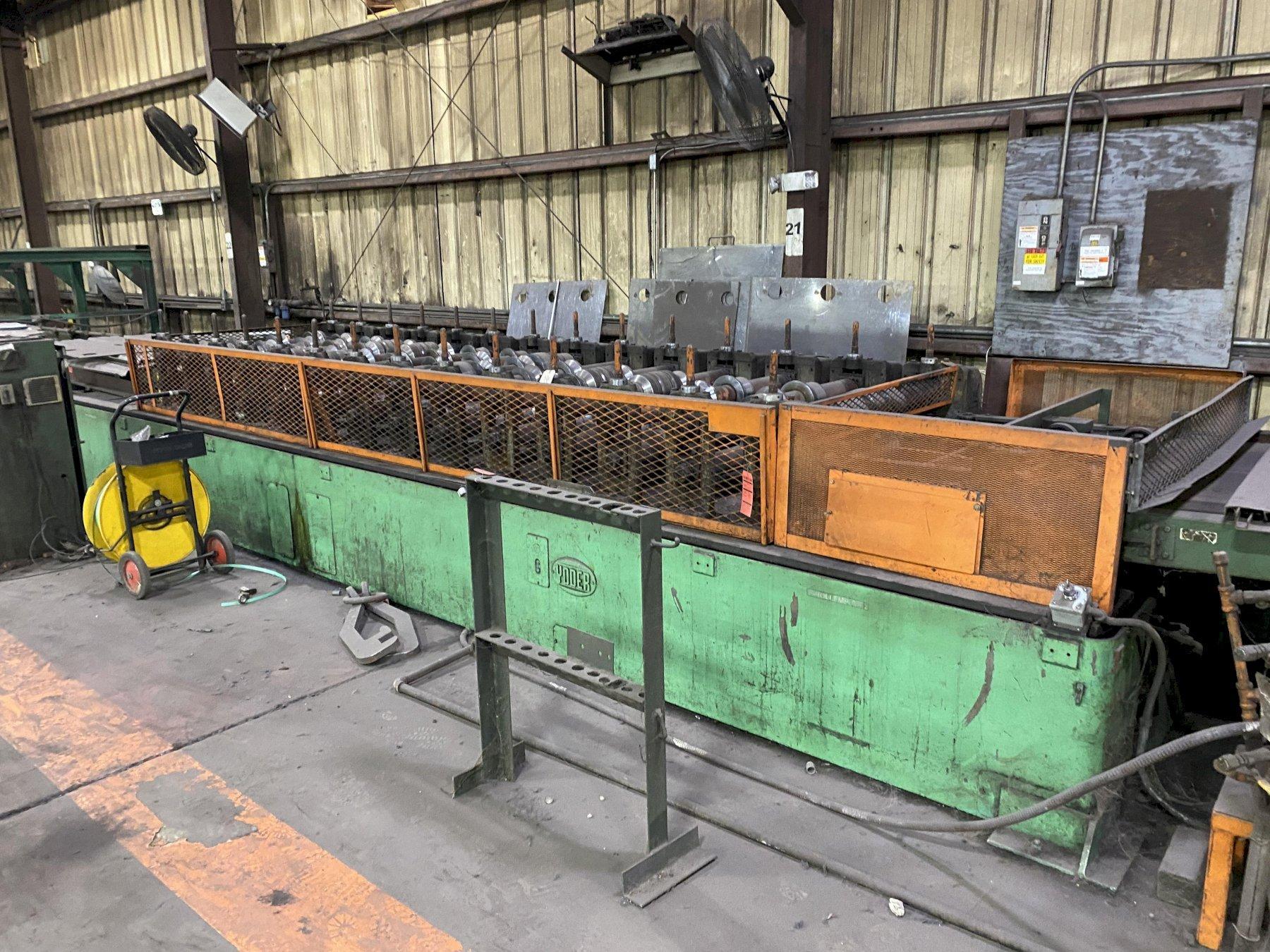

  3. 14 STAND X 3" YODER ROLLFORMER
  4. RUN-OUT STACKER TABLE
Panel shall have major ribs 1 1/4” high, spaced 12” on center for an even shadowed appearance.
The panels are reinforced between the ribs for added strength.
Each panel shall provide 36” net coverage in width.
A minimum 1/2:12 roof slope is required.
All roof panel side laps shall be at least one major rib and shall have a purlin bearing leg on the bottom section of the lap.

COMPLETE LONGSPAN ROOF & WALL PANEL ROLL FORMING LINE
NUMBER OF STANDS .......... 14
ARBOR DIAMETER ............ 3"
ROLL SPACE ................ 48"
HORIZONTAL SPACING ........ 15"
BOTTOM SPINDLE TO BASE .... 8-1/2"
VERTICAL ADJUSTMENT ....... 5" TO 10"
GEARING ................... UNEQUAL, 1.30 TO 1
2 PIECE BASE .............. YES
MOTOR ..................... 50 HP
