SERIAL ................................ 272-68155

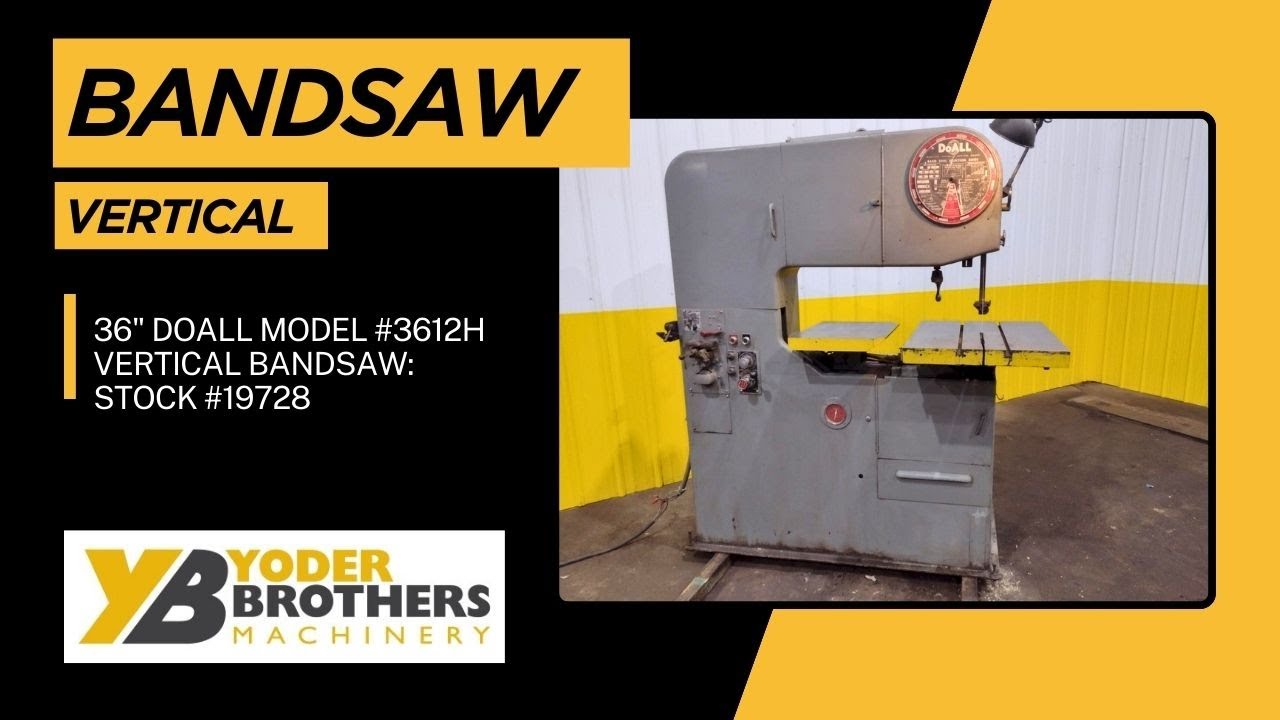

MODEL ................................. 3612-H
THROAT BAND TO COLUMN.................. 35-1/2"
MAXIMUM WORK HEIGHT.................... 12"
BAND WIDTH CAPACITY.................... 1/16" TO 1"
BAND LENGTH:
2 WHEELS............................... 125"
3 WHEELS............................... 174"
TABLE SIZE OF FRONT TABLE.............. 24" X 30-1/2"
TABLE SIZE OF REAR TABLE............... 16-3/4" X 20-1/4"
VARIABLE SPEED DRIVE, INF. VARIABLE.... 50 to 5200 FPM
TABLE TILT............................. 45 DEG. RIGHT/10 DEG./LEFT
DRIVE MOTOR ........................... 2 HP
| Specifications | ||
|---|---|---|
| Dimensions | 46"W X 70"L X 78"H | |
| Weight | 1950 ounces | |
Brand
DOALL
Type
Saws, Band, Vertical
Stock No.
19728
 |
419-269-2000 |
Stock #: 19728
SERIAL ................................ 272-68155
MODEL ................................. 3612-H
THROAT BAND TO COLUMN.................. 35-1/2"
MAXIMUM WORK HEIGHT.................... 12"
BAND WIDTH CAPACITY.................... 1/16" TO 1"
BAND LENGTH:
2 WHEELS............................... 125"
3 WHEELS............................... 174"
TABLE SIZE OF FRONT TABLE.............. 24" X 30-1/2"
TABLE SIZE OF REAR TABLE............... 16-3/4" X 20-1/4"
VARIABLE SPEED DRIVE, INF. VARIABLE.... 50 to 5200 FPM
TABLE TILT............................. 45 DEG. RIGHT/10 DEG./LEFT
DRIVE MOTOR ........................... 2 HP
