SERIAL .............................. 3083
MODEL ............................... #18
TABLE CHUCK DIAMETER ................ 36"
SEGMENTED GRINDING WHEEL DIAMETER ... 20"
MAXIMUM WORK HEIGHT UNDER WHEEL ..... 11"
TABLE SPEEDS ........................ (6) 6 TO 33 RPM
VERTICAL DOWNFEED RANGE ............. .004 TO .080 IPM
MANUAL WHEEL DRESSER ................ YES
MAGNETIC CHUCK CONTROLS ............. YES
SPINDLE MOTOR ....................... 25 HORSEPOWER
| Specifications | ||
|---|---|---|
| Chuck Dia. | 36 inches | |
| Spindle (Horz/Vert) | vertical | |
| Swing | 36 inches | |
| Grinding Wheel Dia. | 18 inches | |
| CNC Control | no | |
| Dimensions | 116" X 86" X 86" | |
| Weight | 13000 pounds | |

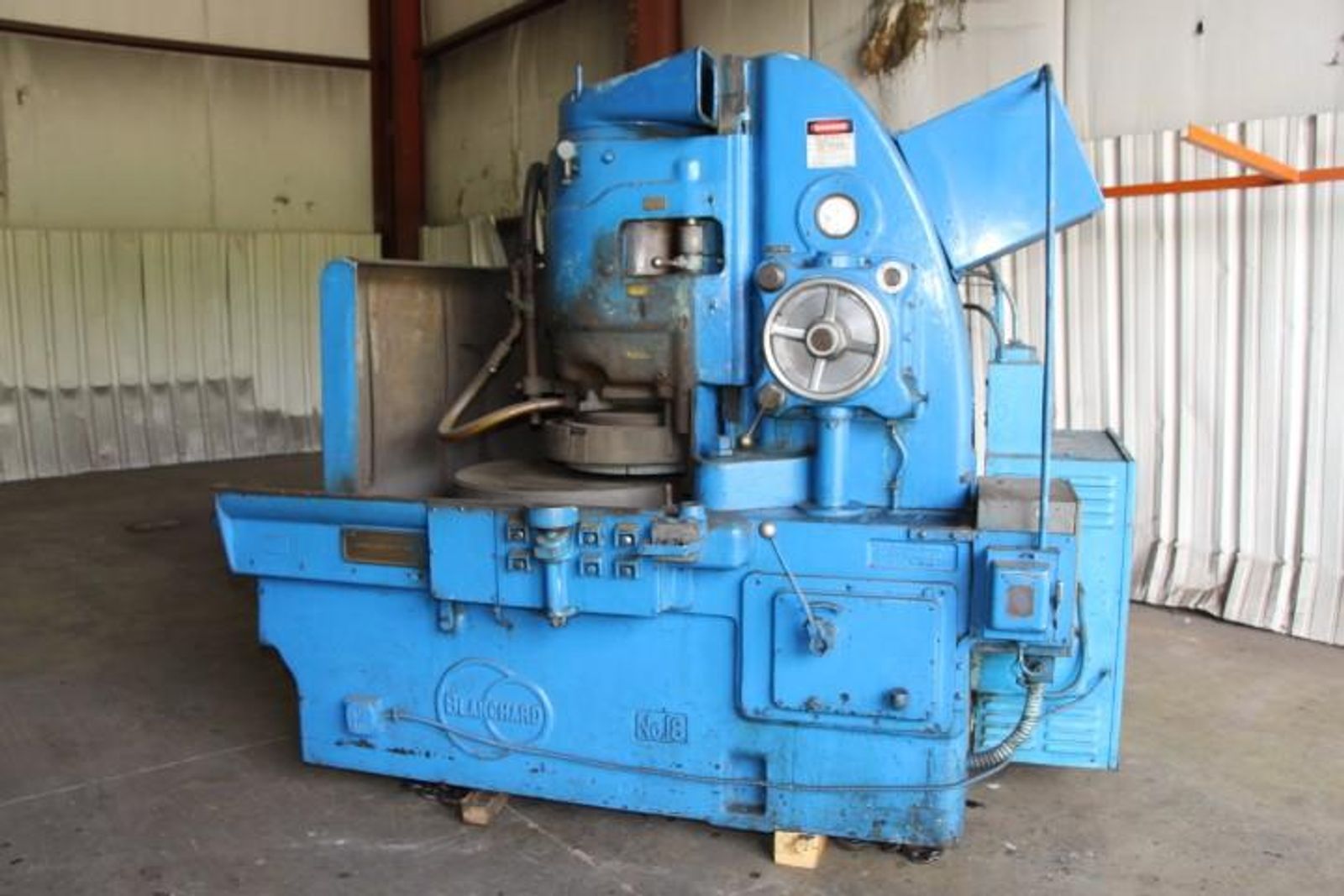

Brand
BLANCHARD
Type
Grinders, Surface, Rotary
Stock No.
10034
 |
419-269-2000 |
Stock #: 10034
SERIAL .............................. 3083
MODEL ............................... #18
TABLE CHUCK DIAMETER ................ 36"
SEGMENTED GRINDING WHEEL DIAMETER ... 20"
MAXIMUM WORK HEIGHT UNDER WHEEL ..... 11"
TABLE SPEEDS ........................ (6) 6 TO 33 RPM
VERTICAL DOWNFEED RANGE ............. .004 TO .080 IPM
MANUAL WHEEL DRESSER ................ YES
MAGNETIC CHUCK CONTROLS ............. YES
SPINDLE MOTOR ....................... 25 HORSEPOWER
