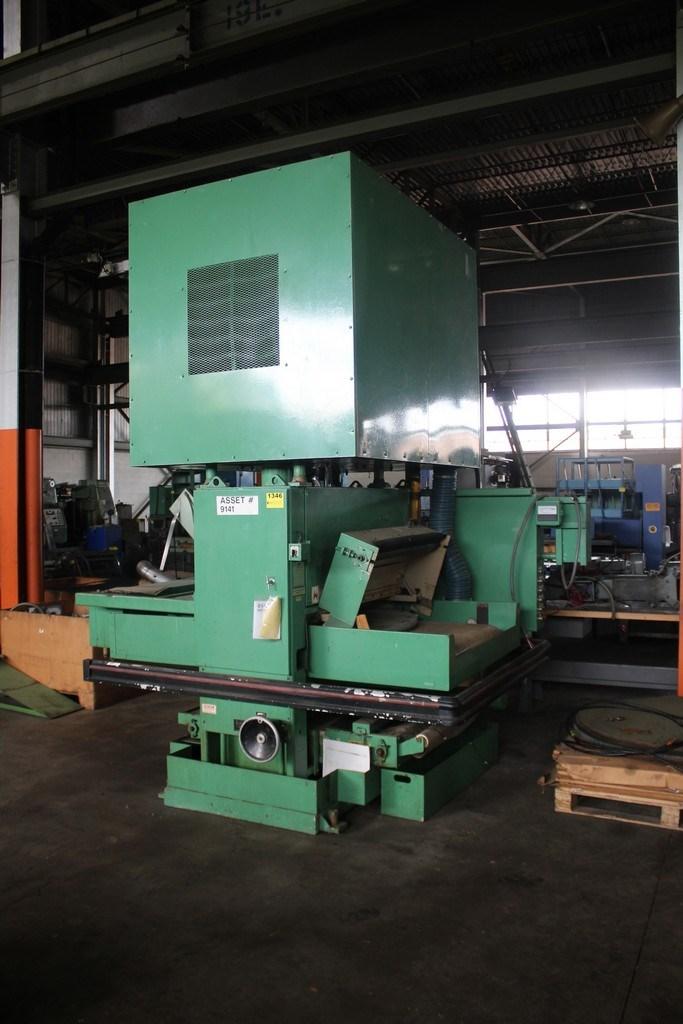

36" AEM MODEL CS360 SINGLE HEAD MULTI-DIRECTIONAL DEBURRING: STOCK 11089

Stock #: 11089

Equipped With

FINISHING AND SURFACE CONDITIONING MACHINE
ABRASIVE DISC SIZE ------------------------ 48" DIAMETER
CONVEYOR BELT SIZE ------------------------ 36" W X 72" L
WIDTH OF PERFORATIONS ON CONVEYOR BELT ---- 27"
BED OPENING ------------------------------- 0 TO 5"
DISC SPEED, VARIABLE, AT DISC PERIPHERY --- 4000 SFPM
VARIABLE SPEED CONVEYOR DRIVE ------------- 5 TO 25 FPM
MAIN DRIVE MOTOR -------------------------- 7-1/2 HP
PRESENT ELECTRICAL ARRANGEMENTS ----------- 230/460/3/60


EQUIPPED WITH ---
VARIABLE SPEED VACUUM BELT CONVEYOR
  ( RUBBER PERFORATED BELT )
BOTTOM MOUNTED COOLANT RECIRCULATING SYSTEM WITH PAPER FILTRATION
BED ADJUSTMENT ( POWER )
LOAD METER
AIR KNIFE DRYER
DIGITAL THICKNESS INDICATOR

Buy Machines

36" AEM MODEL CS360 SINGLE HEAD MULTI-DIRECTIONAL DEBURRING: STOCK 11089

Stock # 11089

Share Machine
Print Details

Machine Specifications

FINISHING AND SURFACE CONDITIONING MACHINE
ABRASIVE DISC SIZE ------------------------ 48" DIAMETER
CONVEYOR BELT SIZE ------------------------ 36" W X 72" L
WIDTH OF PERFORATIONS ON CONVEYOR BELT ---- 27"
BED OPENING ------------------------------- 0 TO 5"
DISC SPEED, VARIABLE, AT DISC PERIPHERY --- 4000 SFPM
VARIABLE SPEED CONVEYOR DRIVE ------------- 5 TO 25 FPM
MAIN DRIVE MOTOR -------------------------- 7-1/2 HP
PRESENT ELECTRICAL ARRANGEMENTS ----------- 230/460/3/60


EQUIPPED WITH ---
VARIABLE SPEED VACUUM BELT CONVEYOR
  ( RUBBER PERFORATED BELT )
BOTTOM MOUNTED COOLANT RECIRCULATING SYSTEM WITH PAPER FILTRATION
BED ADJUSTMENT ( POWER )
LOAD METER
AIR KNIFE DRYER
DIGITAL THICKNESS INDICATOR

Specifications
Dimensions 109"-098"-136"
Weight 6000 pounds
