Machine Information

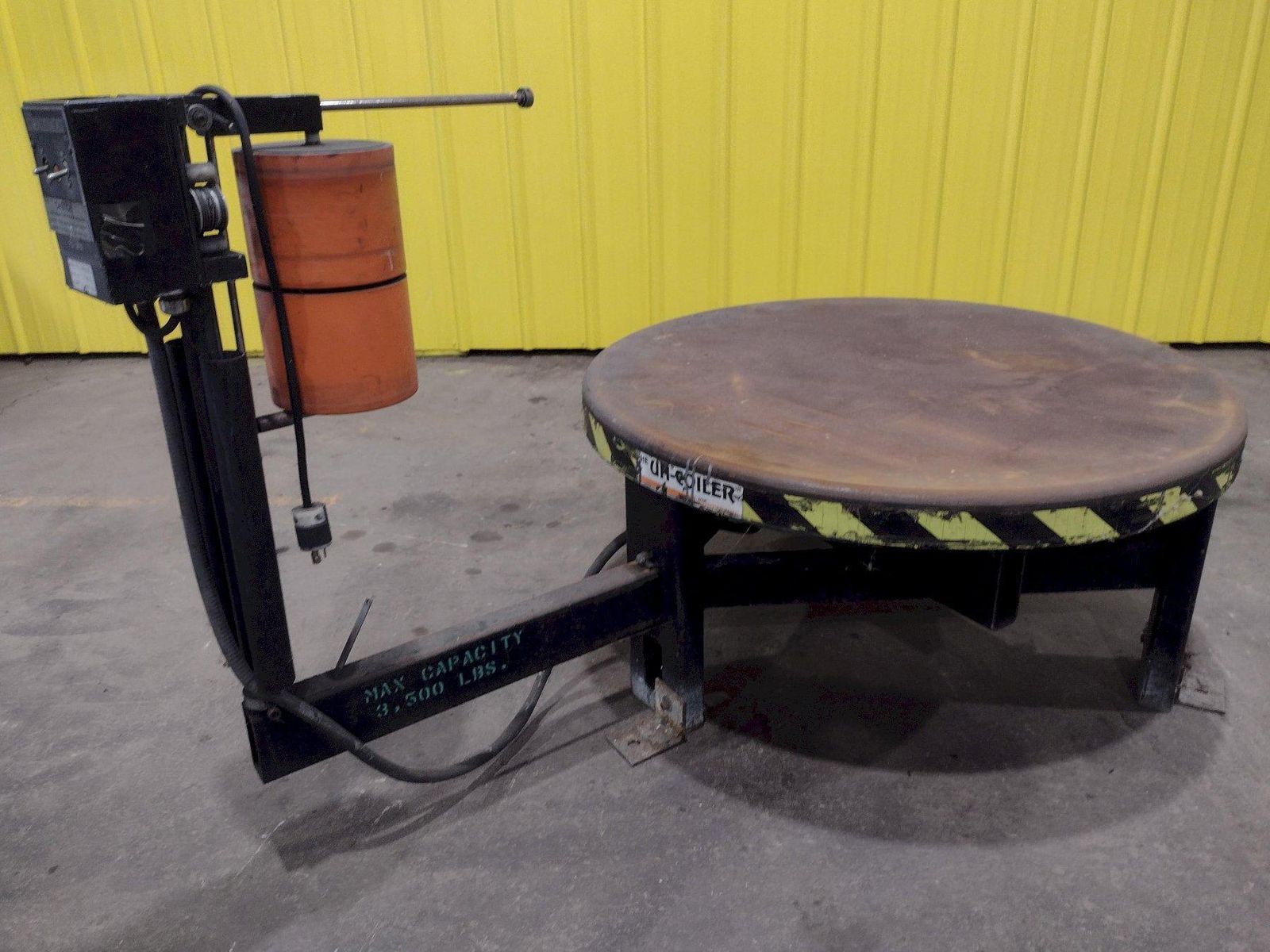

3,500 LB X 42" NORWALK INNOVATION MODEL #CR3542 STRIP & WIRE HORIZONTAL COIL REEL UNCOILER: STOCK #19536

Stock #: 19536

Equipped With

YODER BROTHERS MACHINERY LOT #........ 19536
SERIAL ............................... 422287
MODEL ................................ CR3542


CAPACITY ............................. 3500 LBS


TABLE DIAMETER ....................... 41"


MAXIMUM COIL O.D. .................... 48"


MAXIMUM COIL STACK HEIGHT ............ 40"


VARIABLE SPEED PALLET ROTATION ....... 0 TO 25 RPM


FLOOR TO TOP OF TABLE ................ 20"


FORWARD AND REVERSE .................. YES


ROTATION MOTOR, HORSEPOWER ........... 1/2

Buy Machines

3,500 LB X 42" NORWALK INNOVATION MODEL #CR3542 STRIP & WIRE HORIZONTAL COIL REEL UNCOILER: STOCK #19536

Stock # 19536

Request a Quote
Share Machine
Print Details
Make an Offer
Download Images
View All Images

Machine Specifications

YODER BROTHERS MACHINERY LOT #........ 19536
SERIAL ............................... 422287
MODEL ................................ CR3542
CAPACITY ............................. 3500 LBS
TABLE DIAMETER ....................... 41"
MAXIMUM COIL O.D. .................... 48"
MAXIMUM COIL STACK HEIGHT ............ 40"
VARIABLE SPEED PALLET ROTATION ....... 0 TO 25 RPM
FLOOR TO TOP OF TABLE ................ 20"
FORWARD AND REVERSE .................. YES
ROTATION MOTOR, HORSEPOWER ........... 1/2
