Machine Information

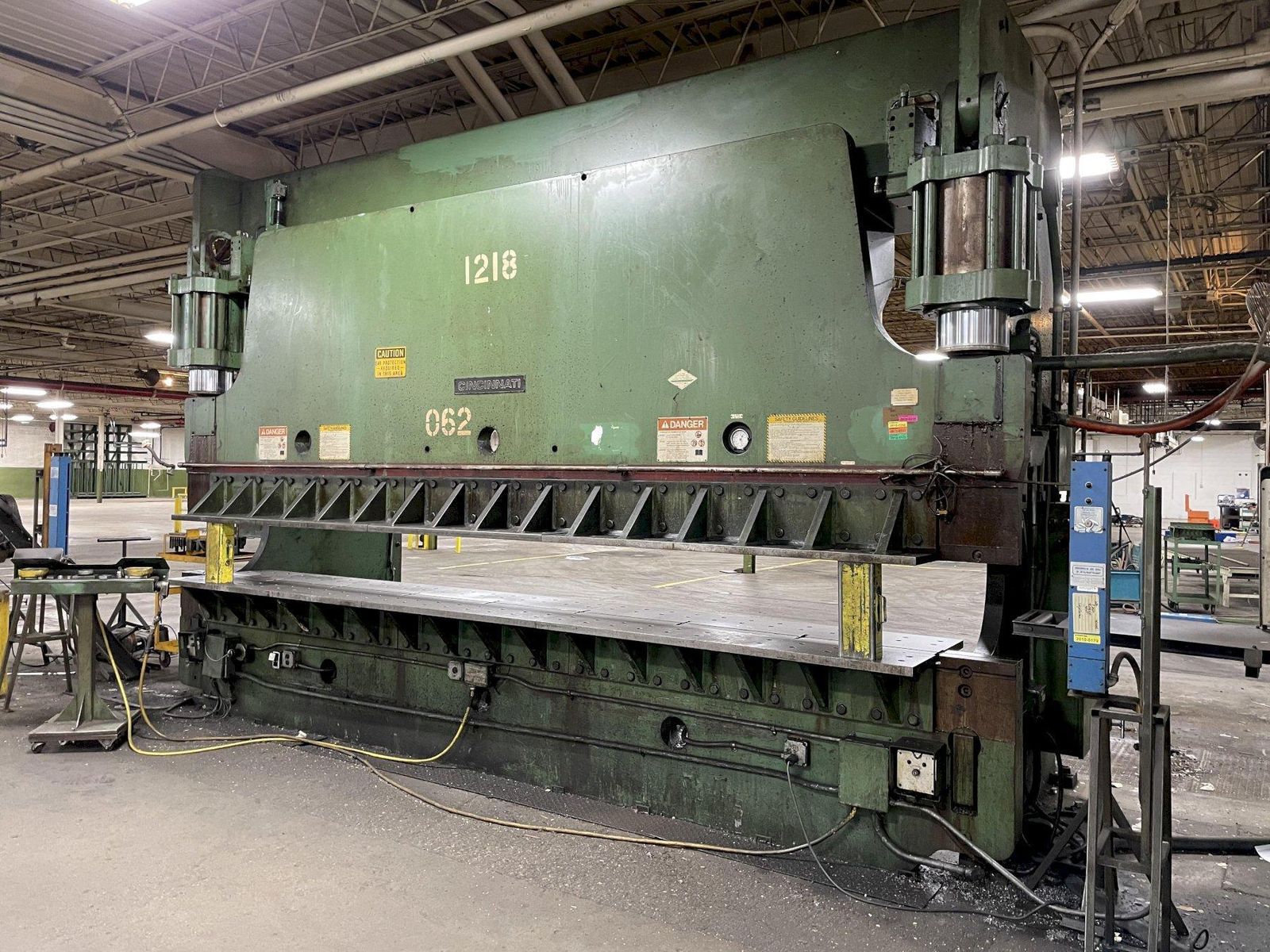

350 TON X 18' CINCINNATI MODEL #350FM-16 HYDRAULIC PRESS BRAKE WITH REMOVABLE FLANGED BED: STOCK #14570

Stock #: 14570

Equipped With

SERIAL ....................... 43279
YEAR NEW ..................... 1980


MODEL ........................ 350FM X 16


CAPACITY ..................... 350 TON


OVERALL LENGTH OF BED & RAM .. 18'


DISTANCE BETWEEN HOUSING ..... 16'9"


STROKE OF RAM ................ 12"


OPEN HEIGHT .................. 20"


CLOSED HEIGHT ................ 8"


THROAT ....................... 18"
CHANNEL PIT FOR APRON ........ 27" DEEP
TOP & BOTTOM FLANGES ......... BOLT ON, REMOVABLE
TOP FLANGES .................. 16' LONG X 27" WIDE
BOTTOMR FLANGES .............. 16' LONG X 30" WIDE


RAM SPEEDS ................... 64 IPM FAST PRESS


RAM SPEEDS ................... 27 IPM PRESSING


RAM SPEEDS ................... 51 IPM RETURN


TOP RAIL DIE CLAMPS .......... YES


LIGHT CURTAINS ............... YES


ELECTRIC FOOT PEDAL .......... YES


DUAL PALM BUTTONS CONTROLS ... YES
E-STOP BUTTON ................ YES


MOTOR ........................ 40 HP

Buy Machines

350 TON X 18' CINCINNATI MODEL #350FM-16 HYDRAULIC PRESS BRAKE WITH REMOVABLE FLANGED BED: STOCK #14570

Stock # 14570

Request a Quote
Share Machine
Print Details
Make an Offer
Download Images
View All Images

Machine Specifications

SERIAL ....................... 43279
YEAR NEW ..................... 1980
MODEL ........................ 350FM X 16
CAPACITY ..................... 350 TON
OVERALL LENGTH OF BED & RAM .. 18'
DISTANCE BETWEEN HOUSING ..... 16'9"
STROKE OF RAM ................ 12"
OPEN HEIGHT .................. 20"
CLOSED HEIGHT ................ 8"
THROAT ....................... 18"
CHANNEL PIT FOR APRON ........ 27" DEEP
TOP & BOTTOM FLANGES ......... BOLT ON, REMOVABLE
TOP FLANGES .................. 16' LONG X 27" WIDE
BOTTOMR FLANGES .............. 16' LONG X 30" WIDE
RAM SPEEDS ................... 64 IPM FAST PRESS
RAM SPEEDS ................... 27 IPM PRESSING
RAM SPEEDS ................... 51 IPM RETURN
TOP RAIL DIE CLAMPS .......... YES
LIGHT CURTAINS ............... YES
ELECTRIC FOOT PEDAL .......... YES
DUAL PALM BUTTONS CONTROLS ... YES
E-STOP BUTTON ................ YES
MOTOR ........................ 40 HP

Specifications
Dimensions 20' X 84" X 146" HIGH
Weight 63000 pounds
